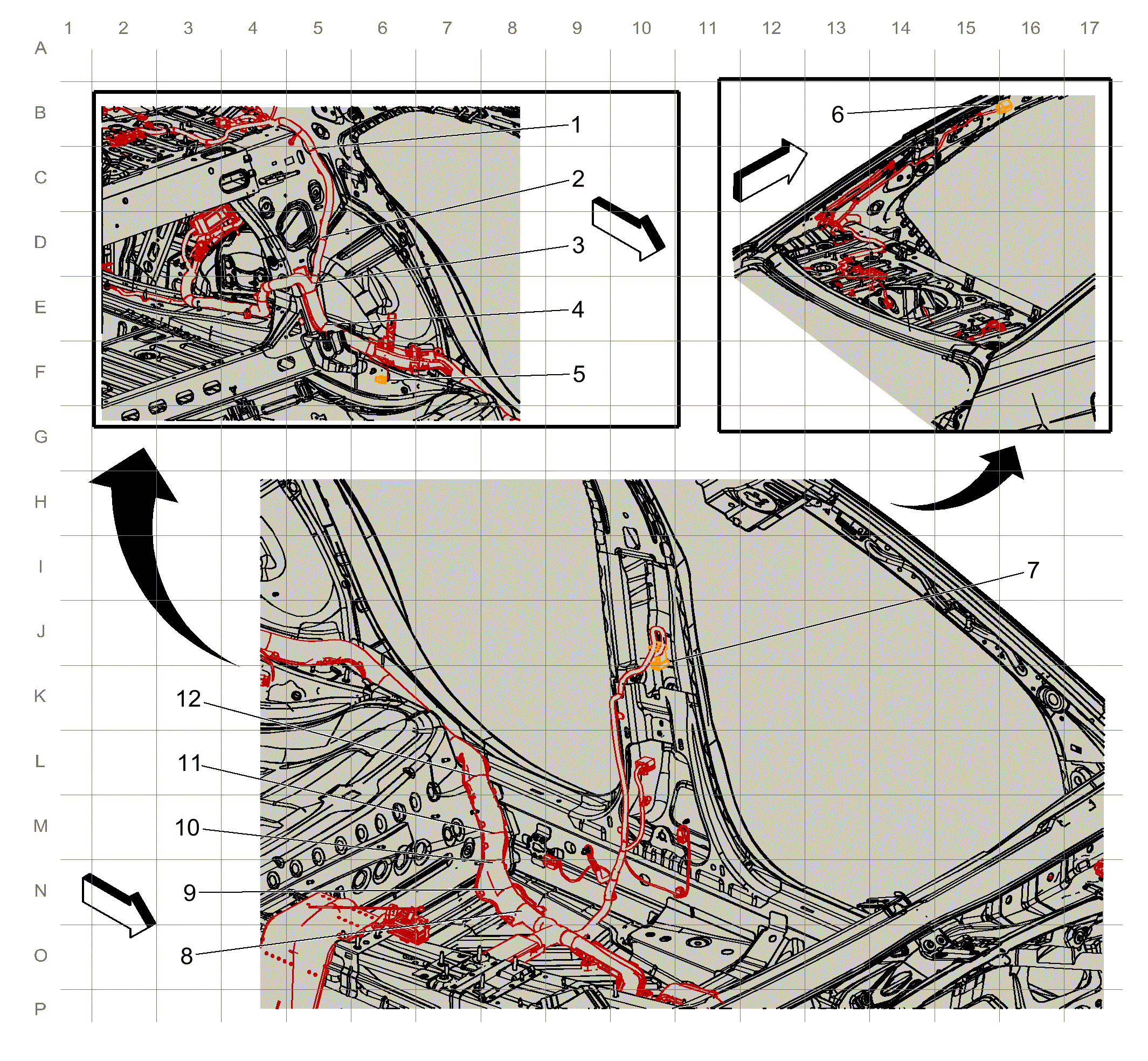

Body Harness Routing - Left Rear of Passenger Compartment (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J348 Body Harness |
| 2. J407 Body Harness |
| 3. J347 Body Harness |
| 4. J349 Body Harness |
| 5. X352 Body Harness to Left Rear Seat Side Air Bag Harness (3 cavities) (AYF) X352 Body Harness to Left Rear Seat Side Air Bag Harness (AYF) |
| 6. X338 Sunroof Harness to Body Harness (8 cavities) (CF5) X338 Sunroof Harness to Body Harness (CF5) |
| 7. X700 Body Harness to Left Rear Door Harness (24 cavities) (Sedan) X700 Body Harness to Left Rear Door Harness (Sedan) |
| 8. J341 Body Harness (Sedan) |
| 9. J342 Body Harness |
| 10. J343 Body Harness |
| 11. J344 Body Harness |
| 12. J345 Body Harness (Sedan) |
