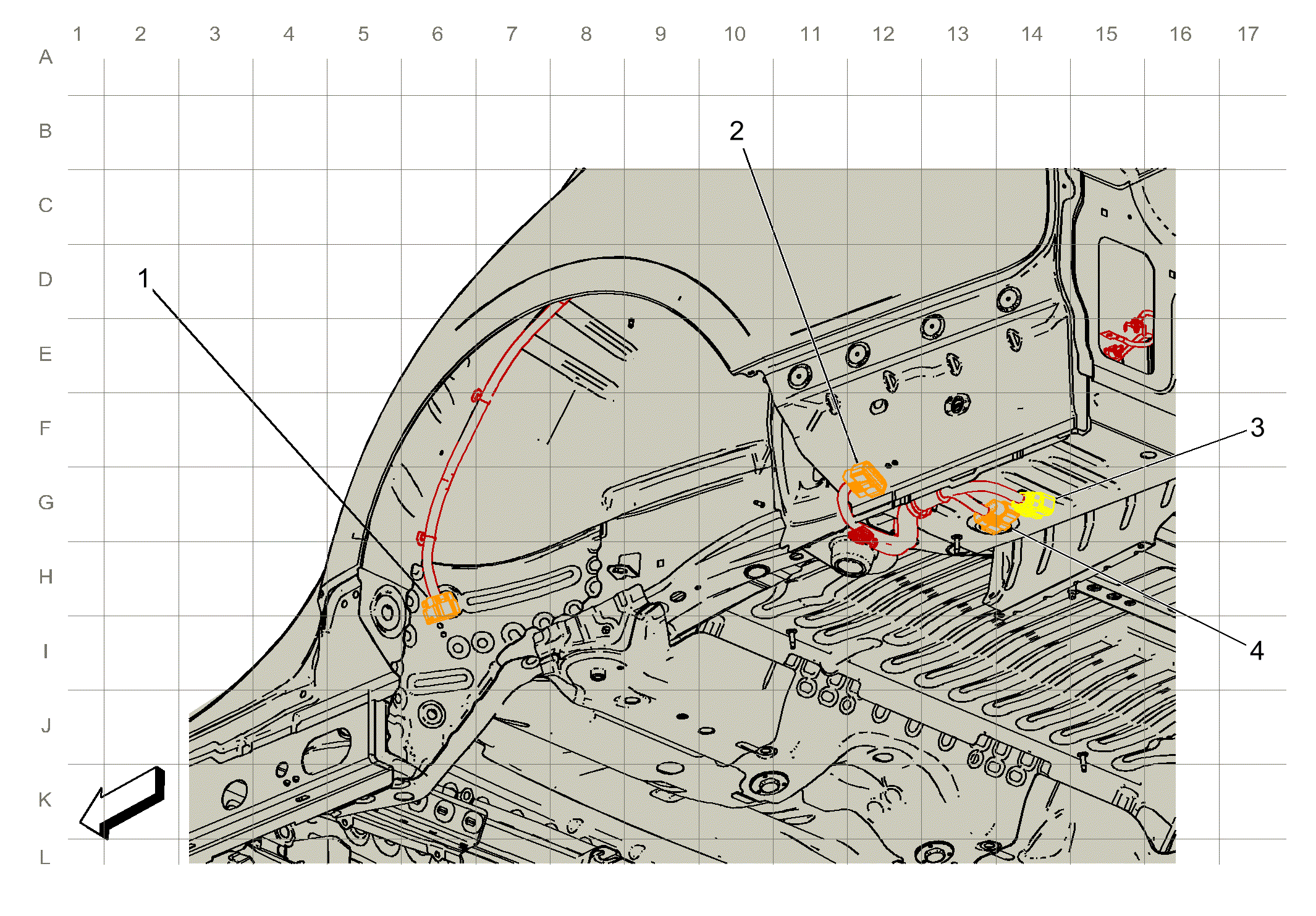

Body Harness Routing - Left Rear Underbody
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X350 Body Harness to Fuel Tank Harness (12 cavities) X350 Body Harness to Fuel Tank Harness |
| 2. X415 Body Harness to Rear Fascia Harness (20 cavities) X415 Body Harness to Rear Fascia Harness |
| 3. X403 Body Harness to Rear Chassis Harness (16 cavities) (J77) X403 Body Harness to Rear Chassis Harness (J77) |
| 4. X402 Body Harness to Rear Chassis Harness (20 cavities) X402 Body Harness to Rear Chassis Harness |
