Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.

WARNING:

Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .

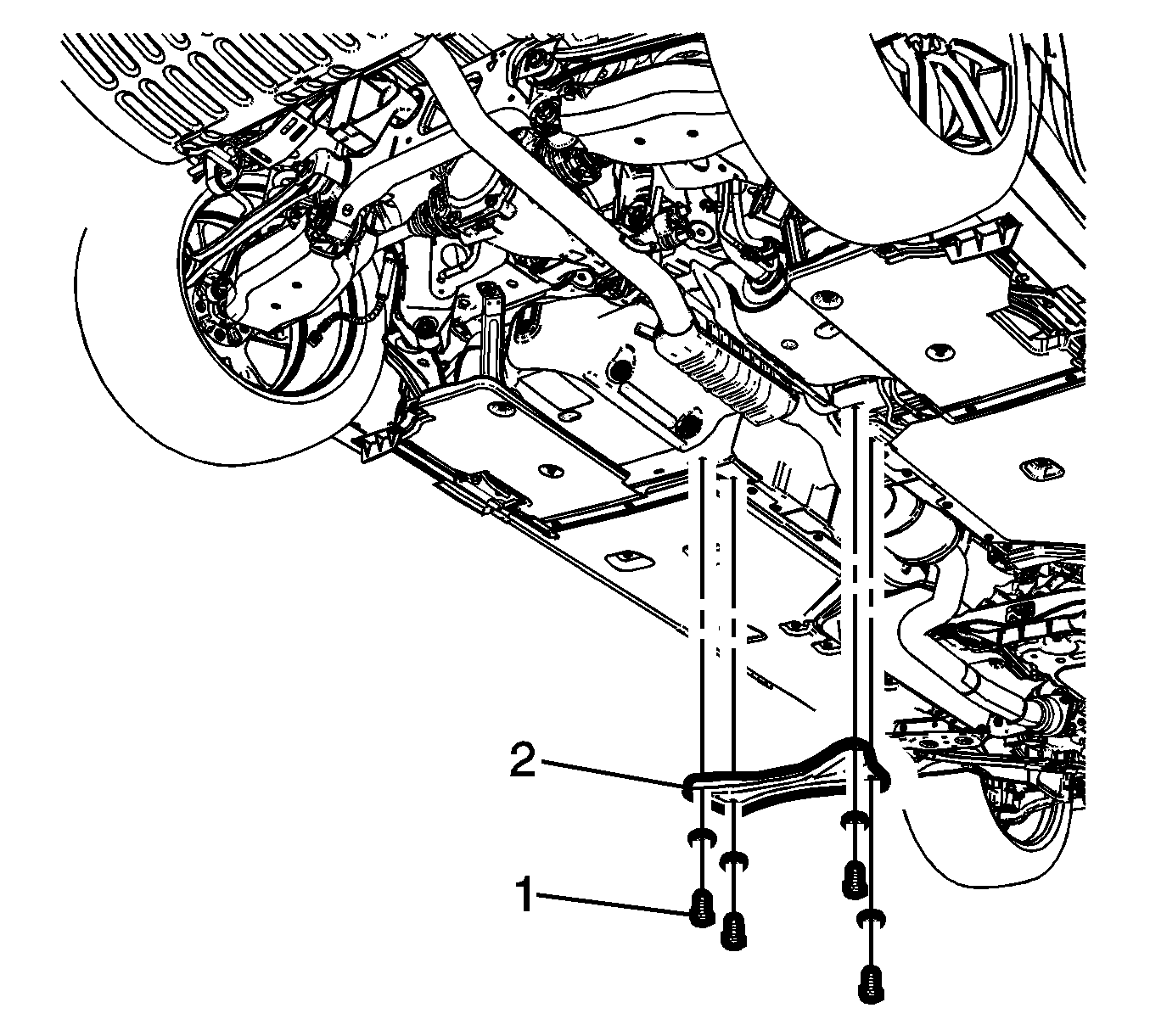

Fig 1: Floor Panel Crossbar & Fasteners

GM2790915

Courtesy of GENERAL MOTORS COMPANY

Remove the floor panel crossbar fasteners (1) and remove the floor panel crossbar (2).

Fig 2: Exhaust Muffler, Catalytic Converter & Mounting Components

GM2790901

Courtesy of GENERAL MOTORS COMPANY

Remove the catalytic converter fasteners (2) and detach the exhaust muffler (1) from the catalytic converter (4).
Discard the exhaust gasket (3).
Support the front muffler exhaust pipe with mechanics wire.

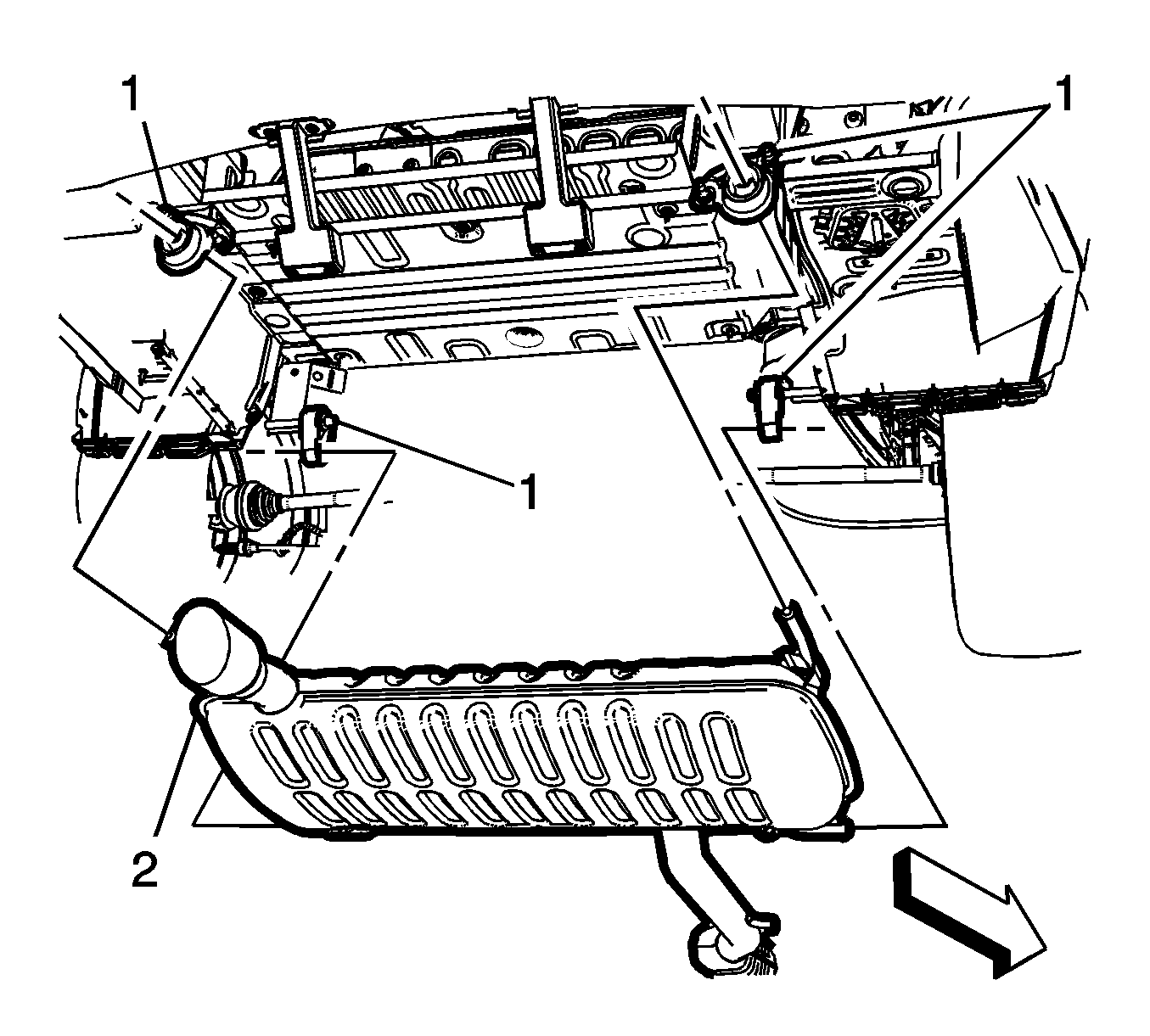

Fig 3: Exhaust Muffler & Isolators

GM2790917

Courtesy of GENERAL MOTORS COMPANY

Remove the exhaust muffler (2) from the exhaust isolators (1).

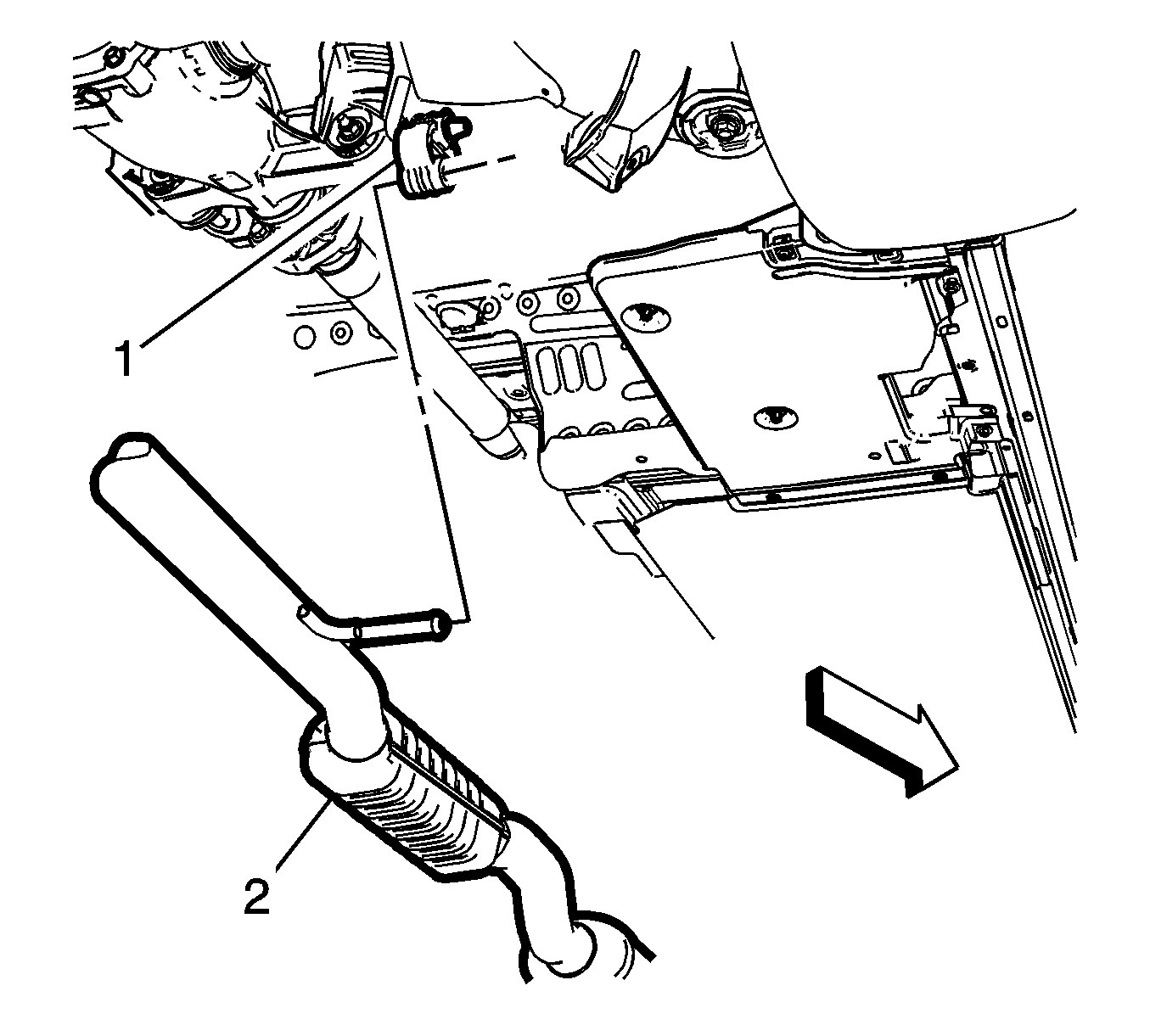

Fig 4: Exhaust Muffler & Isolator

GM2790916

Courtesy of GENERAL MOTORS COMPANY

With the aid of a second technician, remove the exhaust muffler (2) from the exhaust isolator (1).

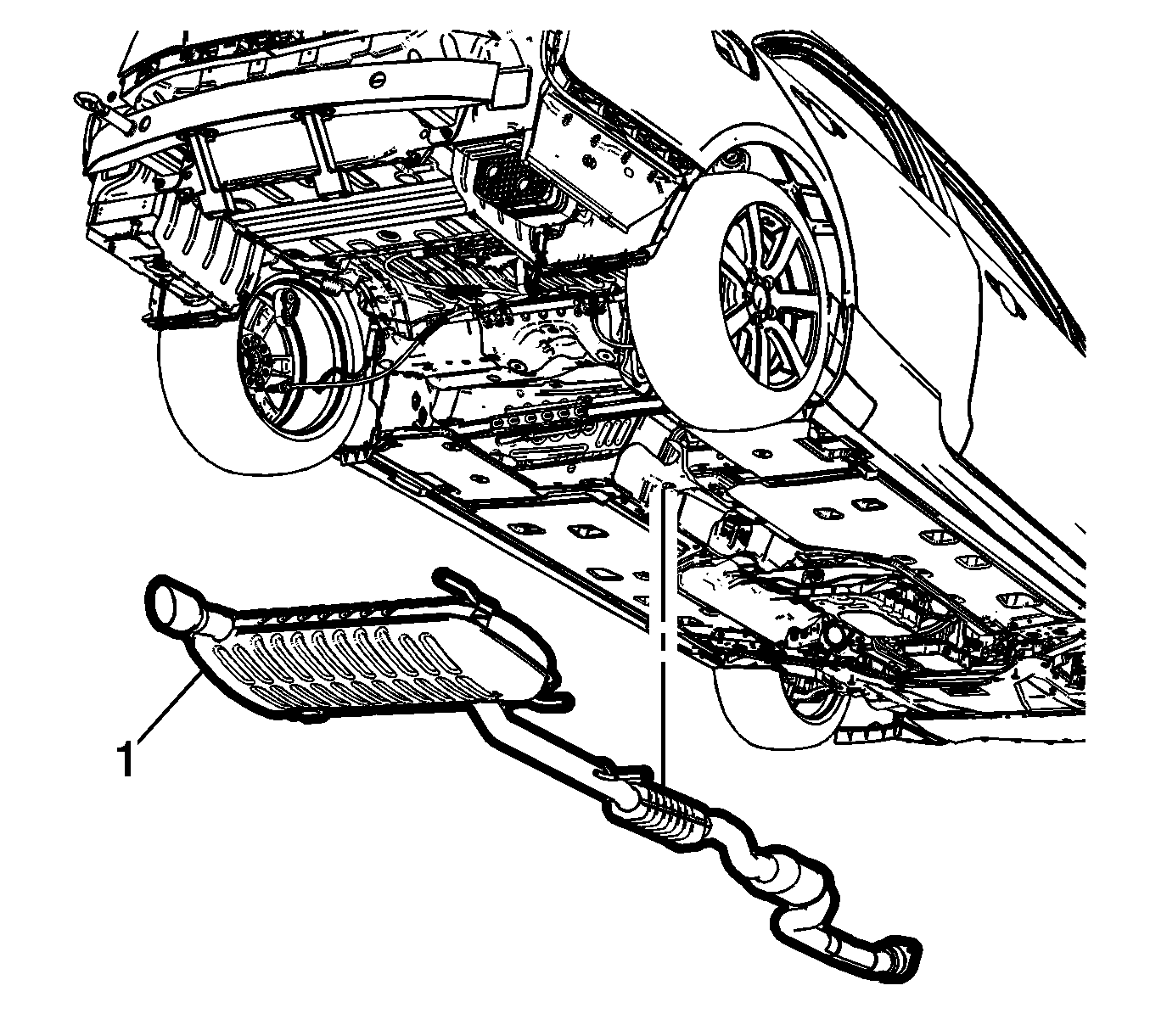

Fig 5: Exhaust Muffler

GM2791937

Courtesy of GENERAL MOTORS COMPANY

Lower the exhaust muffler (1) to the floor.
