Exhaust Manifold Brace Replacement (LTG)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

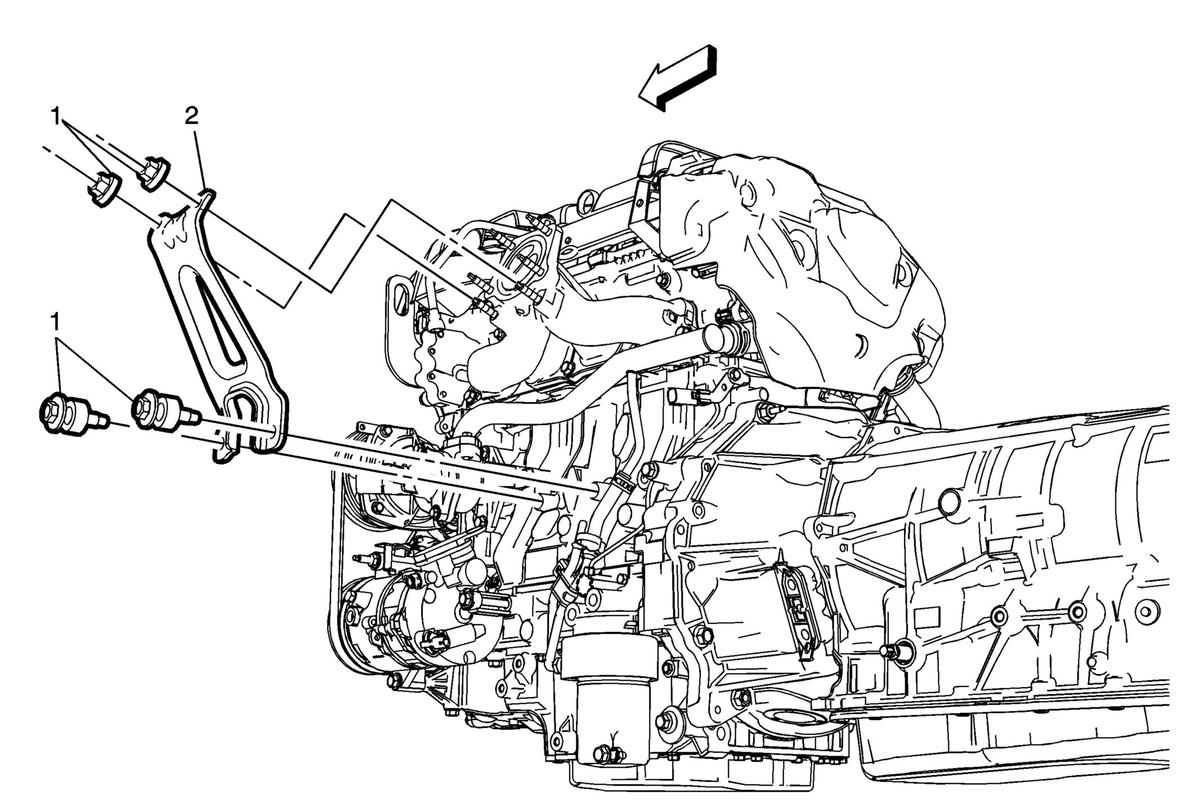

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Remove the turbocharger. Refer to Turbocharger Replacement
.Refer to Hot Exhaust System Warning . |
|
| 1 | Exhaust Manifold Brace Fasteners (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 2 | Exhaust Manifold Brace |
