Exhaust Control Valve Actuator Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

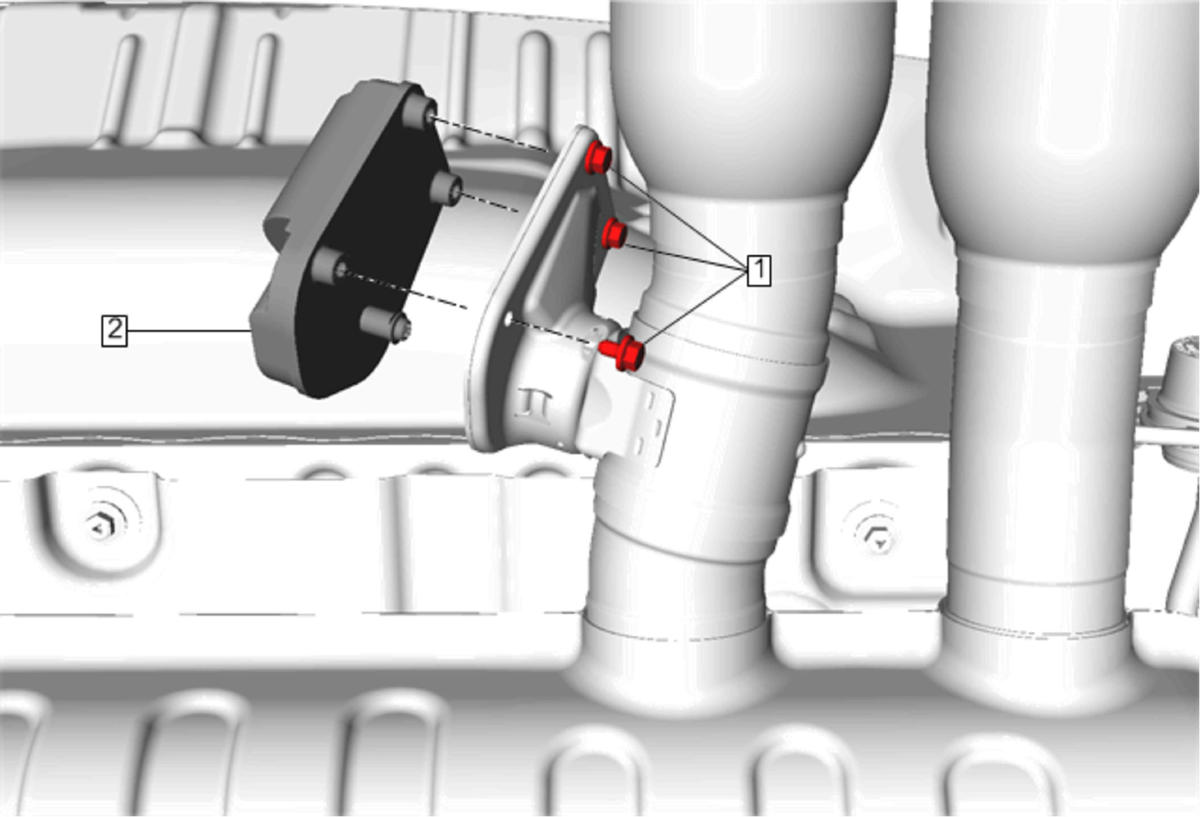

Fig 1: Exhaust Control Valve Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V)
1	Exhaust Control Valve Actuator Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Exhaust Control Valve Actuator Procedure Disconnect the electrical connector. Perform the exhaust flow control valve actuator re-learn procedure.

Callout

Component Name

Preliminary Procedure
Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V)

Exhaust Control Valve Actuator Fastener (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
6 N.m (53 lb in)

Exhaust Control Valve Actuator

Procedure

Disconnect the electrical connector.
Perform the exhaust flow control valve actuator re-learn procedure.
