Removal Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.
WARNING:
Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.
- Remove Intake Manifold Cover Replacement (LGX)
- Disconnect Heated Oxygen Sensor Replacement - Bank 1 Sensor 1 (LGX)
- Disconnect Heated Oxygen Sensor Replacement - Bank 1 Sensor 2 (LGX)
- Raise and support the vehicle. Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V)

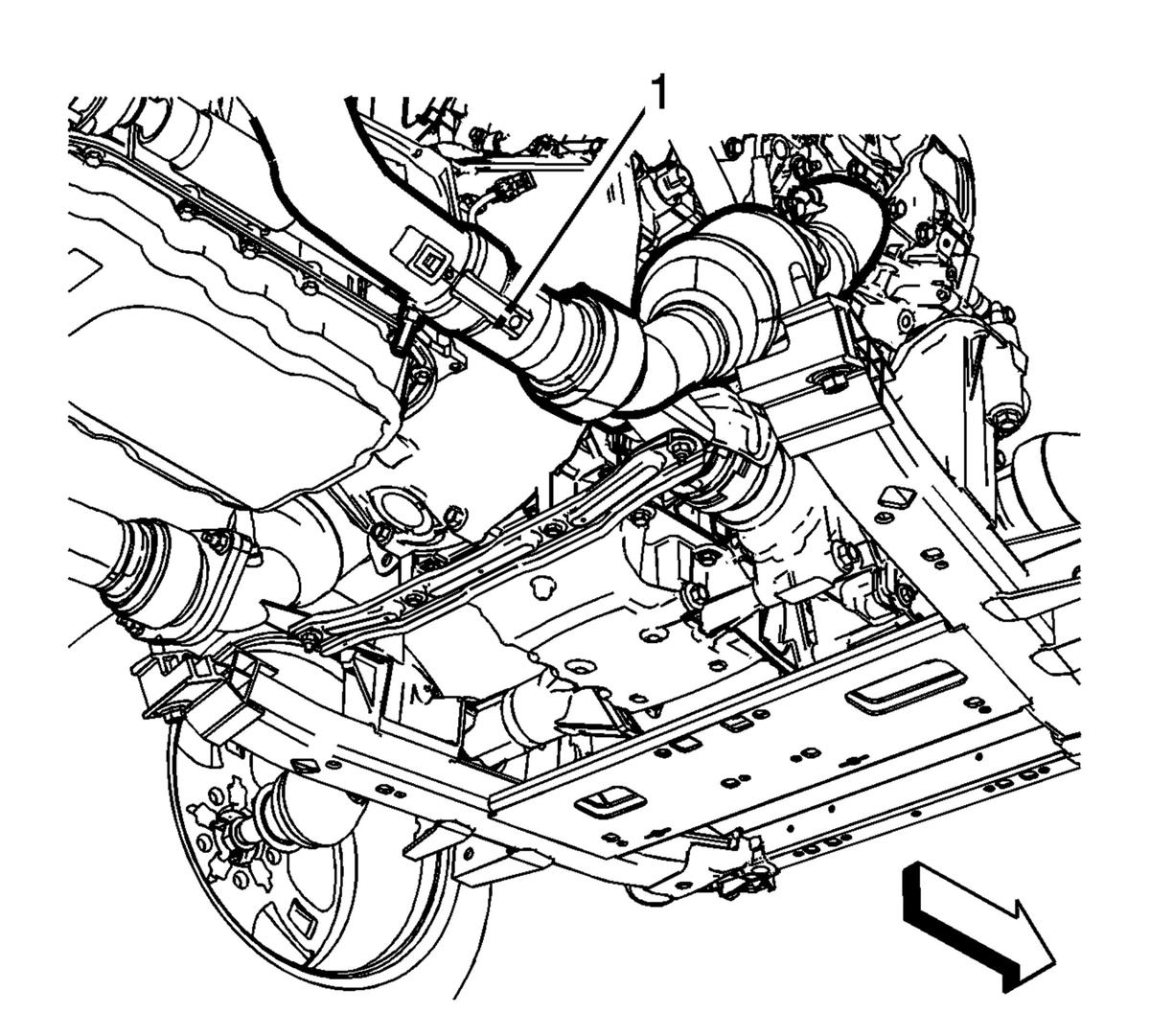

- Using a metal cut off wheel, make a cut at the clamp welded bracket shown above (1).

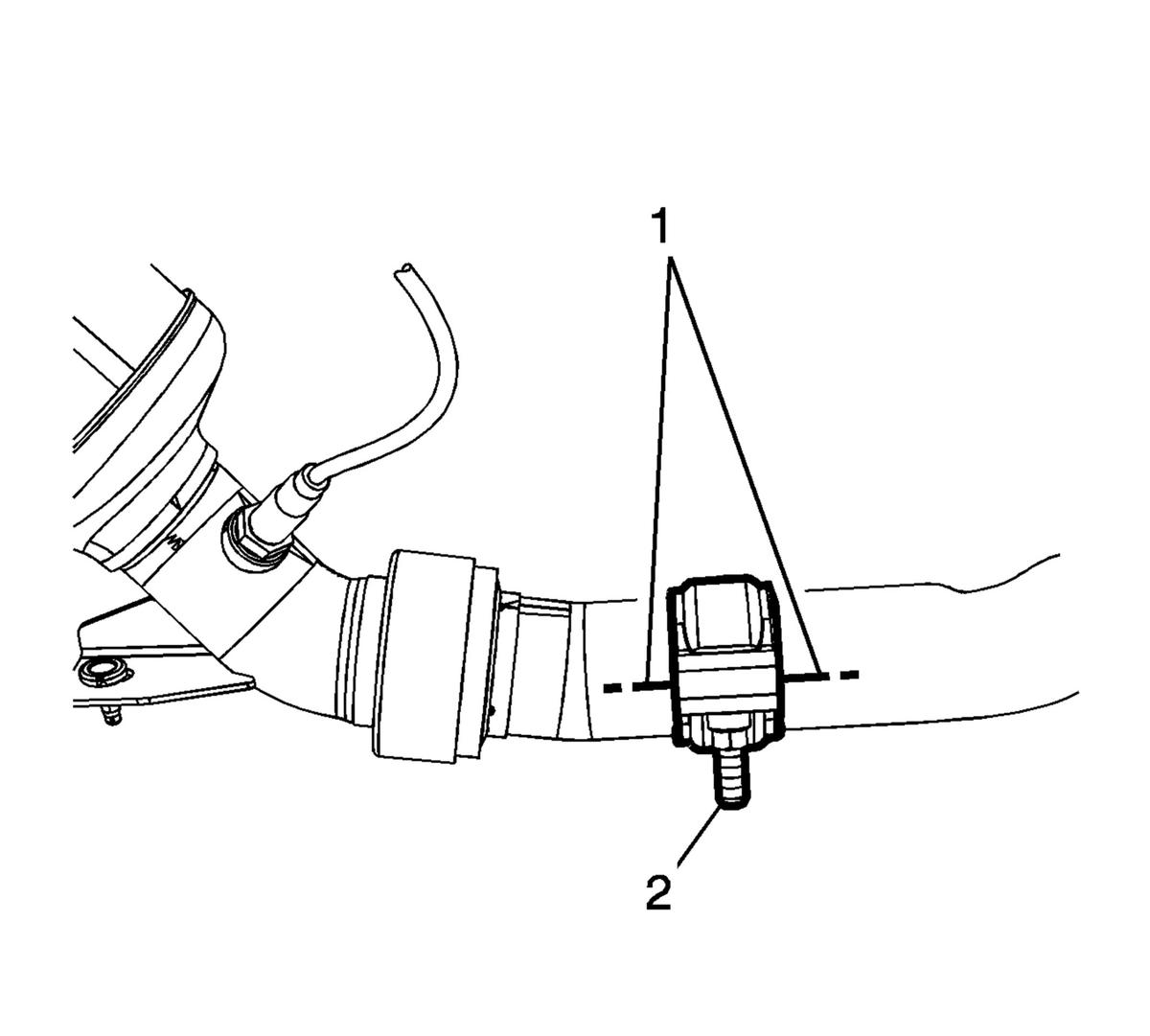

- Mark either side of the production clamp (1), for proper alignment of replacement clamp location and muffler alignment.
- Loosen the exhaust clamp fastener (2).
- Remove Catalytic Converter Nut (1)
- Separate Exhaust Muffler (4) @Catalytic Converter (3)
- DISCARD the gasket. (2)

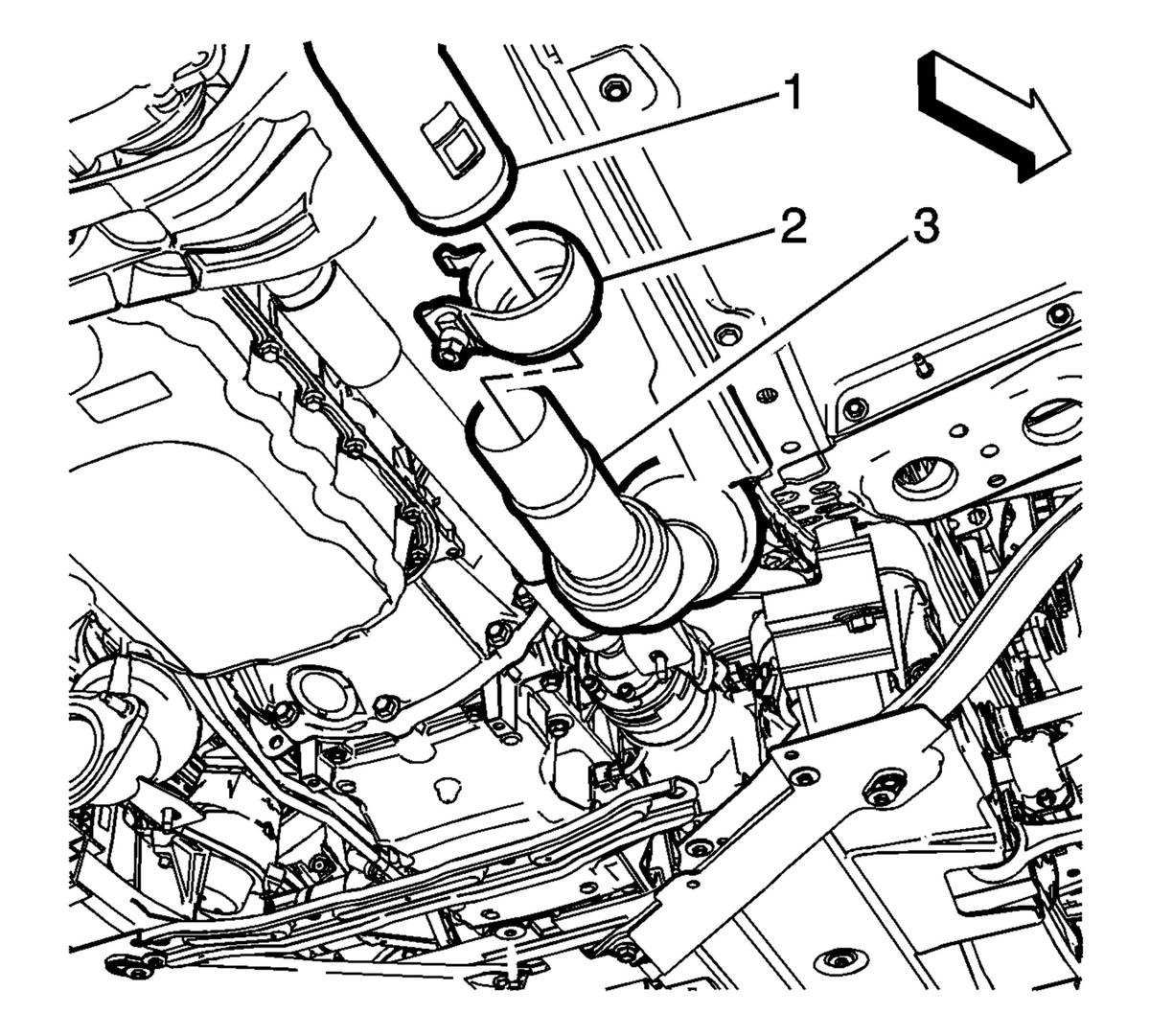

- Separate Exhaust Muffler (1) @Catalytic Converter (3)
- DISCARD the clamp.(2)

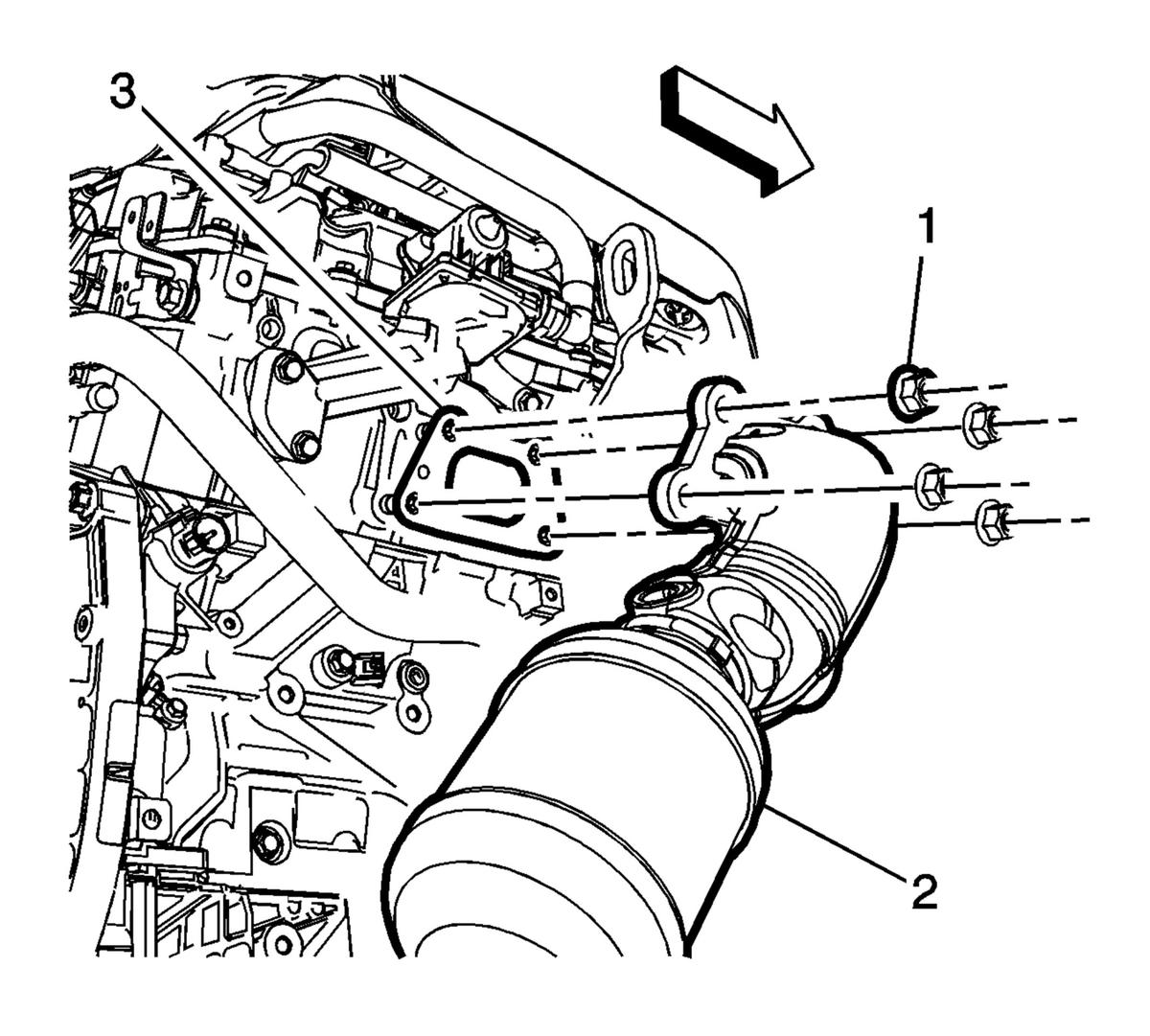

- Remove Catalytic Converter Nut (1) @Cylinder Head
- DISCARD the gasket. (3)
- If equipped, remove the catalytic converter brace bracket. Catalytic Converter Brace Bracket Replacement (LGX)
- Remove Catalytic Converter (2)
- Transfer components as necessary.
NOTE:
The production clamp has a bracket that is welded to the right catalytic converter assembly. The production clamp welded bracket must be cut in order to replace serviceable components.
NOTE:
The serviceable Torca clamp comes with the replaced right catalytic converter.
NOTE:
It may be necessary to remove the old graphite Torca clamp sleeve with emery cloth or a wire brush.
