Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.

WARNING:

Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.

  1. Remove Intake Manifold Cover. Intake Manifold Cover Replacement (LGX)
  2. Disconnect Heated Oxygen Sensor. Heated Oxygen Sensor Replacement - Bank 2 Sensor 1 (LGX)

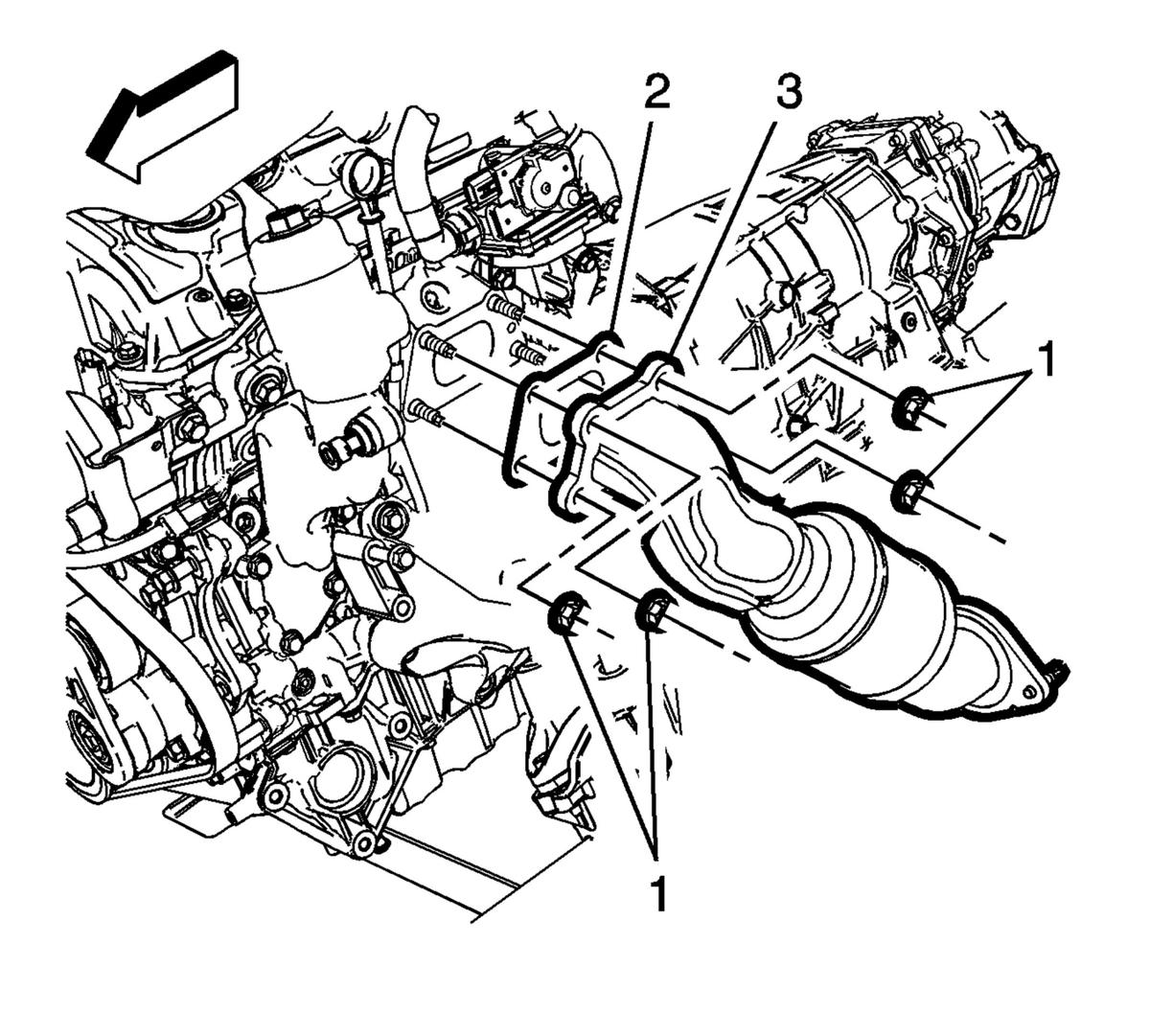

    3. Fig 1: Catalytic Converter, Gasket & Fasteners
    GM2805059Courtesy of GENERAL MOTORS COMPANY
  3. Remove Catalytic Converter Nut (1) @Cylinder Head
  4. Raise and support the vehicle. Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V)
  5. Disconnect Heated Oxygen Sensor.Heated Oxygen Sensor Replacement - Bank 2 Sensor 2 (LGX)

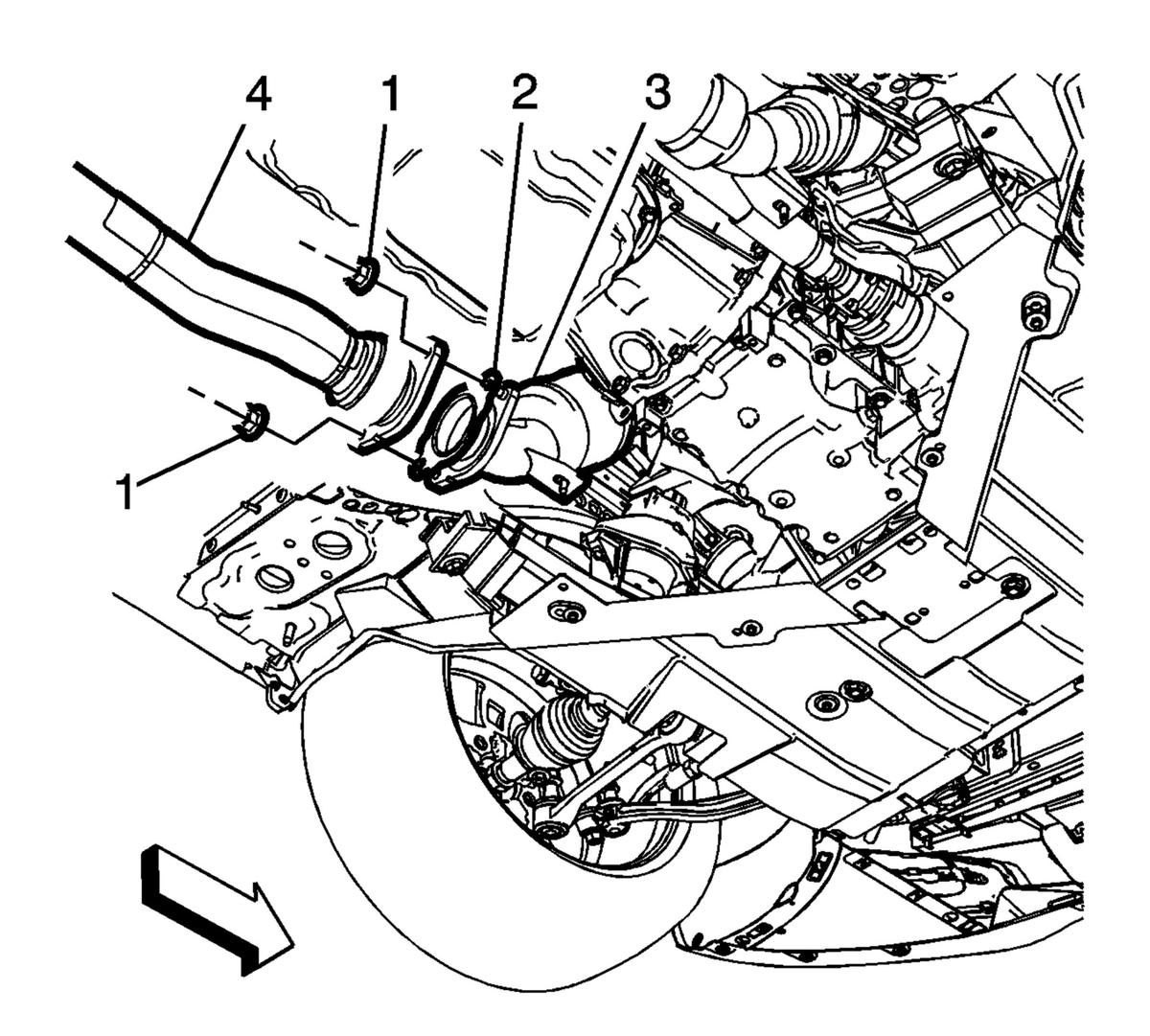

    6. Fig 2: Exhaust Muffler, Catalytic Converter & Mounting Components
    GM2788821Courtesy of GENERAL MOTORS COMPANY
  6. Remove Catalytic Converter Nut (1).
  7. Separate Exhaust Muffler (2) @Catalytic Converter
  8. DISCARD the gasket.(2)
  9. If equipped, remove the catalytic converter brace bracket. Catalytic Converter Brace Bracket Replacement (LGX)
    10. Fig 3: Catalytic Converter, Gasket & Fasteners
    GM2805059Courtesy of GENERAL MOTORS COMPANY
  10. Remove Catalytic Converter (3)
  11. DISCARD the gasket.(2)
  12. Transfer components as necessary.
