Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

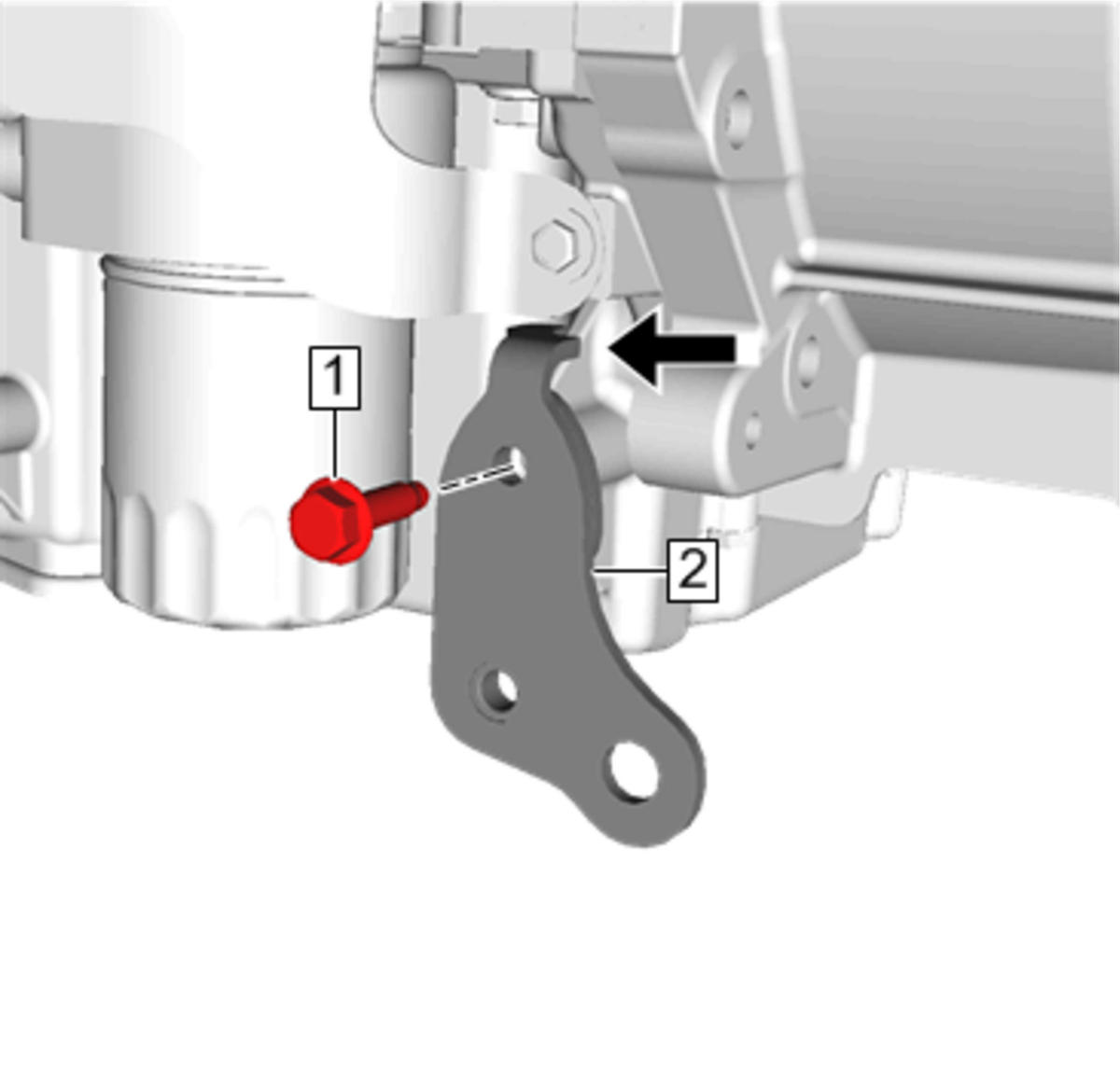

    Fig 1: Anti-Rotation Tab Of Lower Brace Bracket
    GM4620920Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    NOTE:

    Inspect the anti-rotation tab of the lower brace bracket to ensure that the tab is flush with the oil pan rib.

  1. Position the lower brace bracket (2) and tighten the bolt (1) to 22 N.m (16 lb ft).

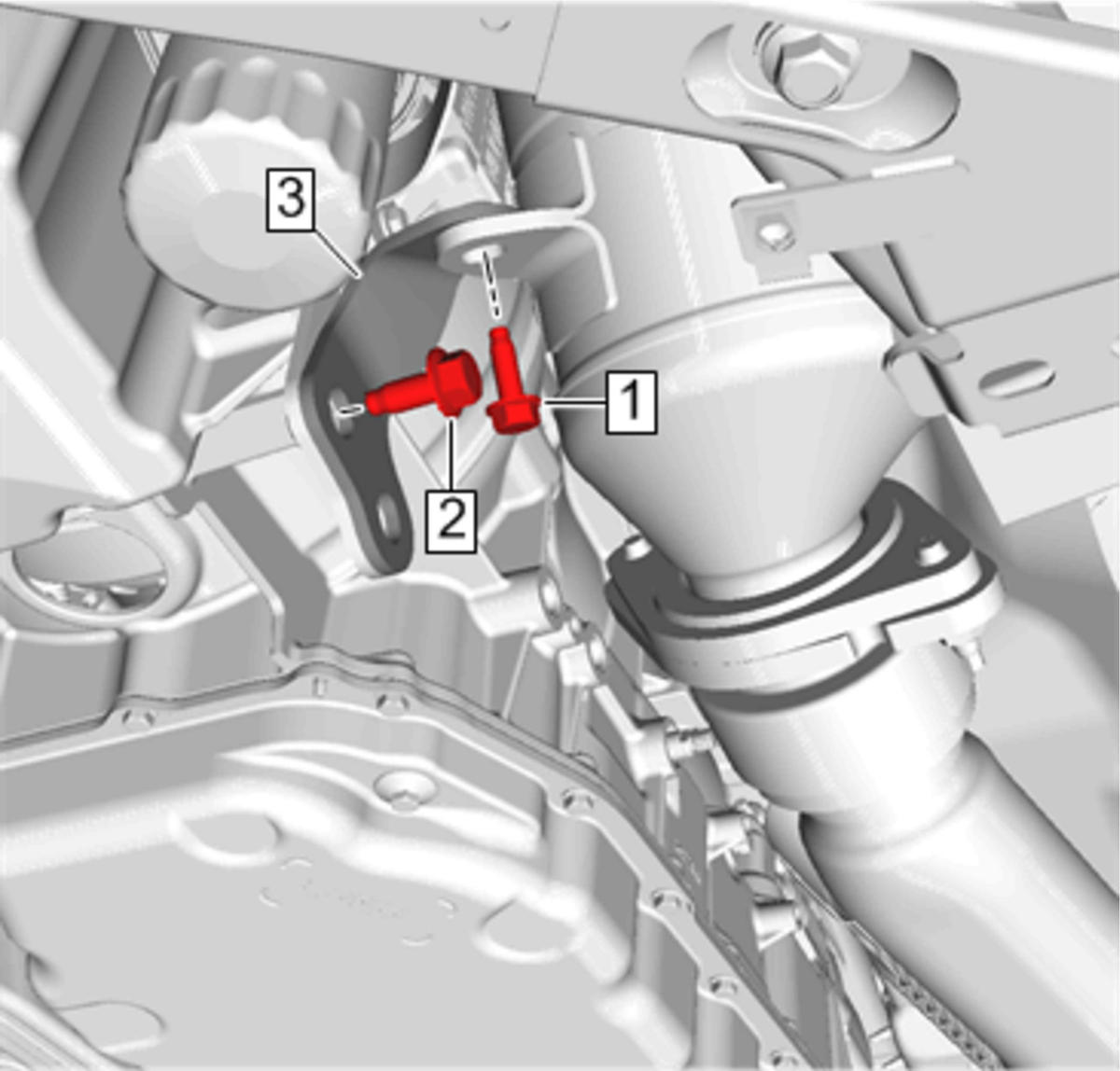

    2. Fig 2: Catalytic Converter Brace Bracket-Lower And Bolts
    GM4620829Courtesy of GENERAL MOTORS COMPANY
  2. Catalytic Converter Brace Bracket-Lower (3)
  3. Install Catalytic Converter Brace Bracket Bolt (1) and tighten 22 N.m (16 lb ft)
  4. Install Catalytic Converter Brace Bracket Bolt (2) Install and tighten 58 N.m (43 lb ft)
  5. Lower the vehicle. Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V)
