Windshield Wiper and Washer Switch Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

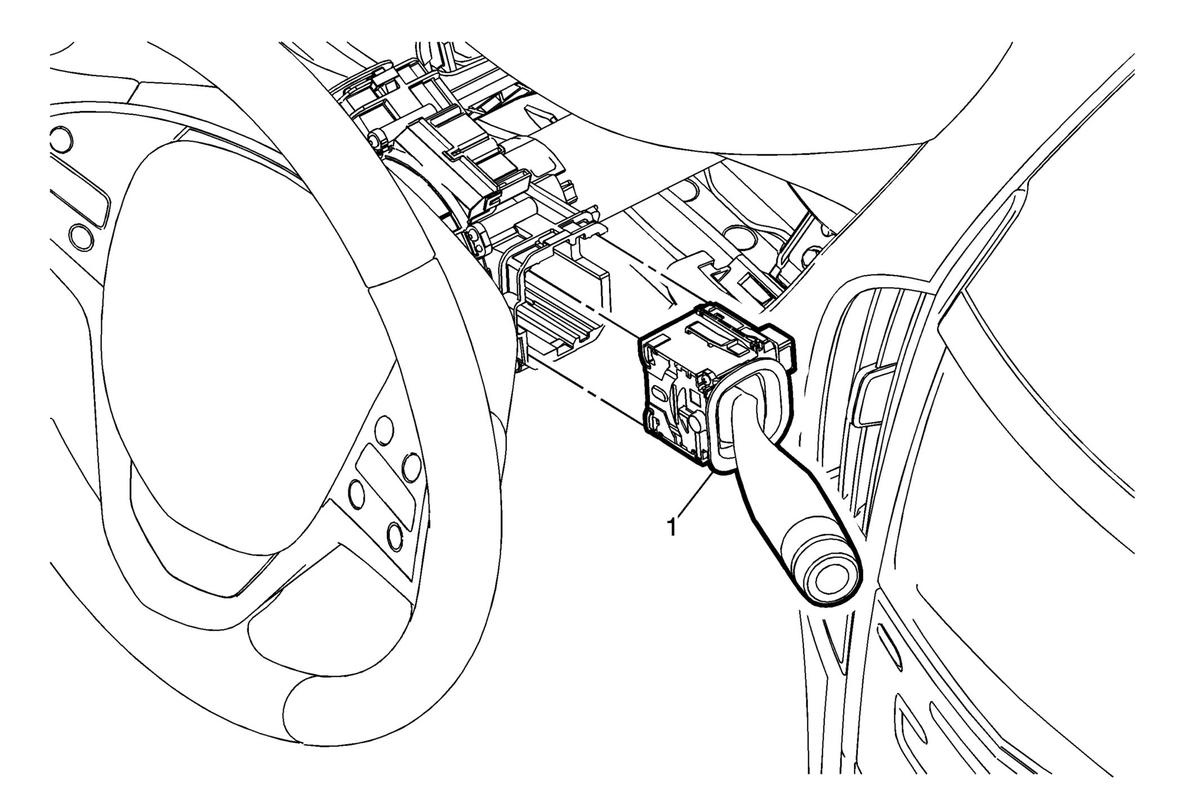

Fig 1: Windshield Wiper/Washer Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Column Lower Trim Cover Replacement
1	Windshield Wiper and Washer Switch Procedure Disconnect the electrical connectors. Release the retaining tabs and remove the windshield wiper and washer switch from the turn signal switch bracket.

Callout

Component Name

Preliminary Procedure
Steering Column Lower Trim Cover Replacement

Windshield Wiper and Washer Switch

Procedure

Disconnect the electrical connectors.
Release the retaining tabs and remove the windshield wiper and washer switch from the turn signal switch bracket.
