Windshield Washer Solvent Container Level Sensor Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

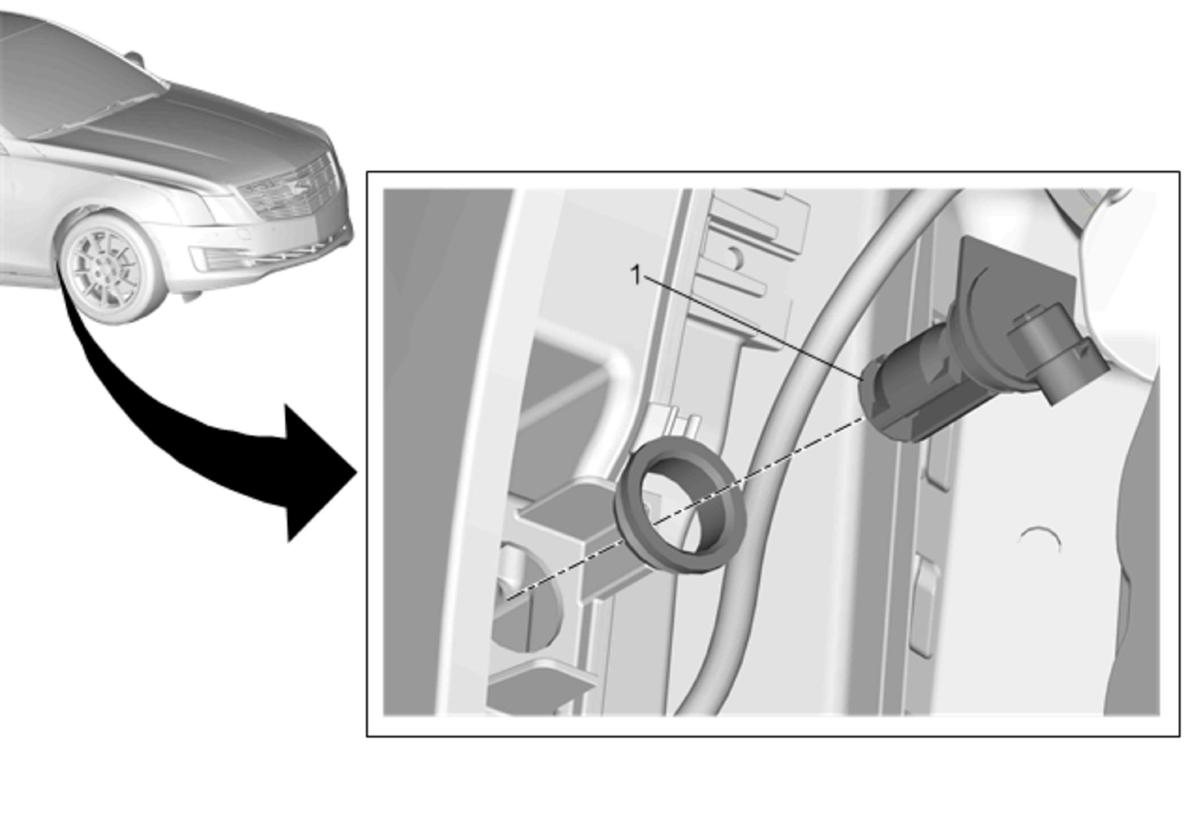

Fig 1: Windshield Washer Solvent Container Level Sensor (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series)Front Wheelhouse Liner Replacement (V-Series) .
1	Windshield Washer Solvent Level Sensor Procedure Disconnect the electrical connector from the windshield washer solvent level sensor. Place a clean suitable drain pan under the windshield washer solvent container to secure the windshield washer solvent when the level sensor and seal are removed. Using appropriate tools placed under each side of the windshield washer solvent level sensor, twist and pry out in opposite directions to disengage the windshield washer solvent level sensor from the washer solvent container and grommet. Remove and discard the windshield washer level sensor grommet and replace with new.

Callout

Component Name

Preliminary Procedure
Remove the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series)Front Wheelhouse Liner Replacement (V-Series) .

Windshield Washer Solvent Level Sensor

Procedure

Disconnect the electrical connector from the windshield washer solvent level sensor.
Place a clean suitable drain pan under the windshield washer solvent container to secure the windshield washer solvent when the level sensor and seal are removed.
Using appropriate tools placed under each side of the windshield washer solvent level sensor, twist and pry out in opposite directions to disengage the windshield washer solvent level sensor from the washer solvent container and grommet.
Remove and discard the windshield washer level sensor grommet and replace with new.
