Windshield Washer Solvent Container Filler Tube Replacement (Sedan with CE1)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

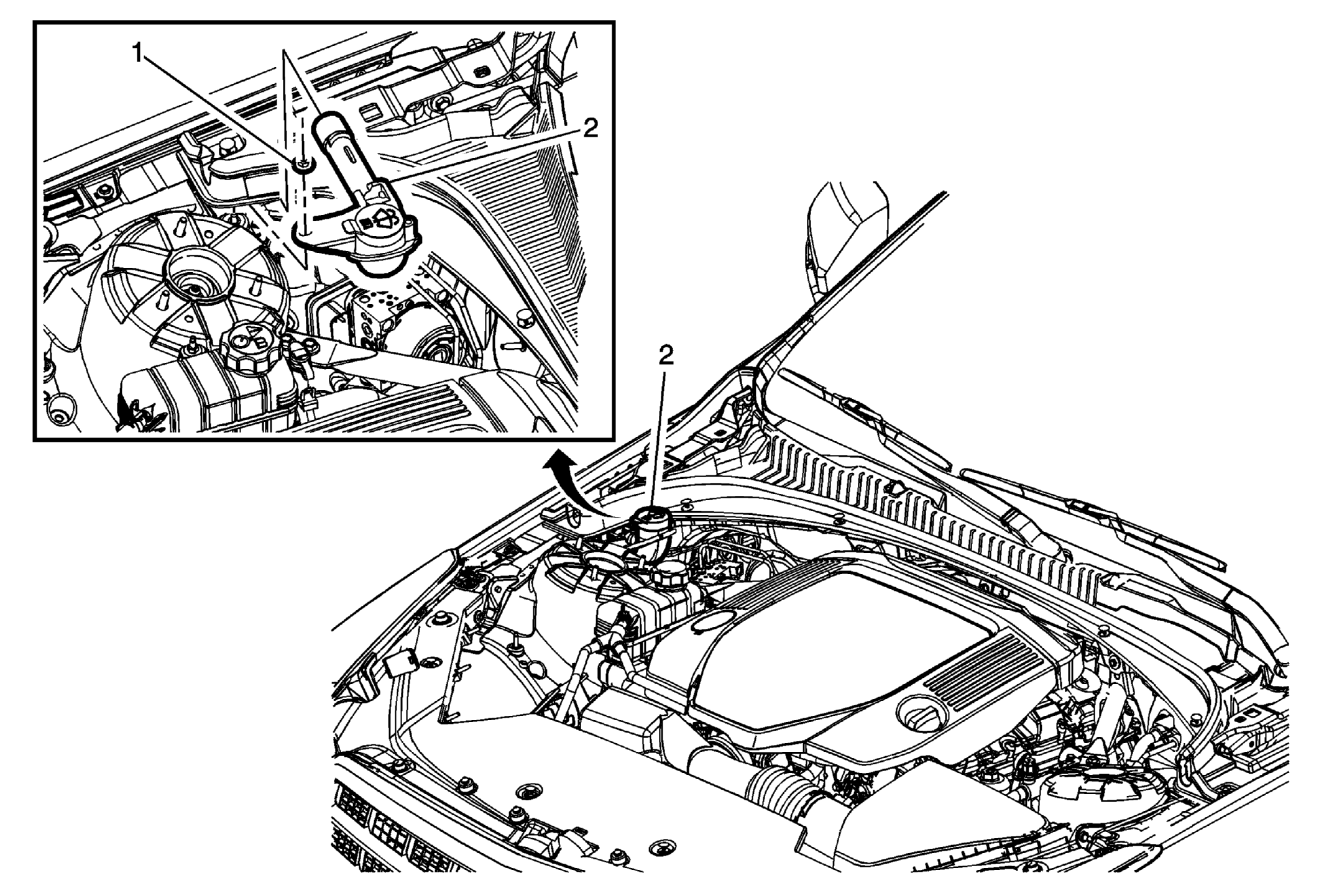

Fig 1: Windshield Washer Solvent Container Filler Tube (with CE1)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open and support the hood.
1	Windshield Washer Solvent Container Filler Tube Nut CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Windshield Washer Solvent Container Filler Tube Procedure Pull inboard on the solvent container filler tube in order to disconnect the filler tube from the windshield washer solvent container grommet. Make sure windshield washer solvent container filler tube is fully inserted before tightening the fastener.

Callout

Component Name

Preliminary Procedure
Open and support the hood.

Windshield Washer Solvent Container Filler Tube Nut

CAUTION:

Refer to Fastener Caution .

Tighten
6 N.m (53 lb in)

Windshield Washer Solvent Container Filler Tube

Procedure

Pull inboard on the solvent container filler tube in order to disconnect the filler tube from the windshield washer solvent container grommet.
Make sure windshield washer solvent container filler tube is fully inserted before tightening the fastener.
