Windshield Washer Pump Wiring Harness Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

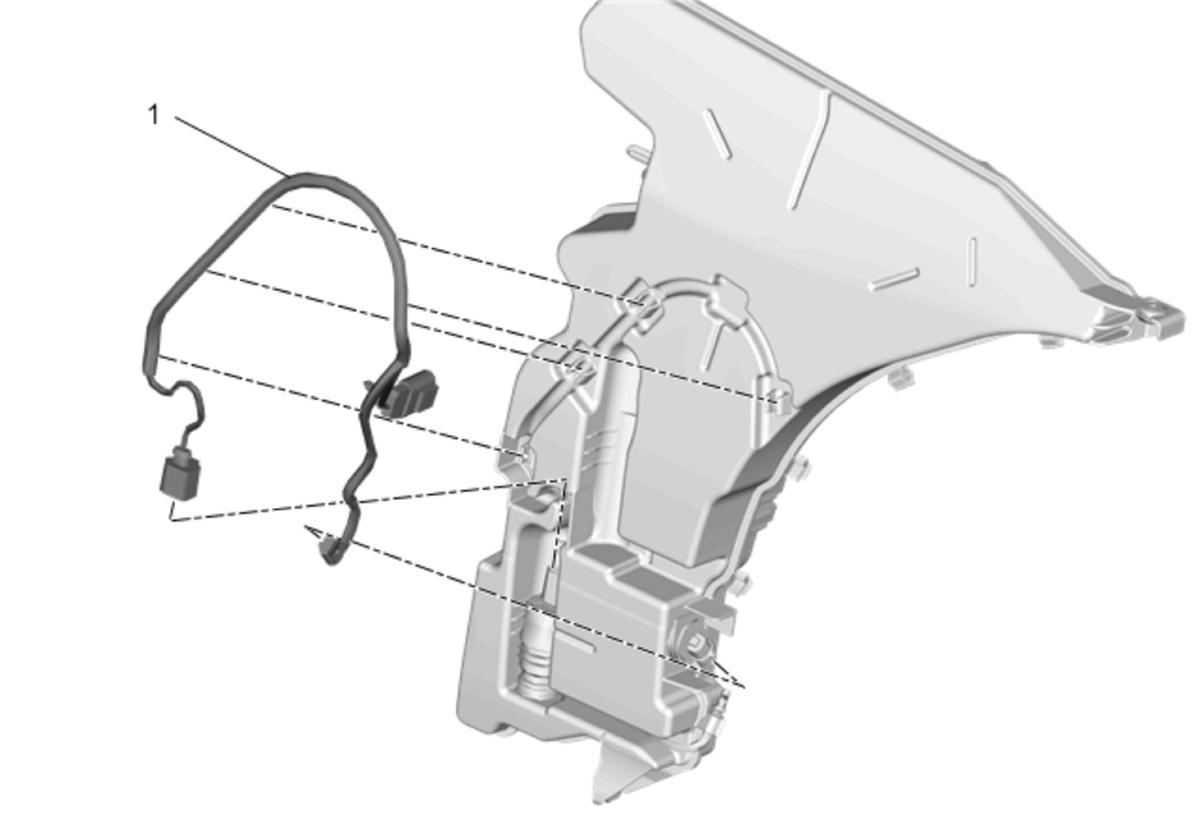

Fig 1: Windshield Washer Pump Wiring Harness (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement (Coupe) .
1	Windshield Washer Pump Wiring Harness Procedure Using an appropriate tool, disengage the windshield washer pump wiring harness from the windshield washer solvent container. Disconnect the windshield washer pump wiring harness from the pump and the sensor and remove from the windshield washer solvent container.

Callout

Component Name

Preliminary Procedure
Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement (Coupe) .

Windshield Washer Pump Wiring Harness

Procedure

Using an appropriate tool, disengage the windshield washer pump wiring harness from the windshield washer solvent container.
Disconnect the windshield washer pump wiring harness from the pump and the sensor and remove from the windshield washer solvent container.
