Windshield Washer Pump Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

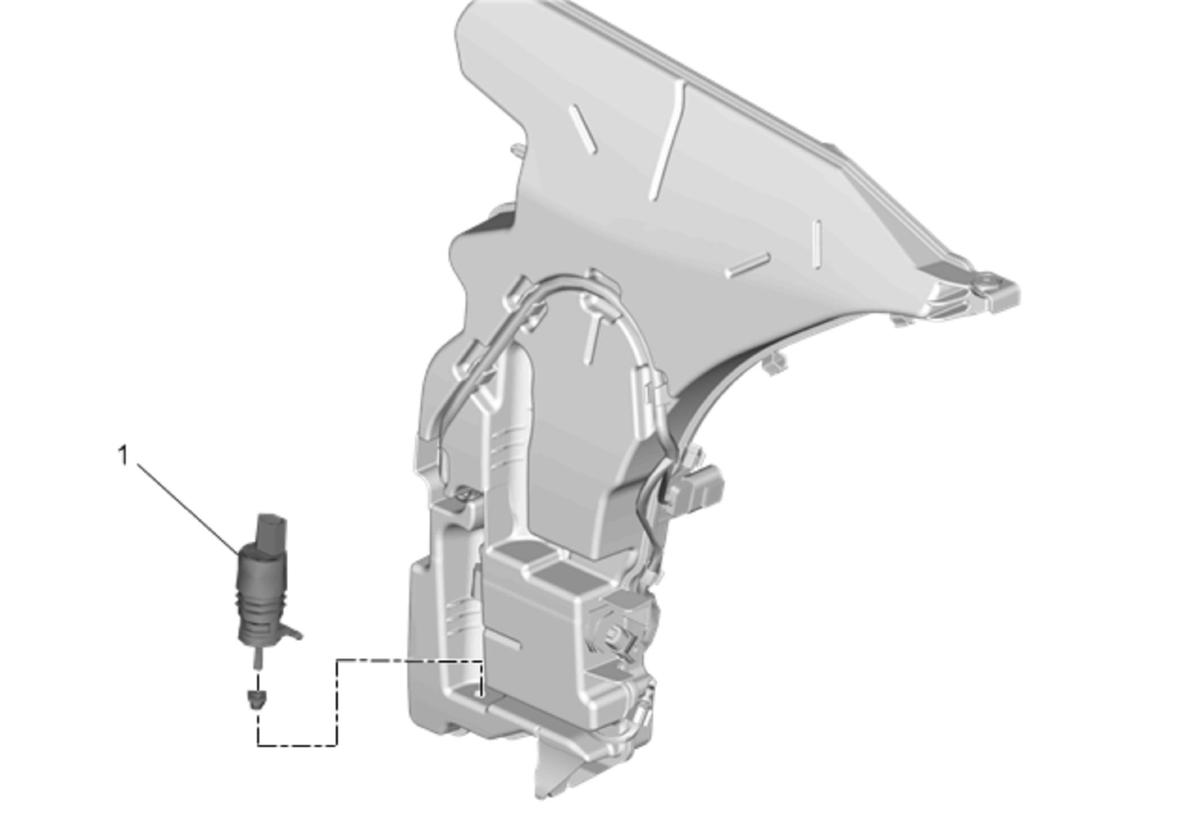

Fig 1: Windshield Washer Pump (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement (Coupe) .
1	Windshield Washer Pump Procedure Disconnect the electrical connector from the windshield washer pump. Using appropriate tools placed under each side of the washer pump, twist and lift in opposite directions to disengage the windshield washer pump from the windshield washer solvent container and seal. Install a new windshield washer pump seal upon replacement of the windshield washer pump.

Callout

Component Name

Preliminary Procedure
Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement (Coupe) .

Windshield Washer Pump

Procedure

Disconnect the electrical connector from the windshield washer pump.
Using appropriate tools placed under each side of the washer pump, twist and lift in opposite directions to disengage the windshield washer pump from the windshield washer solvent container and seal.
Install a new windshield washer pump seal upon replacement of the windshield washer pump.
