Windshield Washer Nozzle Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

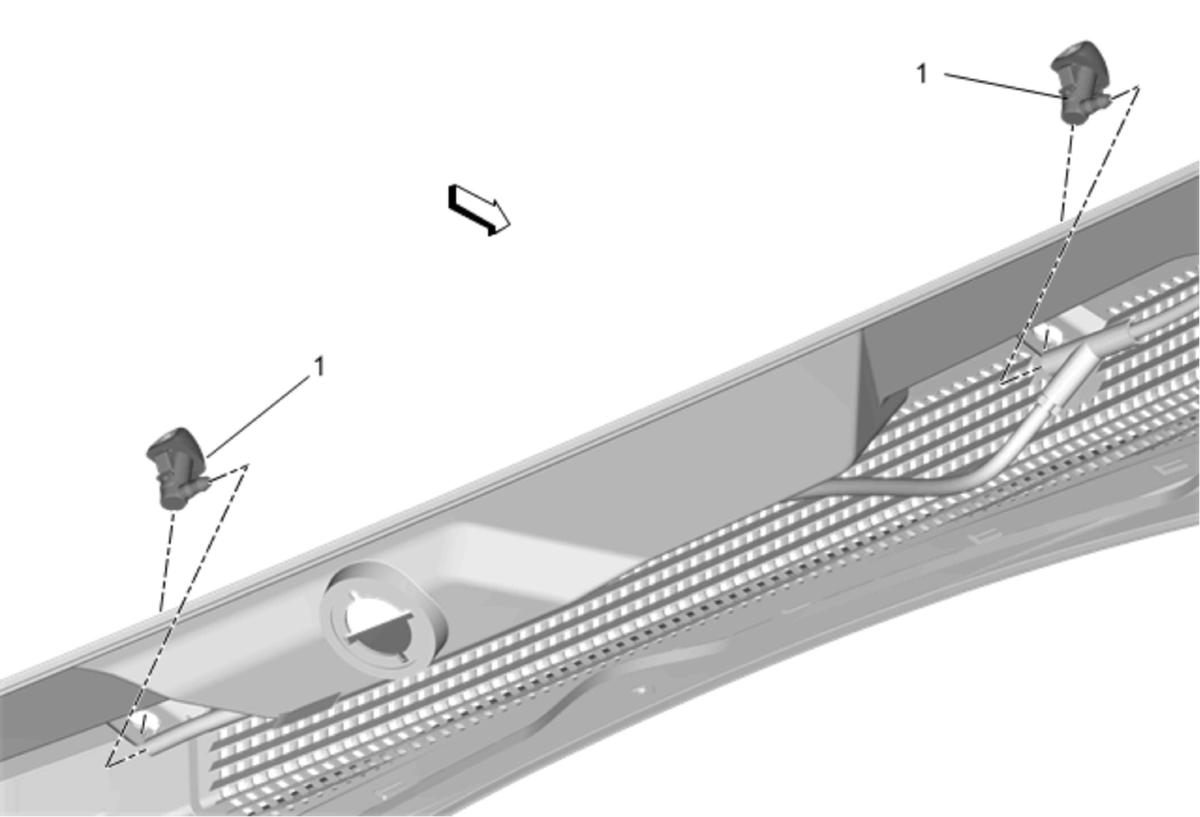

Fig 1: Windshield Washer Nozzle (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Coupe) .
1	Windshield Washer Nozzle Procedure Disconnect the windshield washer hose at the windshield washer nozzle being serviced. Compress the locking tabs on the windshield washer nozzle. Push the windshield washer nozzle outward from the air inlet grille panel. Remove the windshield washer nozzle from the air inlet grille panel.

Callout

Component Name

Preliminary Procedure
Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Coupe) .

Windshield Washer Nozzle

Procedure

Disconnect the windshield washer hose at the windshield washer nozzle being serviced.
Compress the locking tabs on the windshield washer nozzle.
Push the windshield washer nozzle outward from the air inlet grille panel.
Remove the windshield washer nozzle from the air inlet grille panel.
