Windshield Washer Nozzle Hose Connector Hose Replacement (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

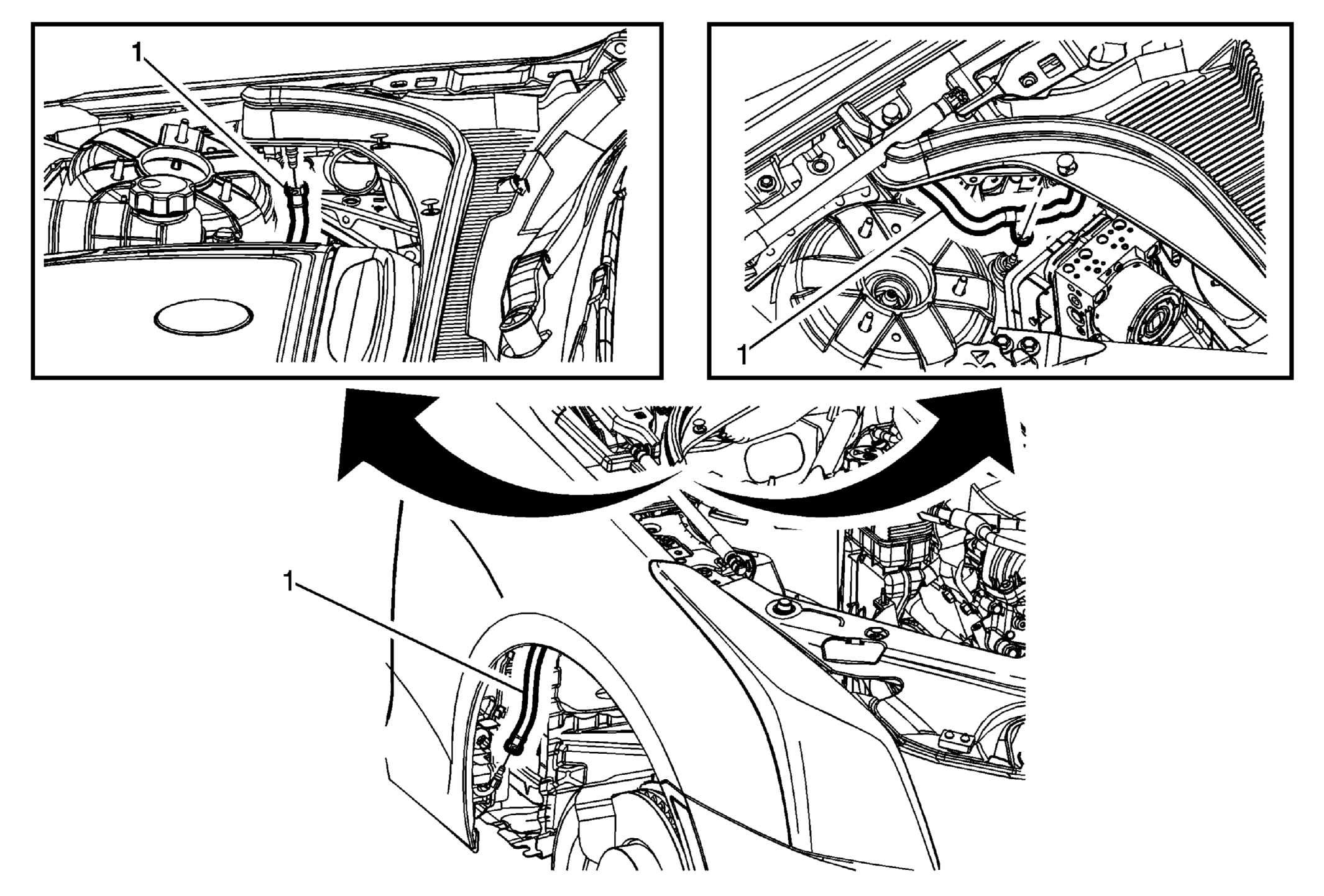

Fig 1: Windshield Washer Nozzle Hose Connector Hose Replacement (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series)Front Wheelhouse Liner Replacement (V-Series) . Open and support the hood.
1	Windshield Washer Nozzle Hose Connector Hose Procedure Disconnect windshield washer nozzle hose connector hose from windshield washer pump hose. From the engine compartment release windshield washer nozzle hose connector hose push-on clip from the front wheelhouse panel stud. Disconnect windshield washer nozzle hose connector hose from windshield washer nozzle hose. Pull windshield washer nozzle hose connector hose up through front wheelhouse panel and remove from vehicle.

Callout

Component Name

Preliminary Procedures

Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series)Front Wheelhouse Liner Replacement (V-Series) .
Open and support the hood.

Windshield Washer Nozzle Hose Connector Hose

Procedure

Disconnect windshield washer nozzle hose connector hose from windshield washer pump hose.
From the engine compartment release windshield washer nozzle hose connector hose push-on clip from the front wheelhouse panel stud.
Disconnect windshield washer nozzle hose connector hose from windshield washer nozzle hose.
Pull windshield washer nozzle hose connector hose up through front wheelhouse panel and remove from vehicle.
