Headlamp Washer Pump Hose Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

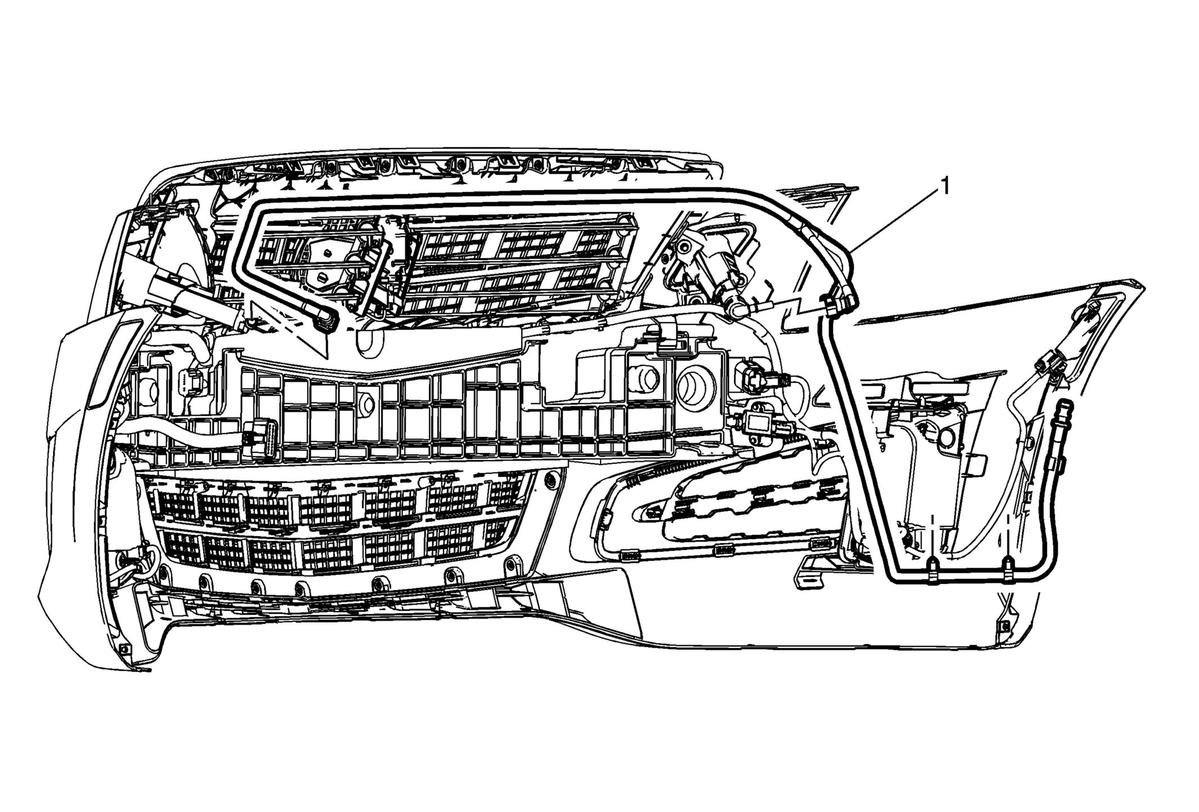

Fig 1: Headlamp Washer Pump Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement (V) .
1	Headlamp Washer Pump Hose Procedure Note the routing of the headlamp washer pump hose for installation. Disconnect the headlamp washer pump hose from the right and left headlamp washer nozzle spouts. Release the headlamp washer pump hose from the charge air cleaner outlet duct clips. Disengage the headlamp washer pump hose from the right side washer nozzle bracket reinforcement. Disengage the 2 clips, at the lower part of the park and fog lamp bracket to release the hose. Disengage the headlamp washer pump hose from the clip at the right side of the park and fog lamp bracket. Remove the headlamp washer pump hose from the front bumper fascia.

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement (V) .

Headlamp Washer Pump Hose

Procedure

Note the routing of the headlamp washer pump hose for installation.
Disconnect the headlamp washer pump hose from the right and left headlamp washer nozzle spouts.
Release the headlamp washer pump hose from the charge air cleaner outlet duct clips.
Disengage the headlamp washer pump hose from the right side washer nozzle bracket reinforcement.
Disengage the 2 clips, at the lower part of the park and fog lamp bracket to release the hose.
Disengage the headlamp washer pump hose from the clip at the right side of the park and fog lamp bracket.
Remove the headlamp washer pump hose from the front bumper fascia.
