Headlamp Washer Pump Hose Replacement (ATS-V)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

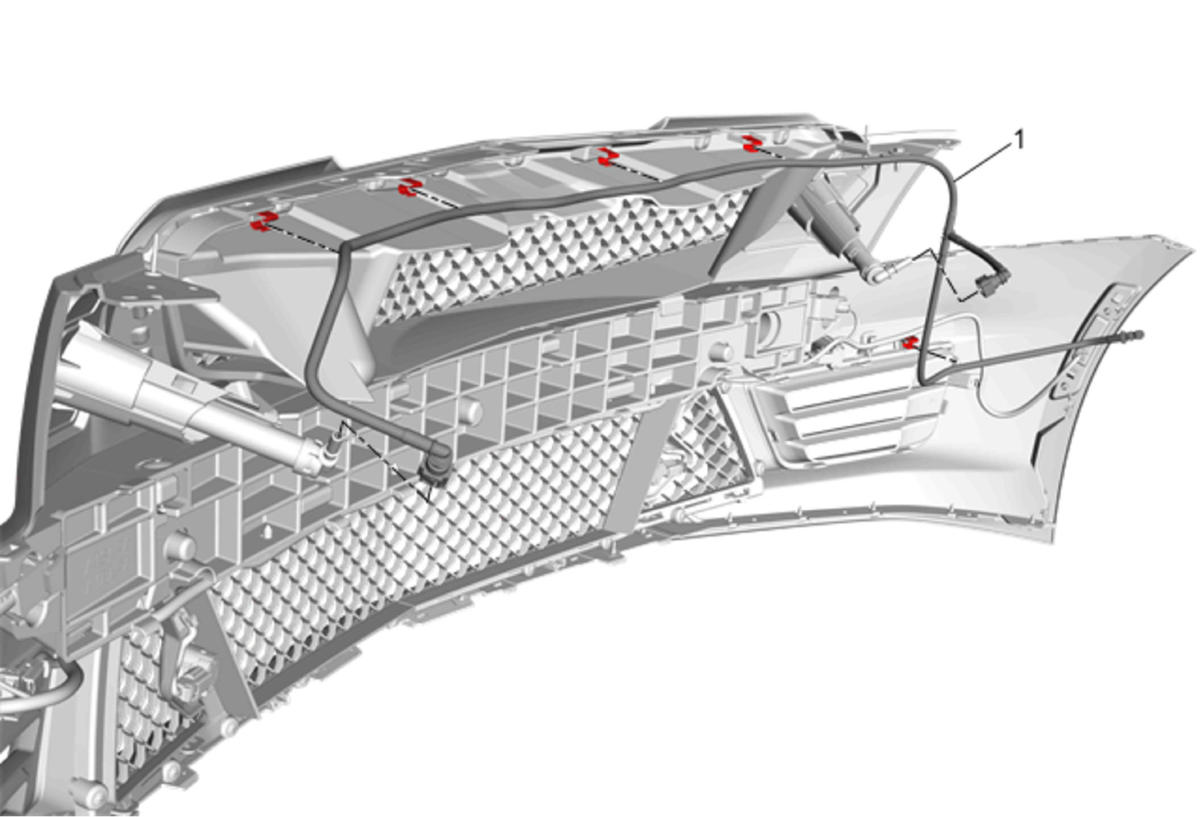

Fig 1: Headlamp Washer Pump Hose (ATS-V)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement (V)
1	Headlamp Washer Pump Hose Procedure Note the routing of the headlamp washer pump hose for installation. Disconnect the headlamp washer pump hose from the right and left headlamp washer nozzle spouts. Release the headlamp washer pump hose from the retaining clips. Remove the headlamp washer pump hose from the front bumper fascia.

Callout

Component Name

Preliminary Procedure
Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement (V)

Headlamp Washer Pump Hose

Procedure

Note the routing of the headlamp washer pump hose for installation.
Disconnect the headlamp washer pump hose from the right and left headlamp washer nozzle spouts.
Release the headlamp washer pump hose from the retaining clips.
Remove the headlamp washer pump hose from the front bumper fascia.
