Headlamp Washer Hose Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

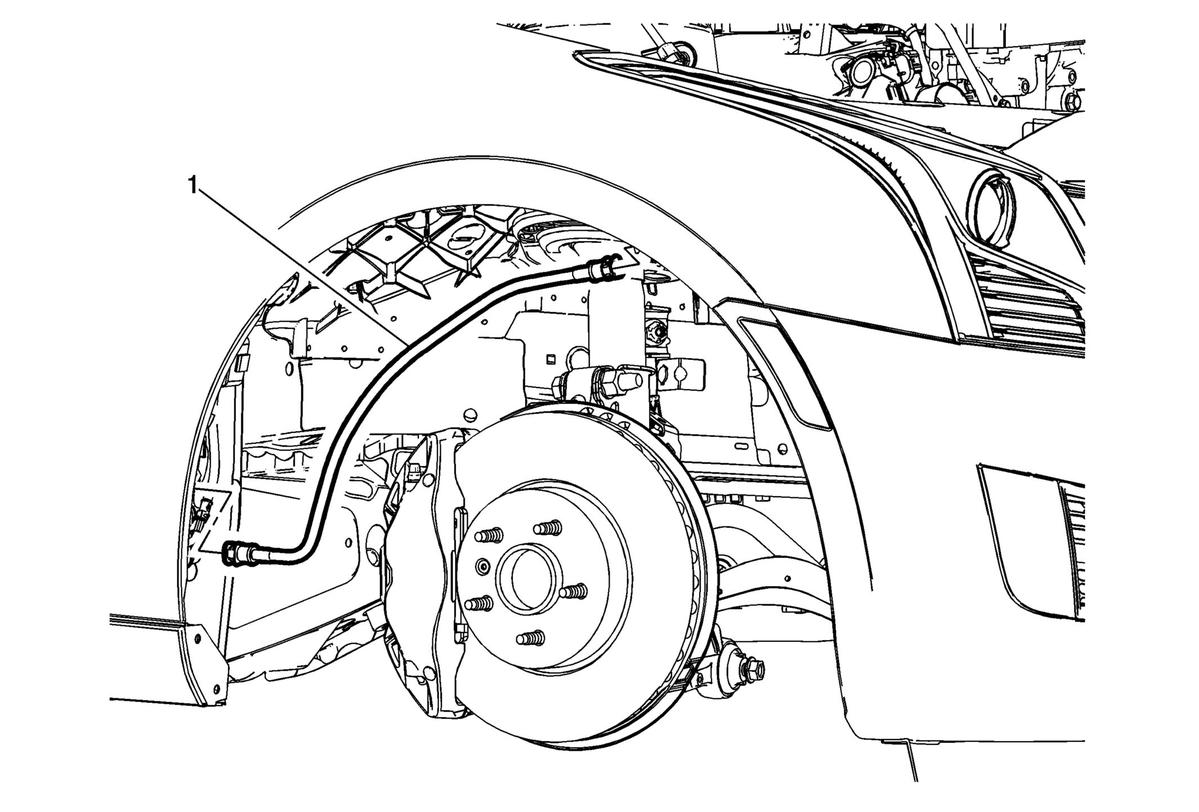

Fig 1: Headlamp Washer Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series)Front Wheelhouse Liner Replacement (V-Series) .
1	Headlamp Washer Hose Procedure Disconnect the top of the headlamp washer hose from the headlamp washer pump hose. Disconnect the bottom of the headlamp washer hose from the headlamp washer pump. Release the washer hose from the integral clips on the windshield washer solvent container and remove.

Callout

Component Name

Preliminary Procedure
Remove the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series)Front Wheelhouse Liner Replacement (V-Series) .

Headlamp Washer Hose

Procedure

Disconnect the top of the headlamp washer hose from the headlamp washer pump hose.
Disconnect the bottom of the headlamp washer hose from the headlamp washer pump.
Release the washer hose from the integral clips on the windshield washer solvent container and remove.
