Windshield Washer System
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
The windshield washer pump is controlled by the body control module (BCM) via a printed circuit board (PCB) relay. When the washer switch is depressed, the BCM's internally pulled high resistor is pulled low by the washer request circuit. The BCM then applies voltage through a control circuit to the PCB windshield washer pump relay. With the relay energized, fused battery voltage is applied through the switch contacts of the relay and the control circuit to activate the windshield washer fluid pump.

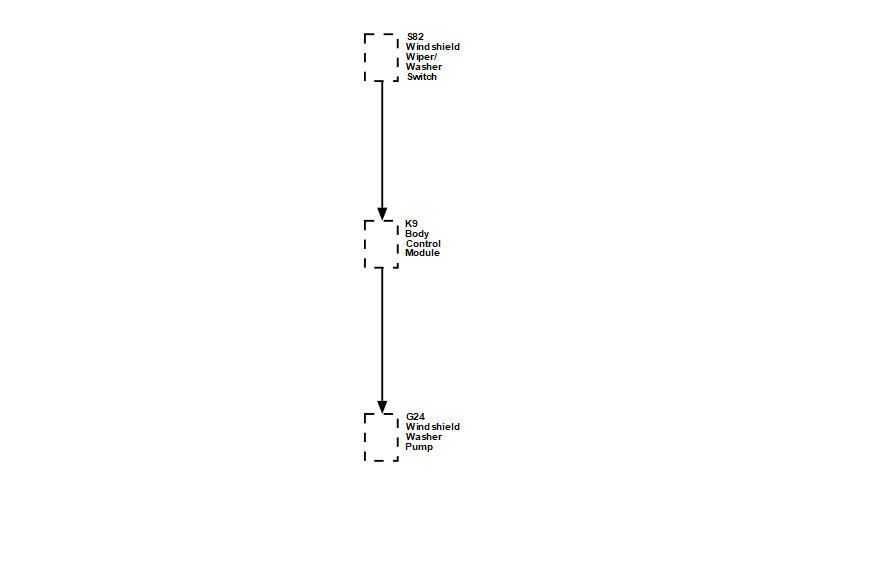

| Callout | Component Name |
|---|---|
| S82 | S82 Windshield Wiper/Washer Switch |
| K9 | K9 Body Control Module |
| G24 | G24 Windshield Washer Pump |
