Driver (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

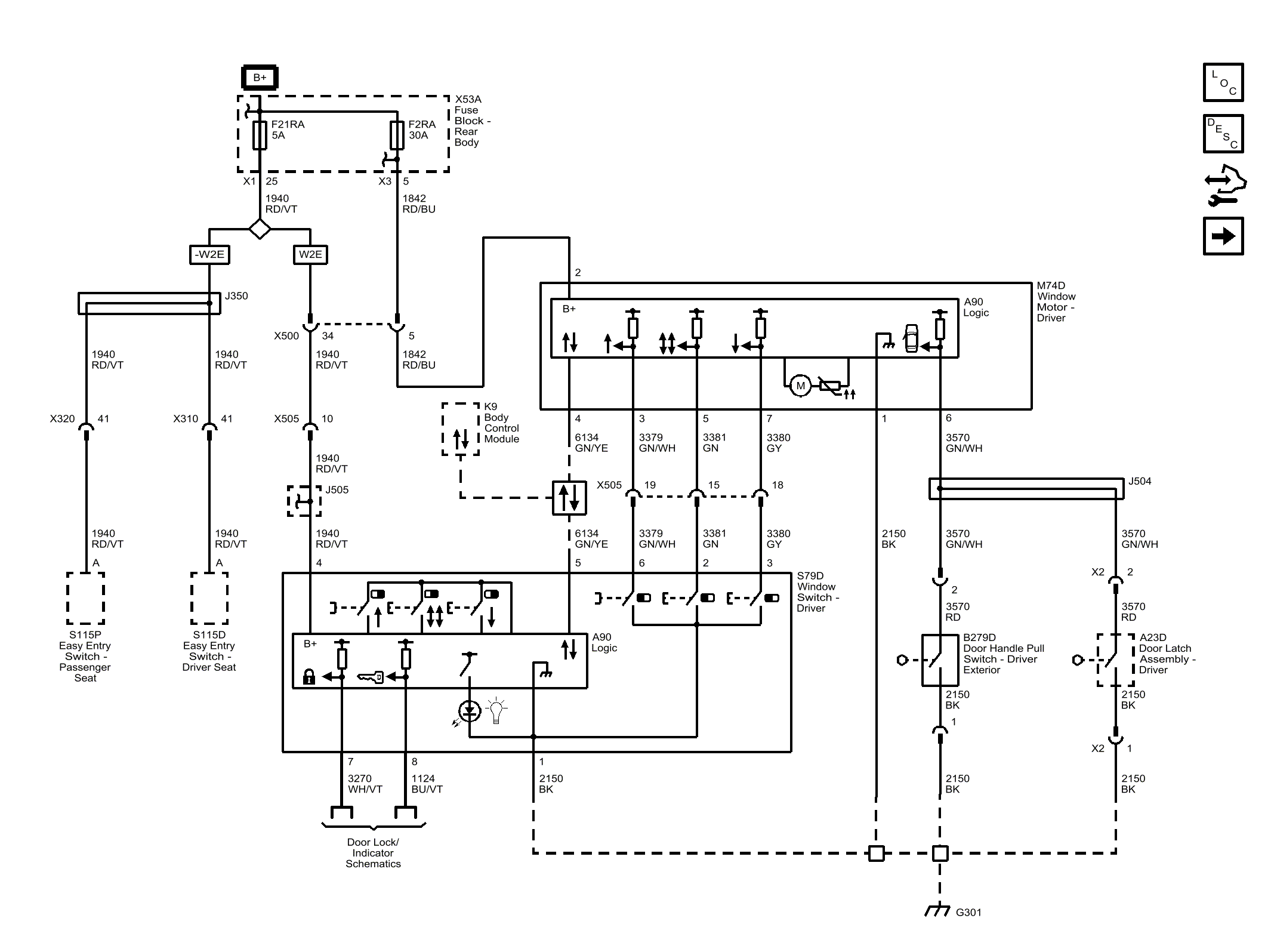

Fig 1: Driver (Coupe)
GM4491064Courtesy of GENERAL MOTORS COMPANY
