Rear Side Door Window Belt Reveal Molding Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

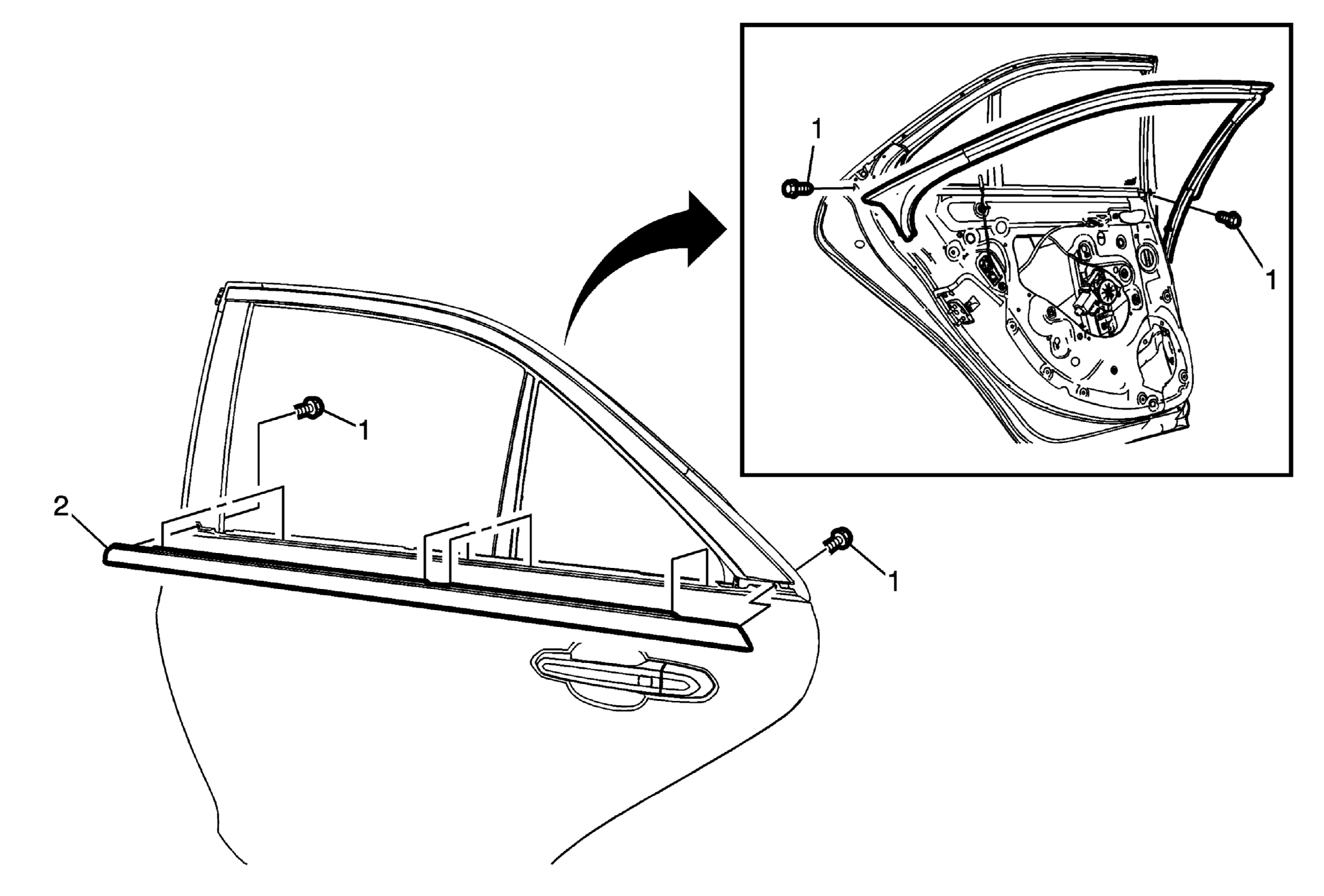

Fig 1: Rear Side Door Window Belt Reveal Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Window Belt Reveal Molding Screws (Qty :2) CAUTION: Refer to Fastener Caution . Procedure Lower the front side door window to the fully down position. Tape off the lower window frame to prevent damage to the door. Using a suitable tool, lift upward at the rear end of the reveal molding. Work the reveal molding down the door flange until it fully releases.
2	Rear Side Door Window Belt Reveal Molding Procedure Push downward on the molding until fully seated. NOTE: Inspect the door window for proper operation.

Callout

Component Name

Rear Side Door Window Belt Reveal Molding Screws (Qty :2)

CAUTION:

Refer to Fastener Caution .

Procedure

Lower the front side door window to the fully down position.
Tape off the lower window frame to prevent damage to the door.
Using a suitable tool, lift upward at the rear end of the reveal molding. Work the reveal molding down the door flange until it fully releases.

Rear Side Door Window Belt Reveal Molding
Procedure
Push downward on the molding until fully seated.

NOTE:

Inspect the door window for proper operation.
