Front Side Door Window Switch Replacement - Left Side (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

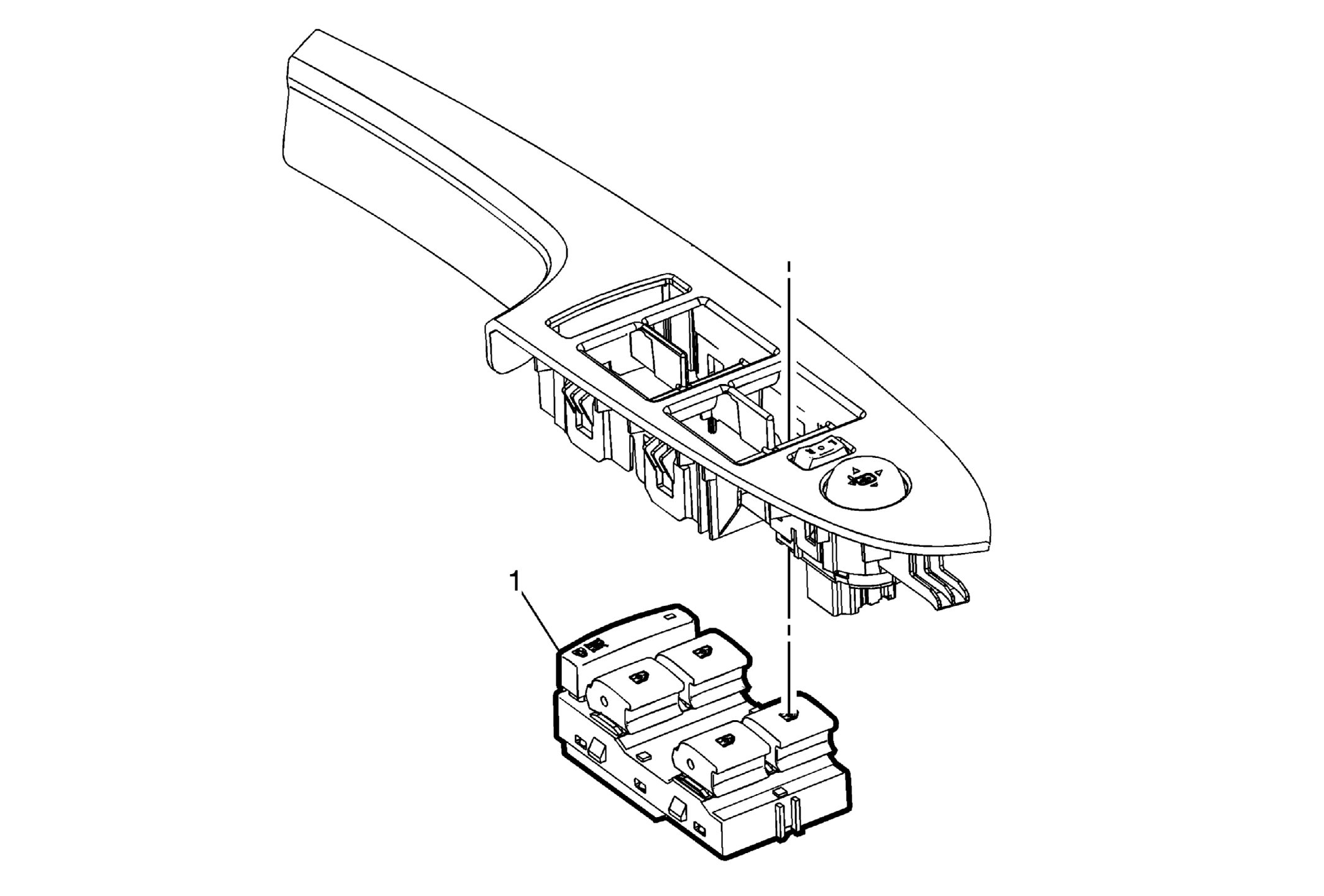

Fig 1: Front Side Door Window Switch - Left Side (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door armrest switch mount plate. Refer to Front Side Door Armrest Switch Mount Plate Replacement (Sedan) .
1	Front Side Door Window Switch Assembly - Left Side Procedure Release tabs on switch to remove from the front side door armrest switch mount plate. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the front side door armrest switch mount plate. Refer to Front Side Door Armrest Switch Mount Plate Replacement (Sedan) .

Front Side Door Window Switch Assembly - Left Side

Procedure

Release tabs on switch to remove from the front side door armrest switch mount plate.
Refer to Control Module References for programming and set up procedures.
