Front Side Door Window Replacement (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

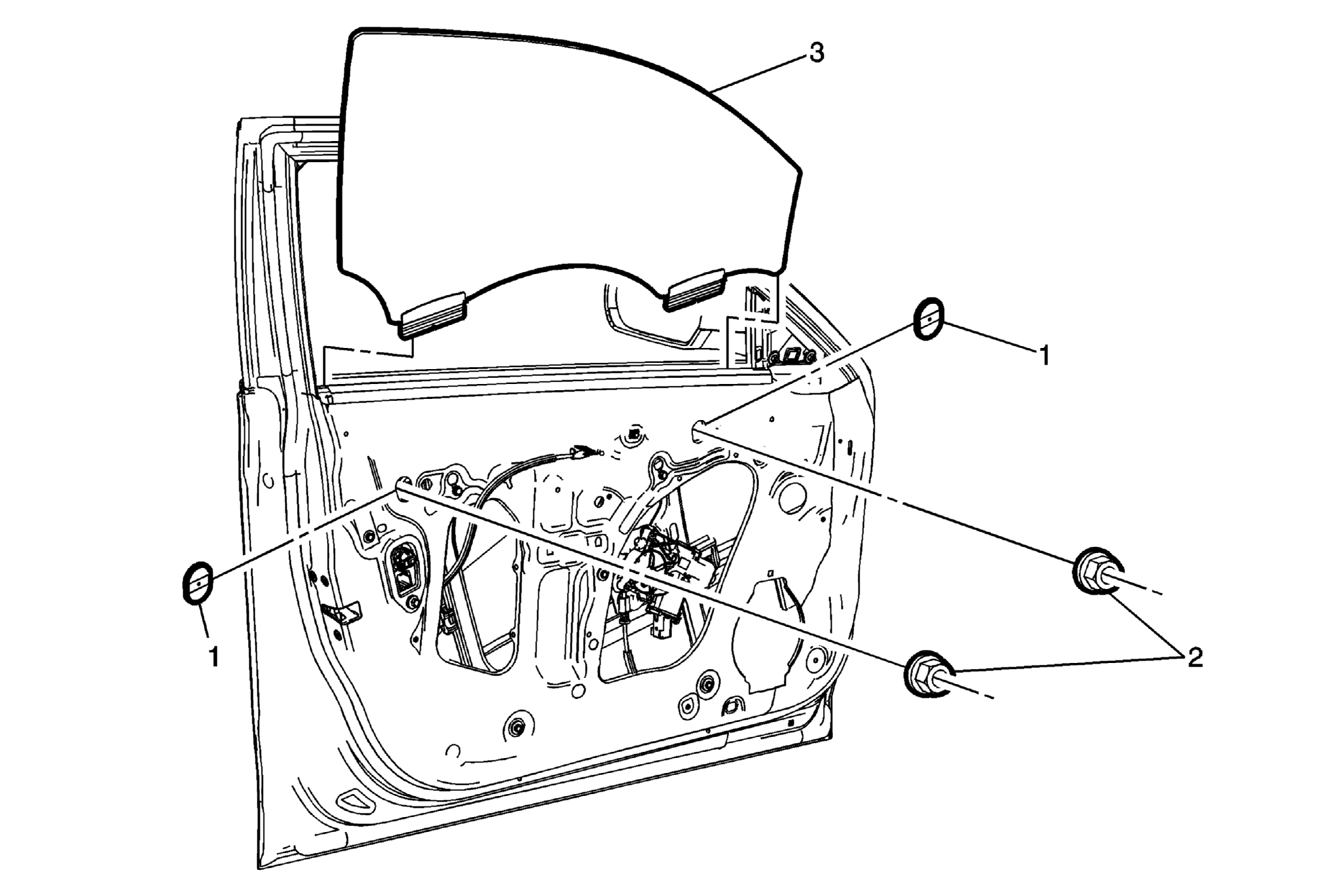

Fig 1: Front Side Door Window (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Remove the front side door trim. Refer to Front Side Door Trim Replacement (Sedan) . Remove the front side door inner sealing strip. Refer to Front Side Door Window Inner Sealing Strip Replacement (Sedan) . Raise the window to the full up position. Remove the water deflector.
1	Front Side Door Regulator Guide Nut Cover (Qty: 2)
2	Front Side Door Window Guide Retainer Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Apply masking tape to the applique and reveal belt molding and door frame. Slowly lower the window approximately half way down in the door. Tilt the window downward in the front, pull up on the back of the window and pull it out from the frame. Tighten 10 N.m (89 lb in)
3	Front Side Door Window Procedure Lower the window into the door frame, slide the window downward into the retainers into the window retaining holes. Then slowly raise the window to the full up position. NOTE: Inspect the window for proper operation before installing the trim.
