Front Side Door Window Rear Channel Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

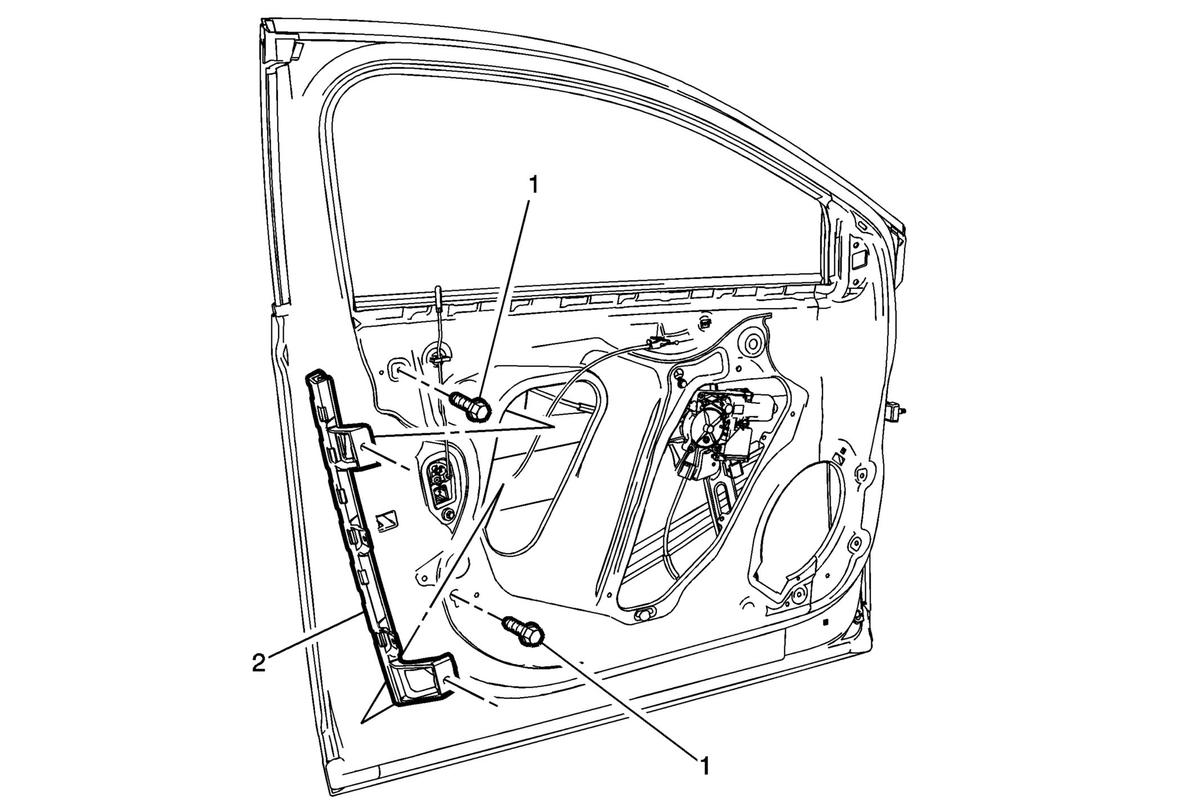

| Callout |
Component Name |
|
Preliminary Procedures
- Remove the front side door trim. Refer to Front Side Door Trim Replacement (Sedan)Front Side Door Trim Replacement (Coupe)
.
- Remove the front door water deflector.
|
| 1 |
Front Side Door Window Rear Channel Bolt (Qty: 2)
Procedure
- Place the window in the full up position.
- Use masking tape to tape the window to the upper door frame.
- Pull the lower section of the window weatherstrip out of the rear lower channel.
- Pull the front side door window rear channel downward releasing it from the stationary window.
Tighten
10 N.m (89 lb in) |
| 2 |
Front Side Door Window Rear Channel Procedure
- When installing the front side door window rear channel ensure that it is in line with the stationary window so that the window will roll properly.
- After installing the front side door window rear channel, start at the top of the channel working downward.
- Ensure the wiring harness is routed and clipped to the channel correctly.
NOTE:
Inspect the window for proper operation before installing the trim.
|
