Front Side Door Window Inner Sealing Strip Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

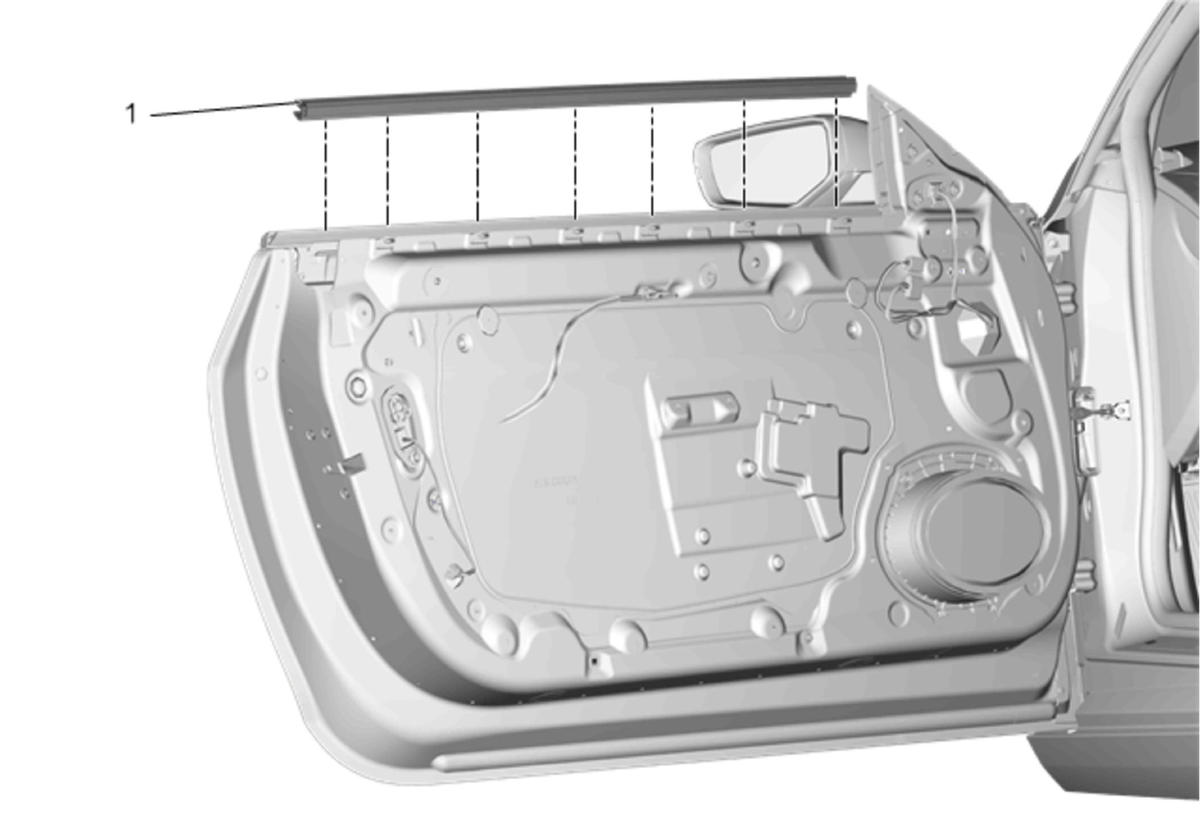

Fig 1: Front Side Door Window Inner Sealing Strip (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Lower the front side door window to the full down position. Remove the front side door trim panel. Refer to Front Side Door Trim Replacement (Coupe) .
1	Front Side Door Window Inner Sealing Strip Procedure Grasp one end of the sealing strip and lift upward to release it from the metal retaining clips and the pinchweld flange. Start at one end of the sealing strip and push down to fully seat the sealing strip on the metal retaining clips and pinchweld flange of the door. NOTE: Carefully manipulate the front side door weatherstrip at the rear of the door to allow clearance for the sealing strip to be removed.

Callout

Component Name

Preliminary Procedures

Lower the front side door window to the full down position.
Remove the front side door trim panel. Refer to Front Side Door Trim Replacement (Coupe) .

Front Side Door Window Inner Sealing Strip

Procedure

Grasp one end of the sealing strip and lift upward to release it from the metal retaining clips and the pinchweld flange.
Start at one end of the sealing strip and push down to fully seat the sealing strip on the metal retaining clips and pinchweld flange of the door.

NOTE:

Carefully manipulate the front side door weatherstrip at the rear of the door to allow clearance for the sealing strip to be removed.
