Power Windows System Components
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
The power window system consists of the following components:
- Driver window switch
- Passenger window switch
- Window motors in both doors
- Exterior door handle
- Door latch assembly
- Body control module
- 30A Fuse
- 5A Fuse

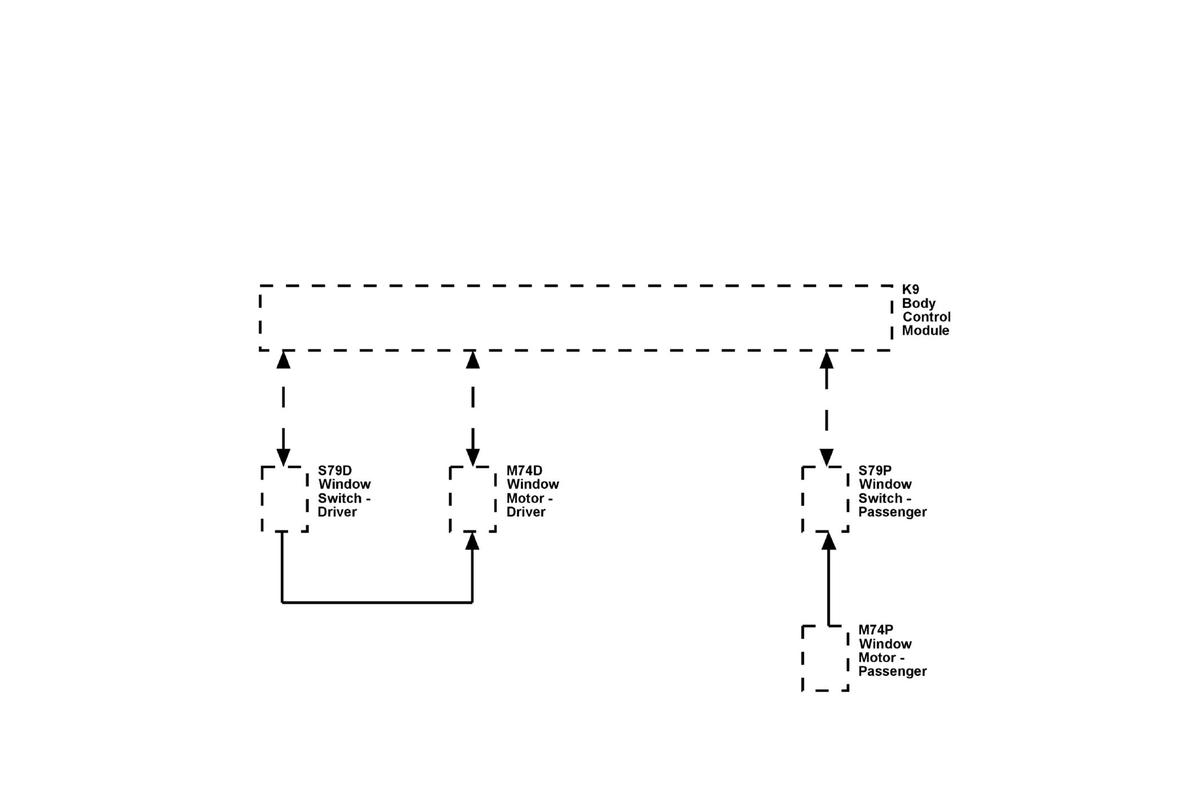

| Callout | Component Name |
|---|---|
| K9 | K9 Body Control Module |
| S79D | S79D Window Switch - Driver |
| M74D | M74D Window Motor - Driver |
| S79P | S79P Window Switch - Passenger |
| M74P | M74P Window Motor - Passenger |
