Tail Lamp Replacement (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

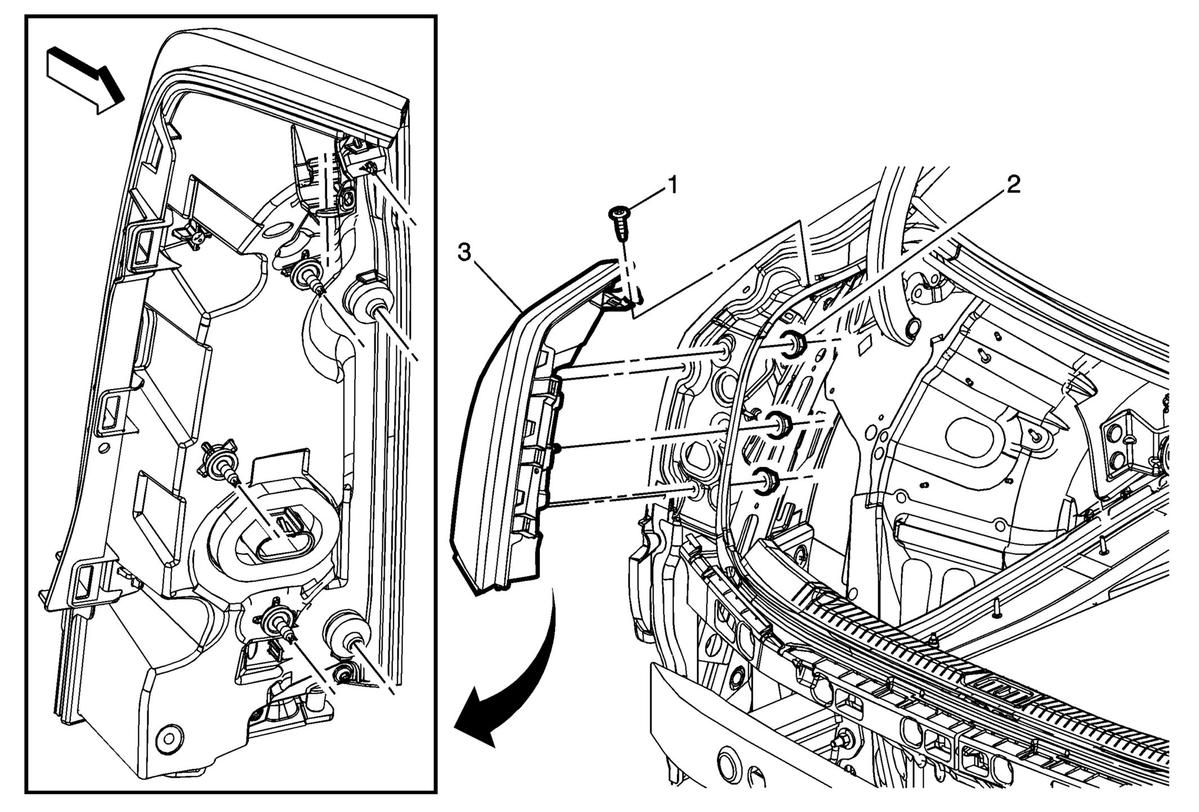

Fig 1: Tail Lamp (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . Remove the rear compartment side trim. Left hand side, refer to Rear Compartment Side Trim Replacement - Left Side (Sedan with AM9)Rear Compartment Side Trim Replacement - Left Side (Sedan except AM9) . Right hand side, refer to Rear Compartment Side Trim Replacement - Right Side (Sedan with AM9)Rear Compartment Side Trim Replacement - Right Side (Sedan except AM9) .
1	Tail Lamp Screw CAUTION: Refer to Fastener Caution .
2	Tail Lamp Nut (Qty: 3) CAUTION: Refer to Fastener Caution .
3	Tail Lamp Procedure Disconnect the electrical connector. Pull tail lamp straight back and remove from the vehicle.
