Rear License Plate Lamp Replacement (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

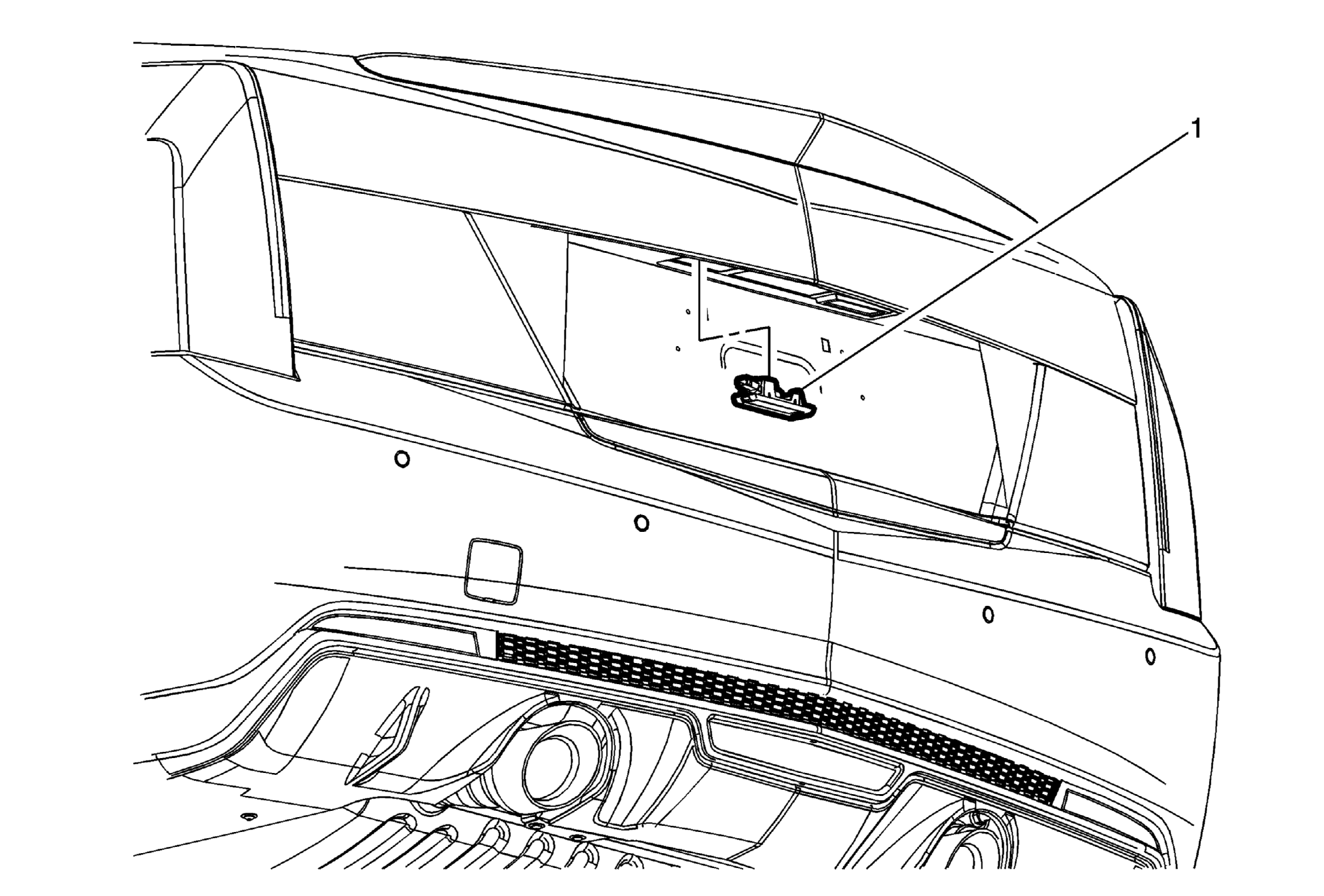

| Callout |
Component Name |
| 1 |
Rear License Plate Lamp Procedure
- Use a flat bladed tool to compress the retainer on the outboard end of the rear license plate lamp and release the rear license plate lamp from the rear decklid.
- Disconnect electrical connector.
|
