Headlamp Bulb Replacement (Coupe With Halogen)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

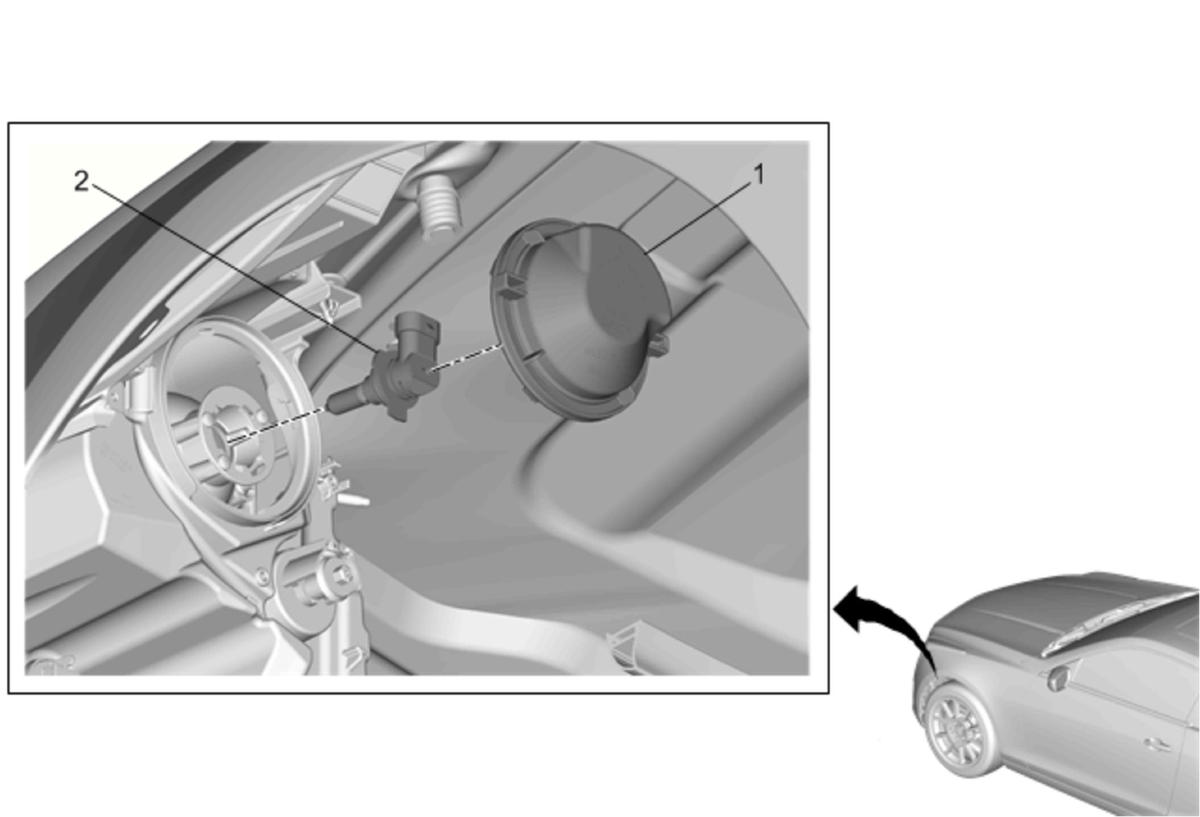

Fig 1: Headlamp Bulb (Coupe With Halogen)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series)Front Wheelhouse Liner Replacement (V-Series) .
1	Headlamp Bulb Access Cover Procedure Rotate the headlamp bulb access cover counterclockwise and pull from the headlamp.
2	Headlamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical connector. Rotate the headlamp bulb counterclockwise and remove from the headlamp.

Callout

Component Name

Preliminary Procedure

Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series)Front Wheelhouse Liner Replacement (V-Series) .

Headlamp Bulb Access Cover
Procedure
Rotate the headlamp bulb access cover counterclockwise and pull from the headlamp.

Headlamp Bulb

WARNING:

Refer to Halogen Bulb Warning .

Procedure

Disconnect the electrical connector.
Rotate the headlamp bulb counterclockwise and remove from the headlamp.
