Front Side Door Inside Handle Illumination Lamp Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

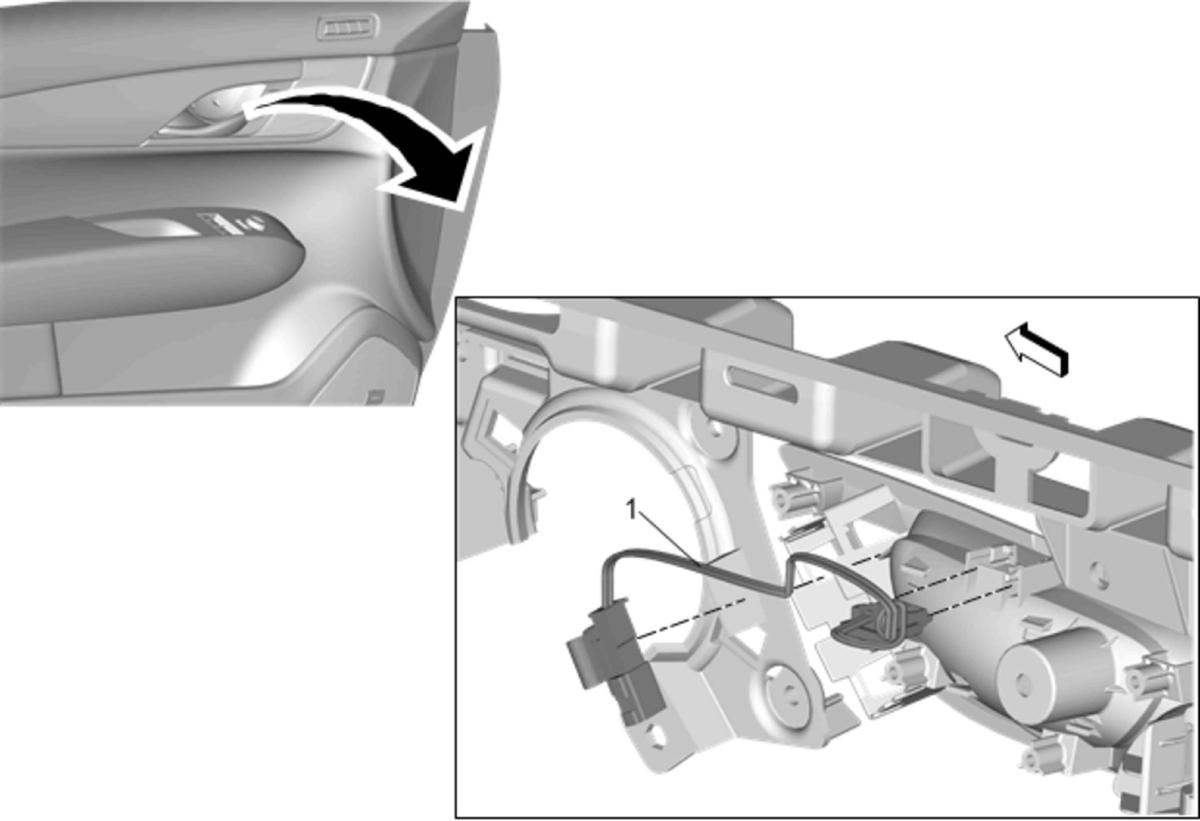

Fig 1: Front Side Door Inside Handle Illumination Lamp (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement (Coupe) .
1	Front Side Door Inside Handle Illumination Lamp Procedure Disconnect the electrical connectors. Unsnap lamp assembly from trim panel tabs.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim. Refer to Front Side Door Trim Replacement (Coupe) .

Front Side Door Inside Handle Illumination Lamp

Procedure

Disconnect the electrical connectors.
Unsnap lamp assembly from trim panel tabs.
