Front Side Door Courtesy Lamp Replacement (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

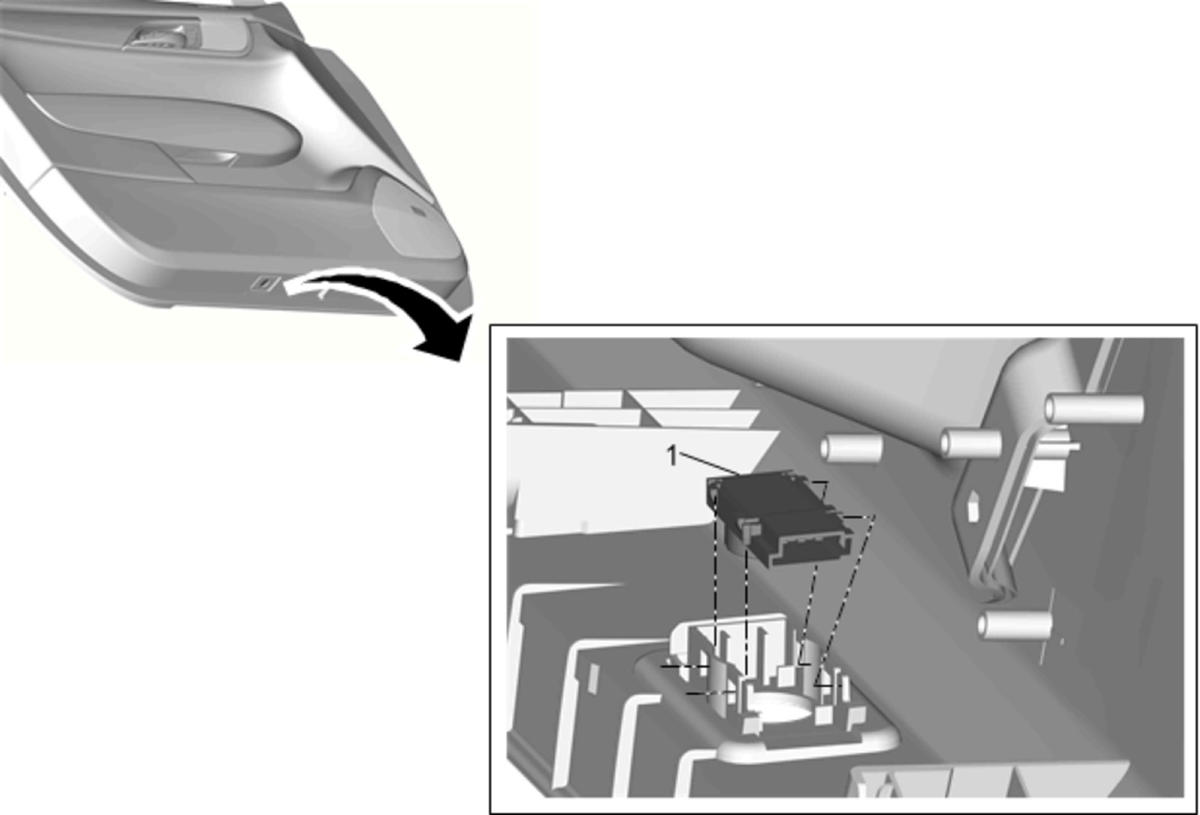

| Callout |
Component Name |
| 1 |
Front Side Door Courtesy Lamp Procedure
- Using a plastic trim tool, gently pry the lamp bracket assembly rearward and down. Then move the assembly forward to remove it from the door trim panel.
- Disconnect the electrical connector.
- Unsnap lamp assembly from bracket tabs.
|
