Daytime Running Lamp Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

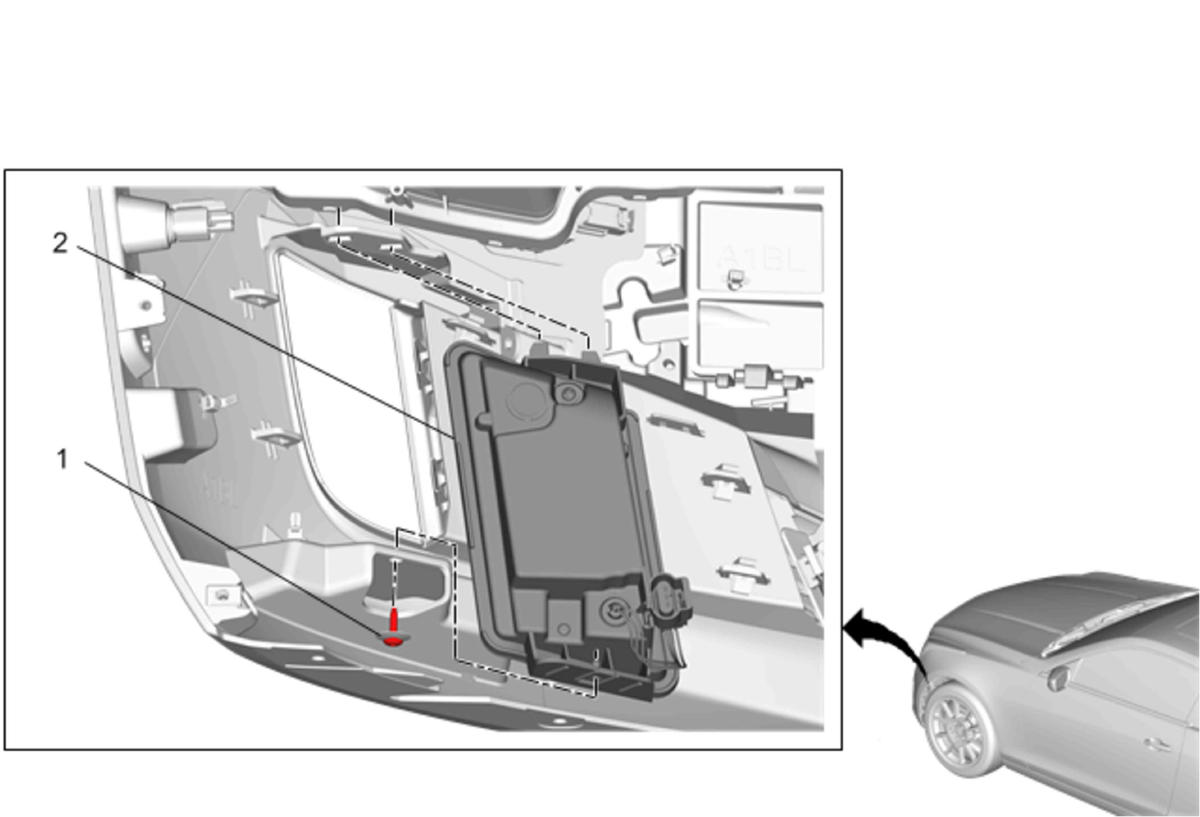

Fig 1: Daytime Running Lamp (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series)Front Wheelhouse Liner Replacement (V-Series) .
1	Daytime Running Lamp Screw CAUTION: Refer to Fastener Caution .
2	Daytime Running Lamp Procedure Disconnect electrical connector. Pull daytime running lamp from bottom to release the 2 locating tabs on the top.
