Center Courtesy Lamp Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the roof console accessory switch trim plate. Refer to Roof Console Accessory Switch Trim Plate Replacement . |
|

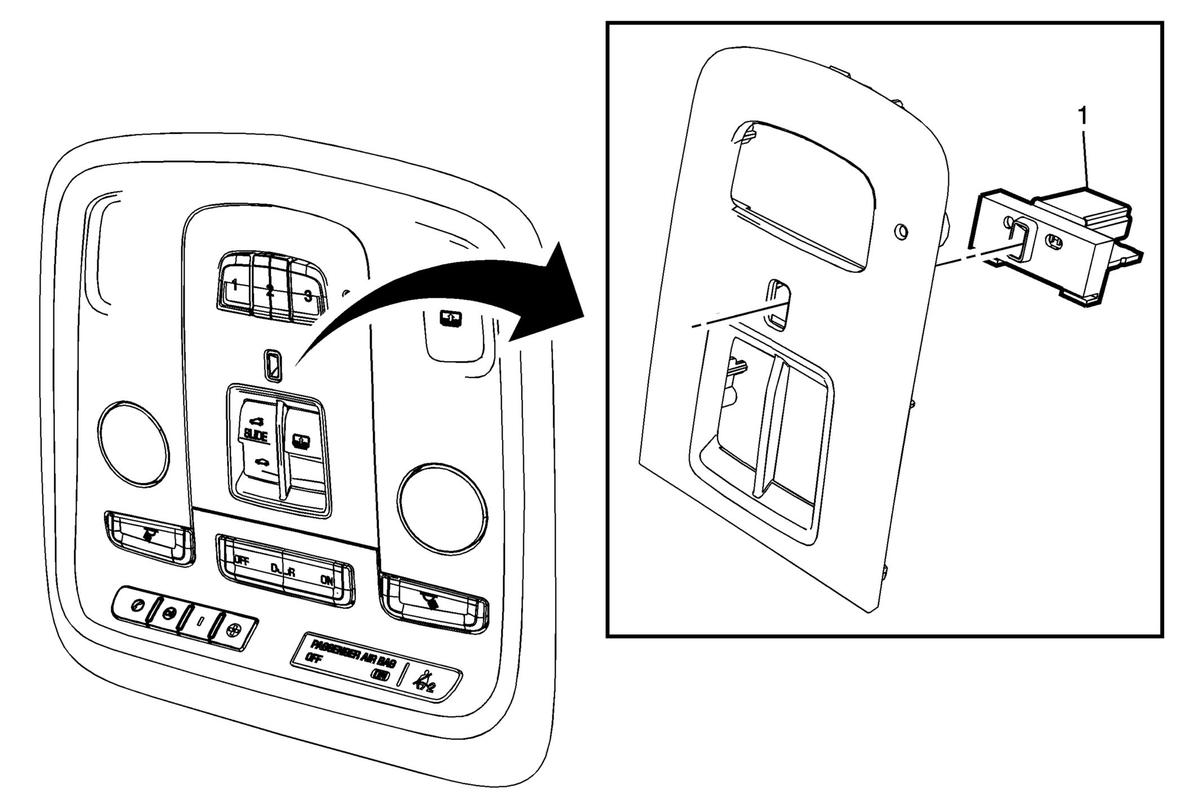

| 1 | Center Courtesy Lamp Procedure Release the tabs and remove the lamp. |
