Backup Lamp Bulb Replacement (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

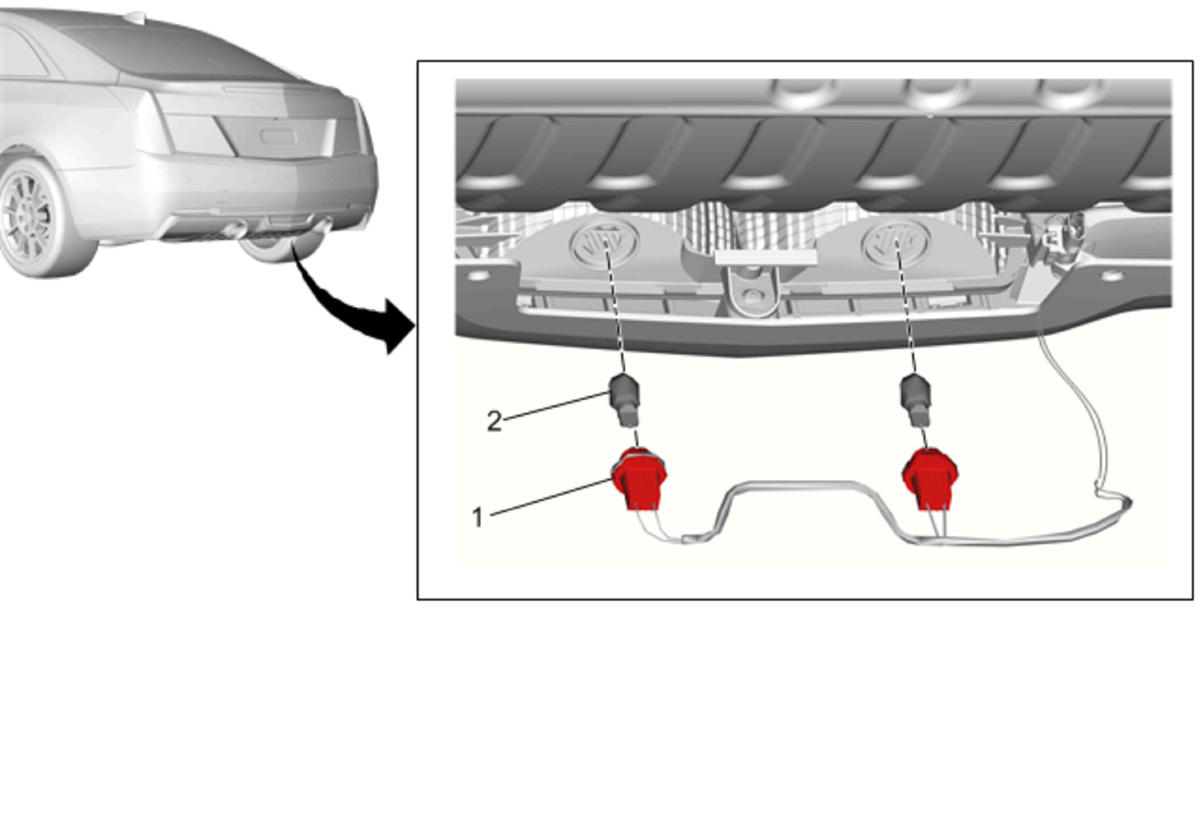

| Callout | Component Name |
|---|---|
| 1 | Rear Backup Lamp Bulb Socket (Qty:2) Procedure Rotate the rear backup lamp bulb socket counterclockwise and remove from rear backup lamp. |
| 2 | Rear Backup Lamp Bulb (Qty:2) Procedure Whiile holding the backup lamp bulb socket, pull the backup lamp blub straight out from backup lamp socket. |
