Rear Seat Head Restraint Replacement (without AM9)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

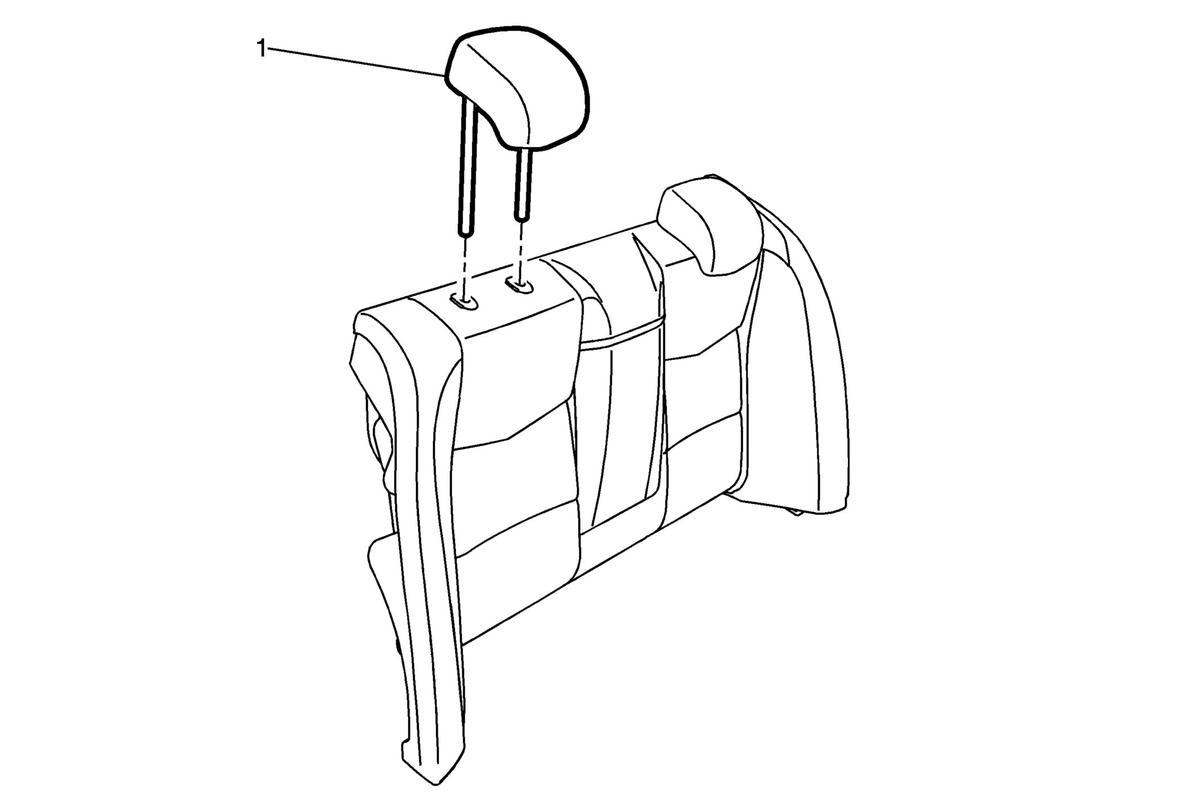

Fig 1: Rear Seat Head Restraint (without AM9)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (without AM9) .
1	Rear Seat Head Restraint Procedure Lower the seat back forward to gain space between the head restraint and the roof. Depress the large button on the head restraint guide and raise the head restraint to the full up position. Depress the large and small buttons found on the head restraint guides and pull upward on the head restraint to remove.

Callout

Component Name

Preliminary Procedure
Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (without AM9) .

Rear Seat Head Restraint

Procedure

Lower the seat back forward to gain space between the head restraint and the roof.
Depress the large button on the head restraint guide and raise the head restraint to the full up position.
Depress the large and small buttons found on the head restraint guides and pull upward on the head restraint to remove.
