Rear Seat Belt Opening Bezel Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

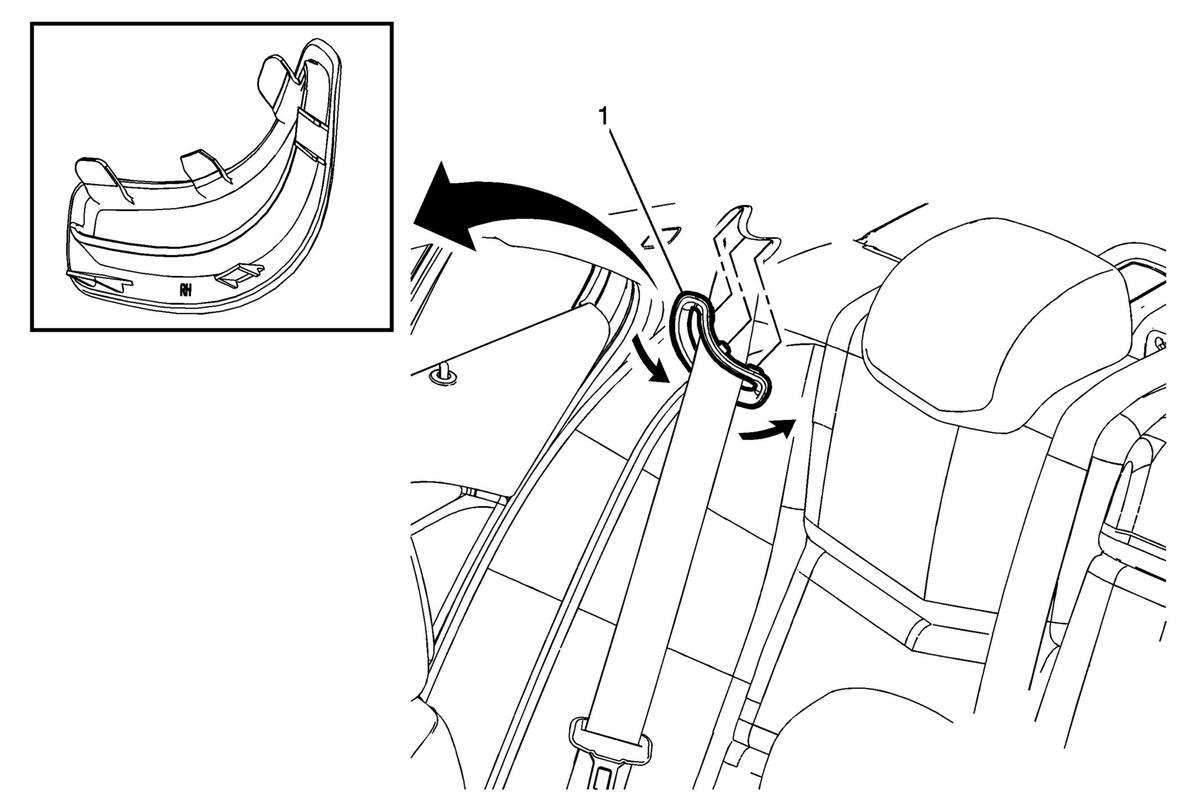

Fig 1: Rear Seat Belt Opening Bezel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat belt retractor lower anchor bolt. Refer to Rear Seat Belt Retractor Replacement .
1	Rear Seat Shoulder Belt Opening Bezel CAUTION: Do not twist the cover during removal. Twisting the cover may cause the component to break. Procedure Firmly grasp both sides of the bezel pulling the bottom outward to disengage the bottom of the cover. Remove the bezel by sliding the cover downward and guiding the lower portion of the belt through the bezel.

Callout

Component Name

Preliminary Procedure
Remove the rear seat belt retractor lower anchor bolt. Refer to Rear Seat Belt Retractor Replacement .

Rear Seat Shoulder Belt Opening Bezel

CAUTION:

Do not twist the cover during removal. Twisting the cover may cause the component to break.

Procedure

Firmly grasp both sides of the bezel pulling the bottom outward to disengage the bottom of the cover.
Remove the bezel by sliding the cover downward and guiding the lower portion of the belt through the bezel.
