Rear Seat Back Side Cushion Frame Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
|
Preliminary Procedure
- Remove the rear seat back cushion bolster. Refer to Rear Seat Back Bolster Replacement (Sedan) Rear Seat Back Bolster Replacement (Coupe)
- Remove the rear seat side inflatable restraint module nuts. Refer to. Rear Seat Outboard Seat Back Airbag Replacement
|

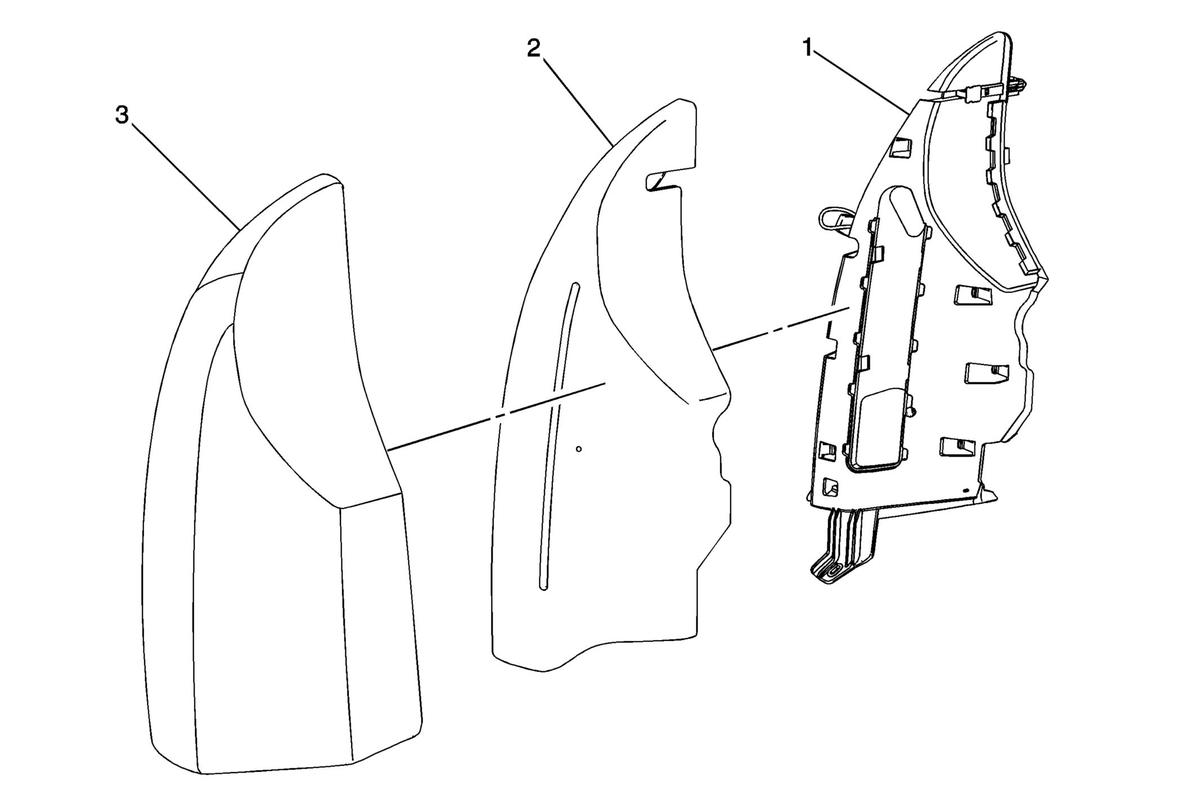

| 1 |
Rear Seat Back Side Cushion Frame Procedure
- Remove the inflatable restraint module bracket.
- Remove the rear seat back side cushion frame cover as an assembly with the rear seat side inflatable restraint module remaining in the cover pocket. Detach the cover retainers that secure the rear seat back side frame to the pad.
|
| 2 |
Rear Seat Back Side Cushion Pad |
| 3 |
Rear Seat Back Side Cushion Cover |
