Rear Seat Back Cushion Hinge Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

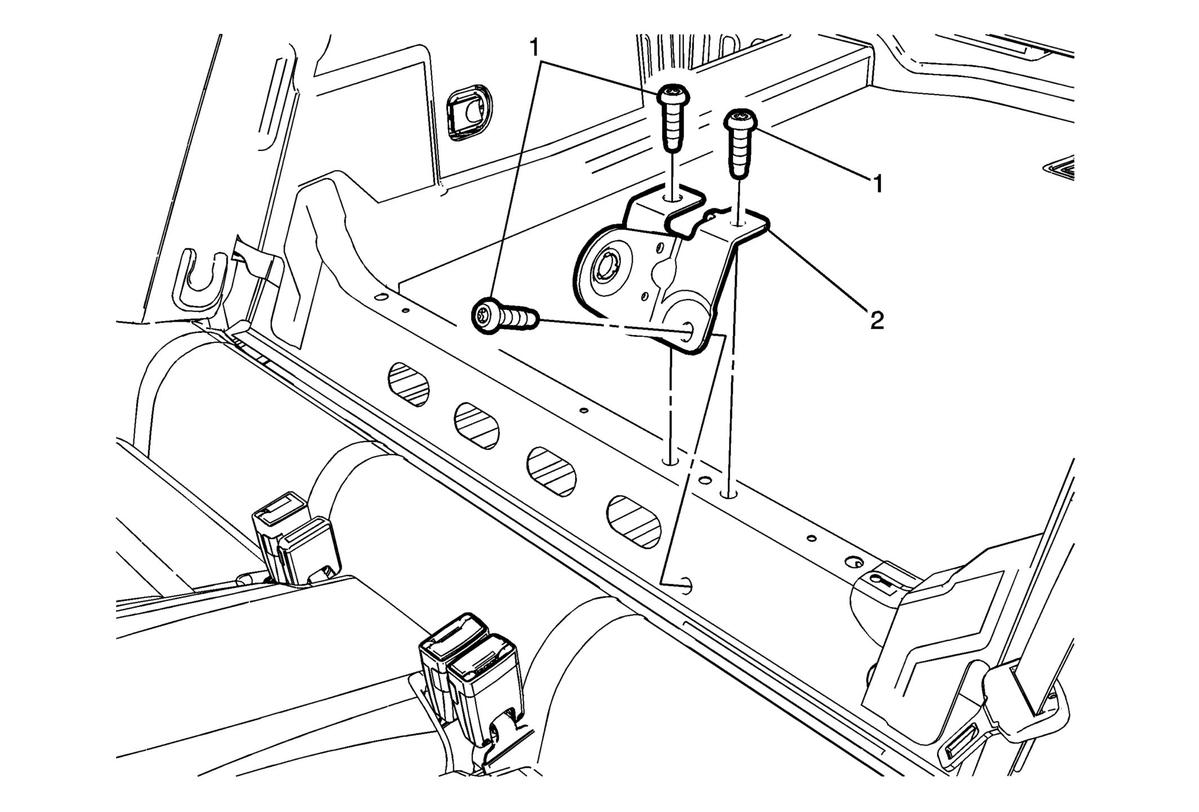

Fig 1: Rear Seat Back Cushion Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove both rear seat back cushions. Refer to Rear Seat Back Cushion Removal and Installation (40% Seat with AM9) Rear Seat Back Cushion Removal and Installation (60% Seat with AM9) Rear Seat Back Cushion Removal and Installation (without AM9) . Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement
1	Rear Seat Back Cushion Hinge Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Back Cushion Hinge

Callout

Component Name

Preliminary Procedures

Remove both rear seat back cushions. Refer to Rear Seat Back Cushion Removal and Installation (40% Seat with AM9) Rear Seat Back Cushion Removal and Installation (60% Seat with AM9) Rear Seat Back Cushion Removal and Installation (without AM9) .
Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement

Rear Seat Back Cushion Hinge Fastener (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
45 N.m (33 lb ft)

Rear Seat Back Cushion Hinge
