Rear Seat Back Cushion Frame Replacement (without AM9)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

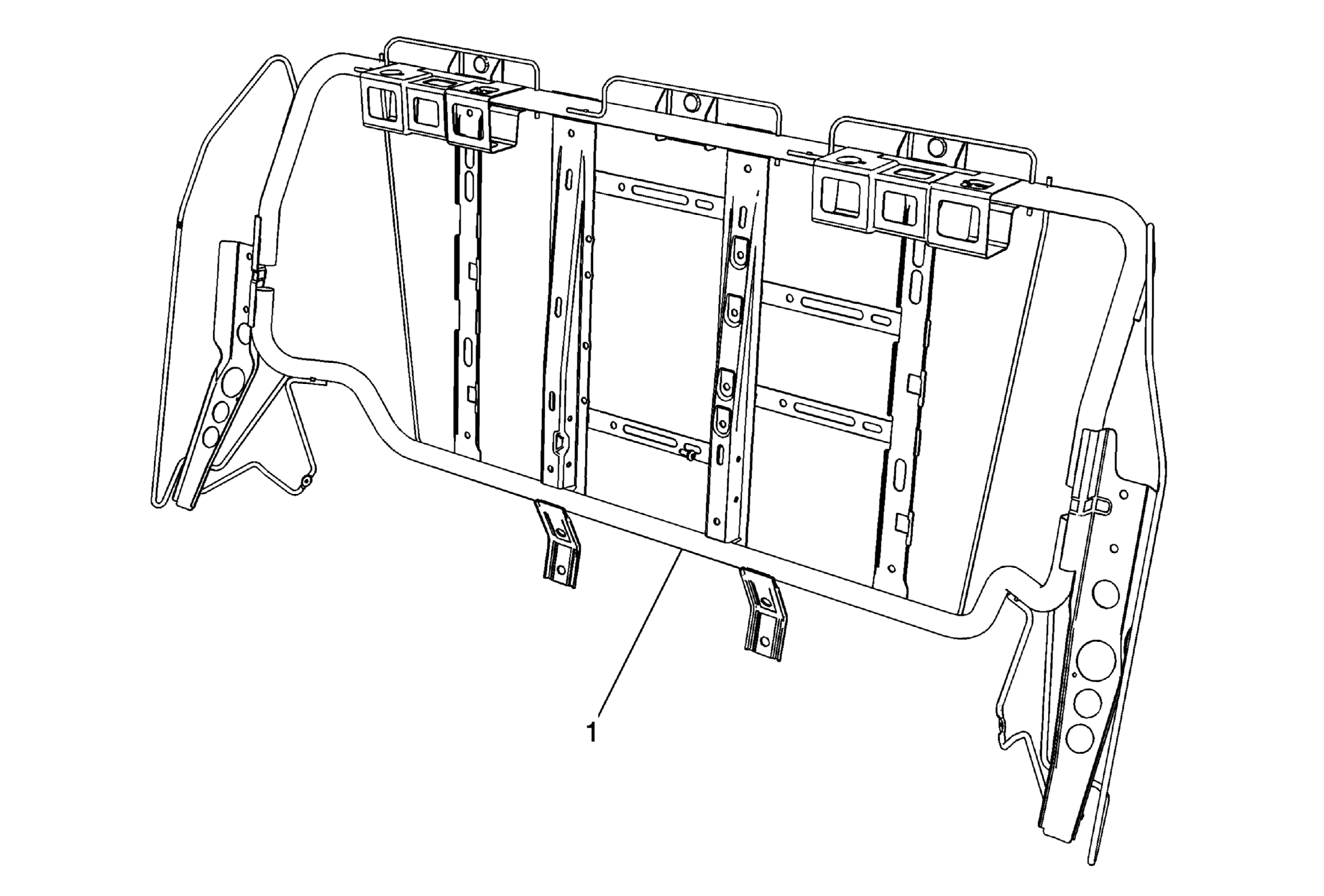

Fig 1: Rear Seat Back Cushion Frame (without AM9)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Sedan) Rear Seat Cushion Removal and Installation (Coupe) . Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (without AM9) .
1	Rear Seat Back Cushion Frame Procedure If replacing the rear seat back frame, transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Sedan) Rear Seat Cushion Removal and Installation (Coupe) .
Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (without AM9) .

Rear Seat Back Cushion Frame
Procedure
If replacing the rear seat back frame, transfer components as necessary.
