Rear Seat Armrest Closeout Panel Replacement (without AM9, with A6E)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

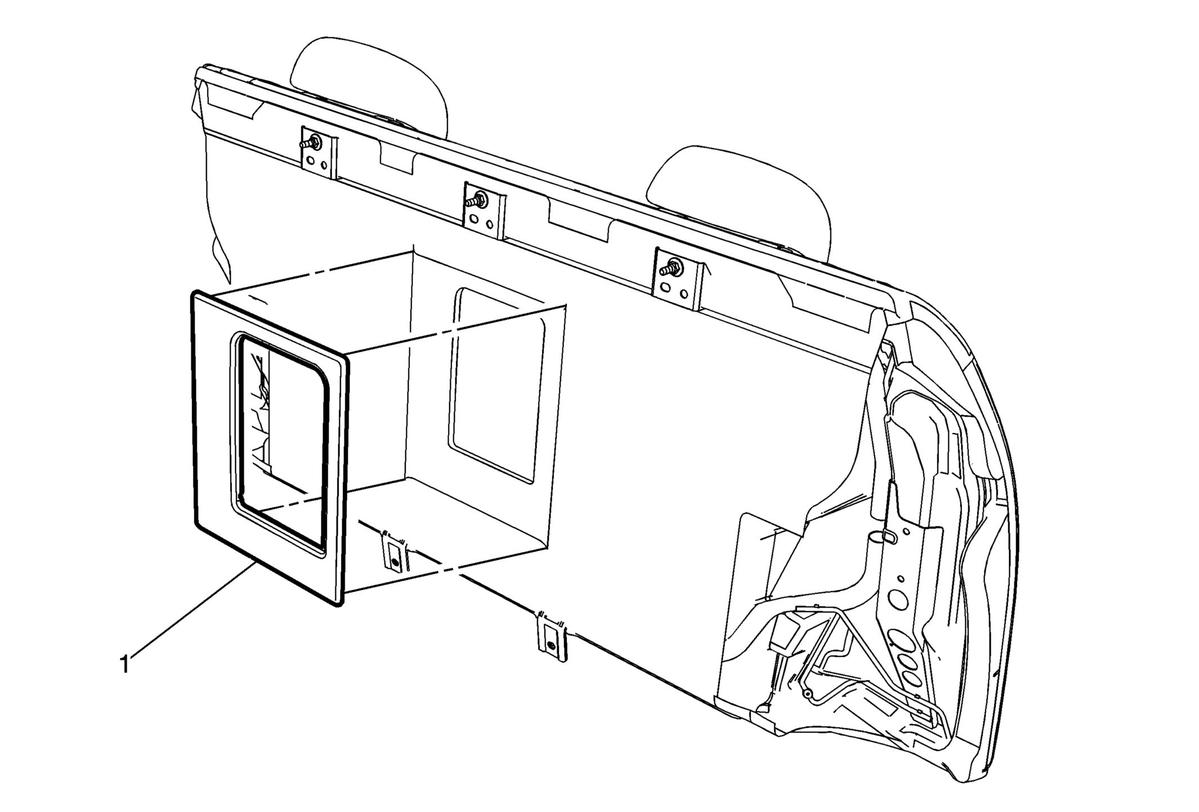

Fig 1: Rear Seat Armrest Closeout Panel (without AM9, with A6E)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Sedan) Rear Seat Cushion Removal and Installation (Coupe) . Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (without AM9) .
1	Rear Seat Armrest Closeout Panel Procedure Use a flat-bladed plastic trim tool to remove the finish cover from the rear seat back cushion panel.

Callout

Component Name

Preliminary Procedures

Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Sedan) Rear Seat Cushion Removal and Installation (Coupe) .
Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (without AM9) .

Rear Seat Armrest Closeout Panel
Procedure
Use a flat-bladed plastic trim tool to remove the finish cover from the rear seat back cushion panel.
