Front Seat Head Restraint Guide Bezel Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

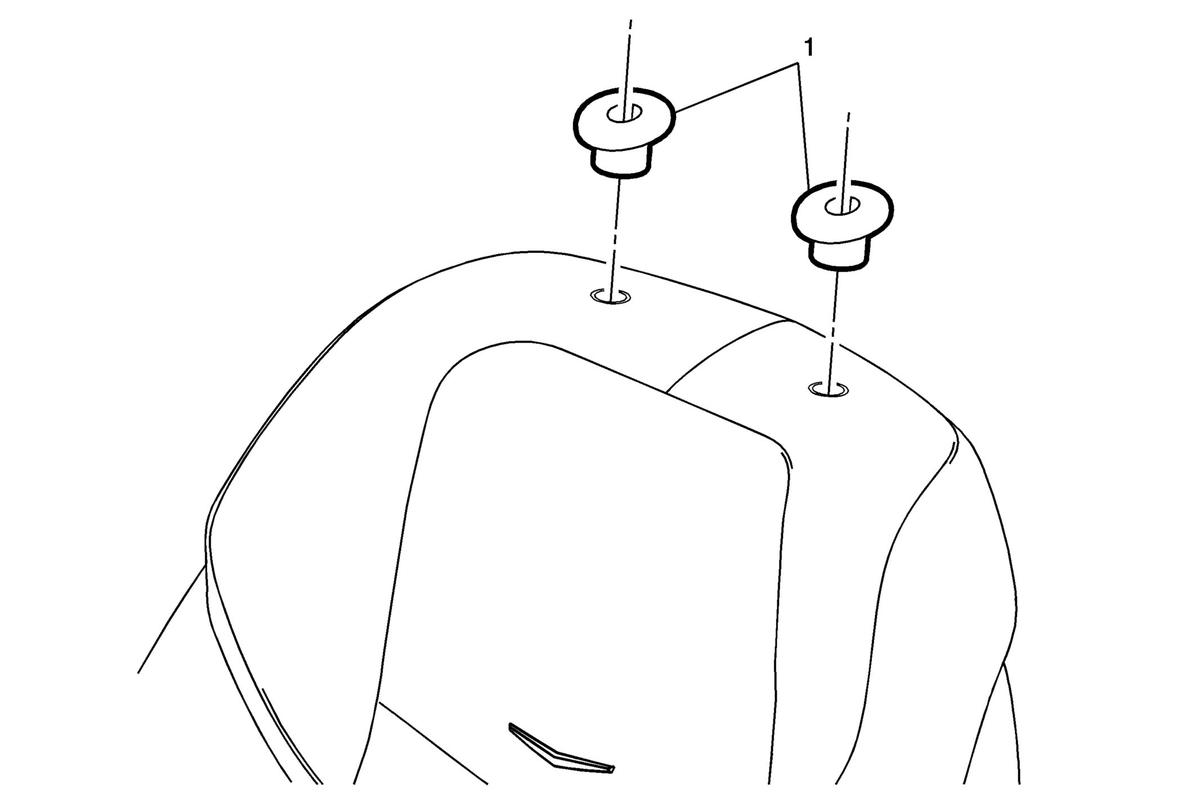

Fig 1: Front Seat Head Restraint Guide Bezels

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement (without W2E) Driver or Passenger Seat Head Restraint Replacement (with W2E)
1	Front Seat Head Restraint Guide Bezel (Qty: 2) Procedure Twist the bezel counter clockwise and push the bezel upward on the head restraint shaft. Remove the head restraint bezel from the head restraint shaft.

Callout

Component Name

Preliminary Procedure
Remove the driver or passenger seat head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement (without W2E) Driver or Passenger Seat Head Restraint Replacement (with W2E)

Front Seat Head Restraint Guide Bezel (Qty: 2)

Procedure

Twist the bezel counter clockwise and push the bezel upward on the head restraint shaft.
Remove the head restraint bezel from the head restraint shaft.
