Front Seat Cushion Support Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

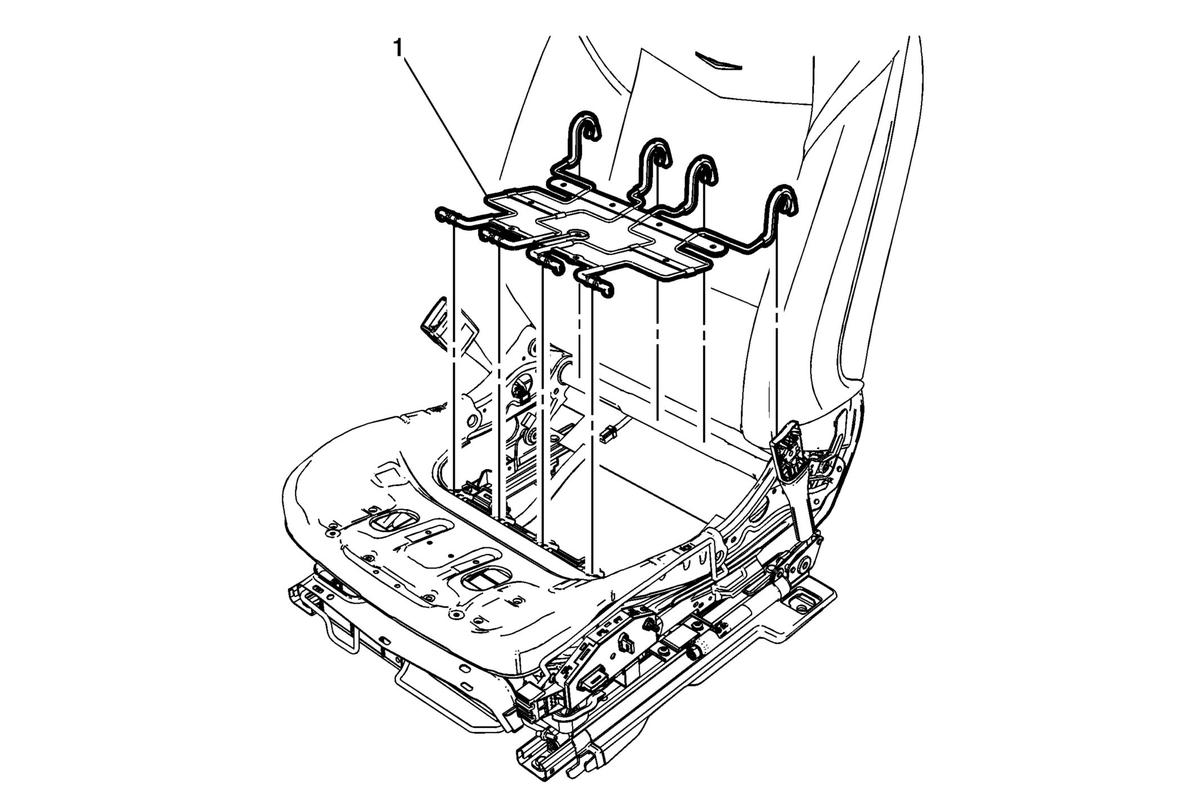

Fig 1: Front Seat Cushion Support

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning Preliminary Procedure Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement (Sedan with AHE) Front Seat Cushion Cover and Pad Replacement (Sedan without AHE) Front Seat Cushion Cover and Pad Replacement (Coupe) Front Seat Cushion Cover and Pad Replacement (with W2E) Program the inflatable restraint passenger presence system after replacement. Refer to Control Module References .
1	Front Seat Cushion Support Procedure Disconnect electrical connectors.

Callout

Component Name

WARNING:

Refer to SIR Warning

Preliminary Procedure

Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation
Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement (Sedan with AHE) Front Seat Cushion Cover and Pad Replacement (Sedan without AHE) Front Seat Cushion Cover and Pad Replacement (Coupe) Front Seat Cushion Cover and Pad Replacement (with W2E)
Program the inflatable restraint passenger presence system after replacement. Refer to Control Module References .

Front Seat Cushion Support
Procedure
Disconnect electrical connectors.
