Driver or Passenger Seat Inner Adjuster Rear Finish Cover Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

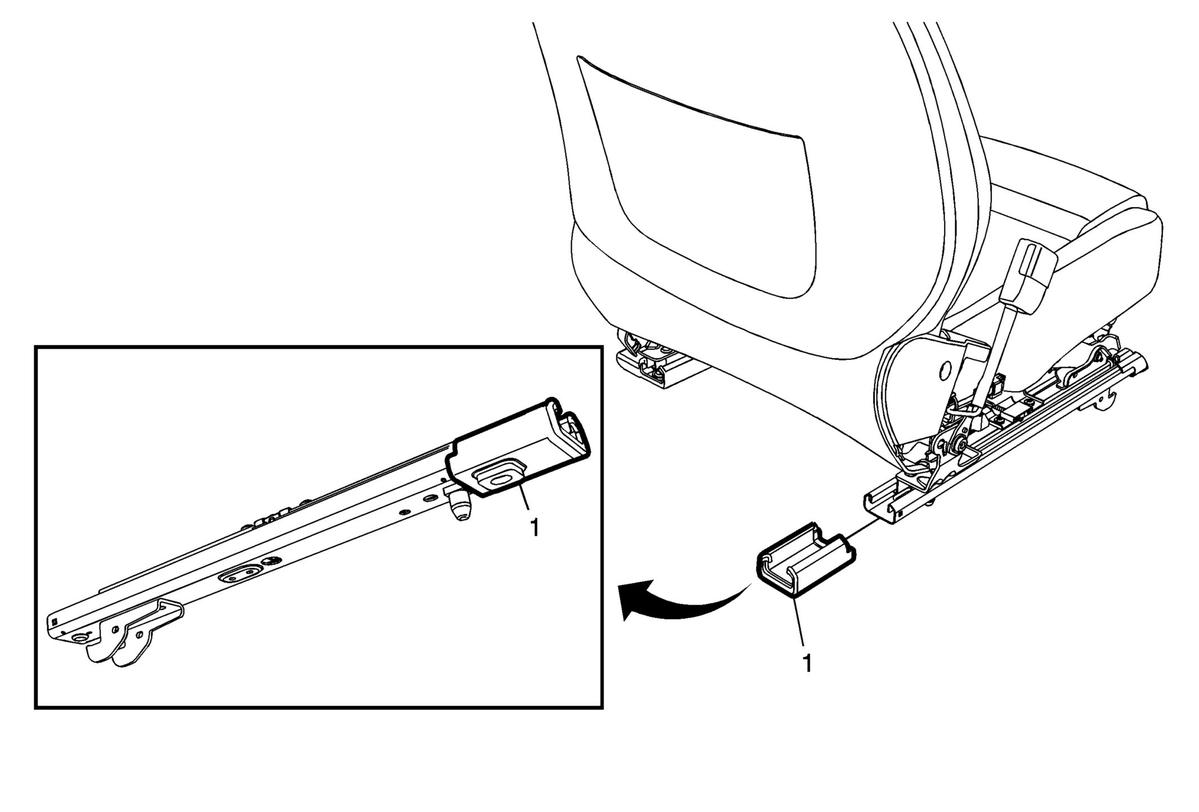

Fig 1: Driver or Passenger Seat Inner Adjuster Rear Finish Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Driver or Passenger Seat Inner Adjuster Rear Finish Cover CAUTION: Do not twist the cover during removal. Twisting the cover may cause the component to break. Procedure Adjust the seat to the full forward position to gain access to the rear bolts. Remove the seat bolts and then firmly grasp both sides of the finish cover pulling the sides outward to disengage the top of the cover off of the track. Remove the finish cover by sliding the cover rearward and then pull down on the finish cover to disengage it from the track. For the front seat bolts re-installation torque information. Refer to Driver or Passenger Seat Removal and Installation

Callout

Component Name

Driver or Passenger Seat Inner Adjuster Rear Finish Cover

CAUTION:

Do not twist the cover during removal. Twisting the cover may cause the component to break.

Procedure

Adjust the seat to the full forward position to gain access to the rear bolts.
Remove the seat bolts and then firmly grasp both sides of the finish cover pulling the sides outward to disengage the top of the cover off of the track.
Remove the finish cover by sliding the cover rearward and then pull down on the finish cover to disengage it from the track.
For the front seat bolts re-installation torque information. Refer to Driver or Passenger Seat Removal and Installation
