Driver or Passenger Seat Head Restraint Guide Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the driver or passenger seat head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement (without W2E) Driver or Passenger Seat Head Restraint Replacement (with W2E) . |
|

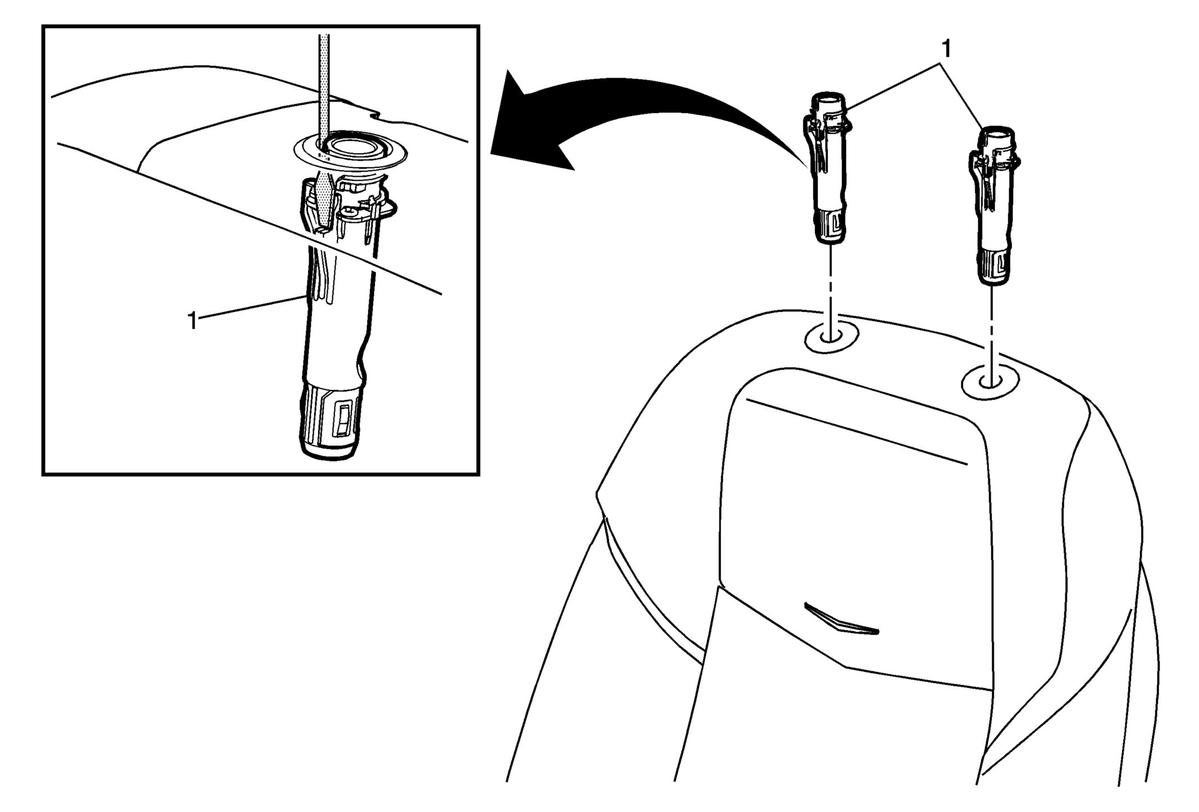

| 1 | Driver or Passenger Seat Head Restraint Guide (Qty: 2) Procedure Using a suitable flat-bladed tool, slide the tool on the outside of the guide until it finds the slot. Then push the plastic slot inward and pull up upward to remove the guide from the seat back frame. |
