Driver or Passenger Seat Cushion Frame Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

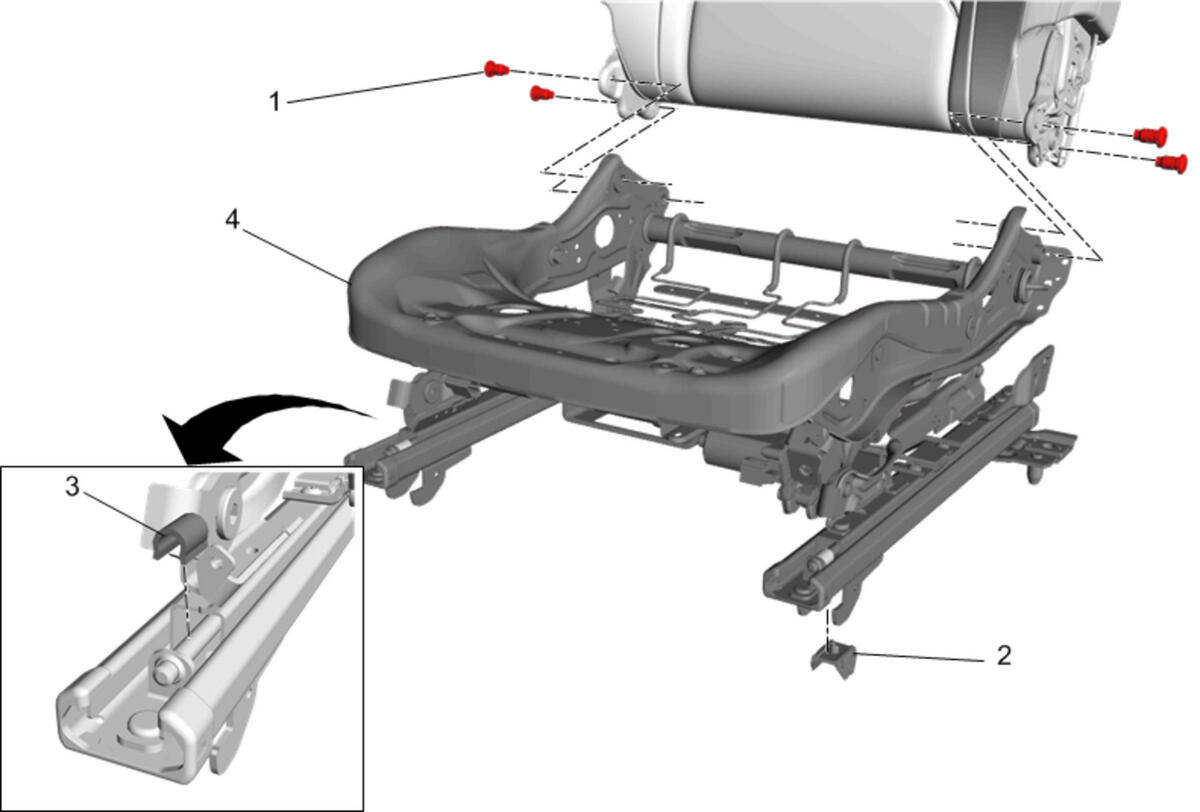

Fig 1: Driver or Passenger Seat Cushion Frame
GM4530740Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

Procedure Refer to Front Seat Cushion Cover and Pad Replacement (Sedan with AHE) Front Seat Cushion Cover and Pad Replacement (Sedan without AHE) Front Seat Cushion Cover and Pad Replacement (Coupe) Front Seat Cushion Cover and Pad Replacement (with W2E)
1 Driver or Passenger Seat Back Frame Fastener (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
55 N.m (41 lb ft)
2 Front Seat Adjuster Front Spacer
Procedure
Installed on the outboard side only.
3 Front Seat Adjuster Stop (Qty: 2)
NOTE:

When replacing the seat cushion frame, ensure the front seat adjuster stops are installed. The frame may need to be adjusted to access the stops.
4 Driver or Passenger Seat Cushion Frame

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
