Driver or Passenger Seat Cushion Frame Front Bracket Replacement (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

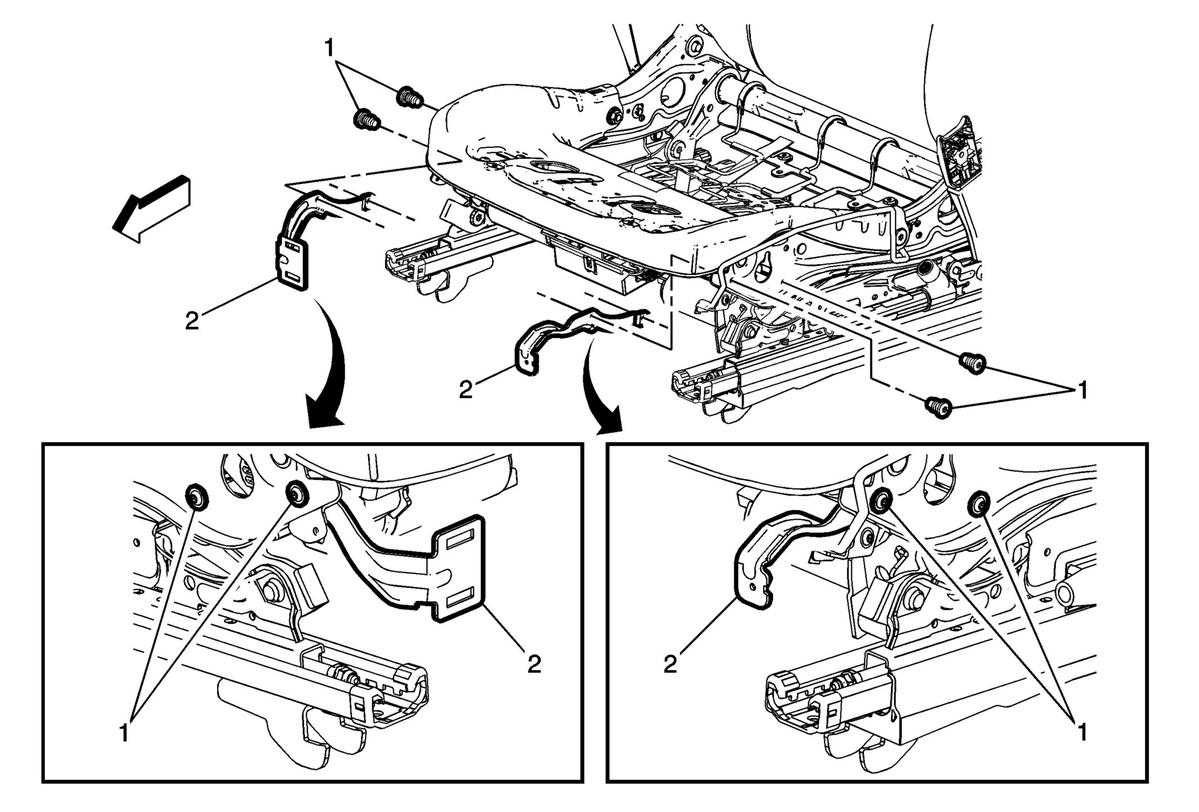

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Remove the driver or passenger seat cushion outer finish panel. Refer to Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Coupe) Driver or Passenger Seat Cushion Outer Finish Panel Replacement (with W2E) .Refer to SIR Warning . |
|
| 1 | Driver or Passenger Seat Cushion Frame Front Bracket Fastener (Qty: 4)
CAUTION:
Refer to Fastener Caution . |
| 2 | Driver or Passenger Seat Cushion Frame Front Bracket |
