Driver or Passenger Seat Back Cushion Frame Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

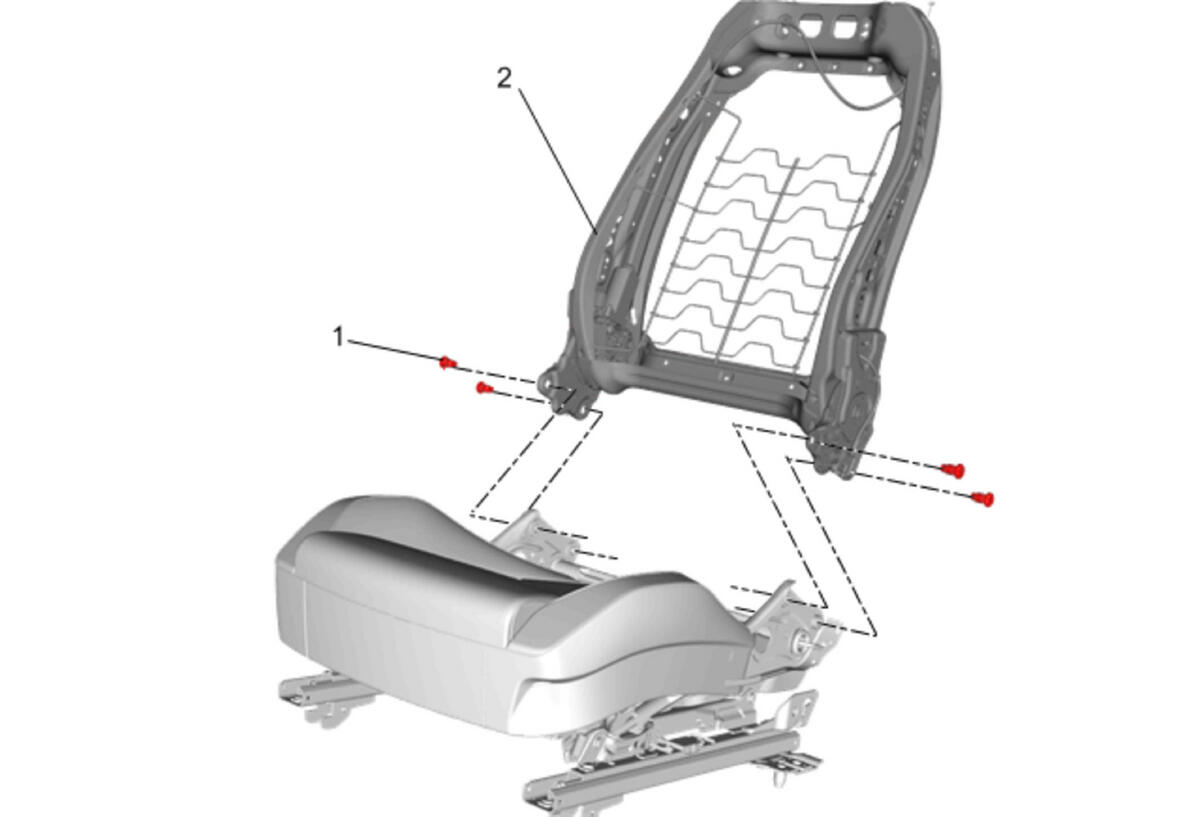

Fig 1: Driver or Passenger Seat Back Cushion Frame
GM4161513Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

Procedure Refer to Driver or Passenger Seat Back Cover and Pad Replacement (Sedan with AHE) Driver or Passenger Seat Back Cover and Pad Replacement (Sedan without AHE) Driver or Passenger Seat Back Cover and Pad Replacement (Coupe with AHE) Driver or Passenger Seat Back Cover and Pad Replacement (Coupe without AHE) Driver or Passenger Seat Back Cover and Pad Replacement (with W2E)
1 Driver or Passenger Seat Back Frame Fastener (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
55 N.m (41 lb ft)
2 Driver or Passenger Seat Back Cushion Frame

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
