Rear Floor Panel Carpet Replacement (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

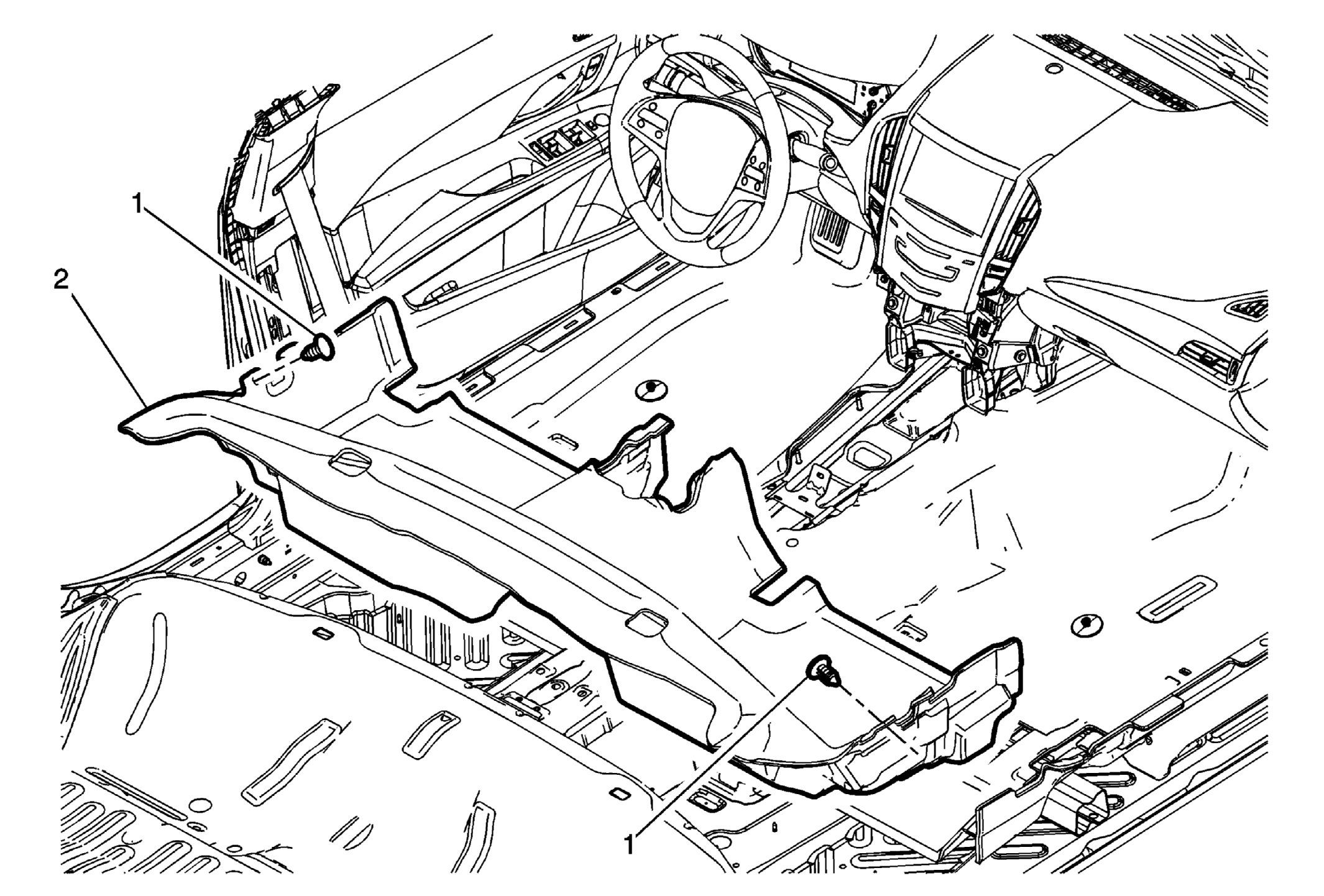

Fig 1: Rear Floor Panel Carpet (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove both the driver and passenger seat. Refer to Driver or Passenger Seat Removal and Installation . Remove rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Sedan) . Remove the front floor lower console rear fasteners only. Refer to Front Floor Lower Console Replacement . Remove the center pillar lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement .
1	Rear Floor Panel Carpet Retainer (Qty: 2)
2	Rear Floor Panel Carpet Procedure Reposition front floor panel carpet as needed. Slightly reposition the rear of the console to allow clearance to remove and install the carpet.

Callout

Component Name

Preliminary Procedures

Remove both the driver and passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
Remove rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Sedan) .
Remove the front floor lower console rear fasteners only. Refer to Front Floor Lower Console Replacement .
Remove the center pillar lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement .

Rear Floor Panel Carpet Retainer (Qty: 2)

Rear Floor Panel Carpet

Procedure

Reposition front floor panel carpet as needed.
Slightly reposition the rear of the console to allow clearance to remove and install the carpet.
