Rear Compartment Floor Panel Trim Support Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

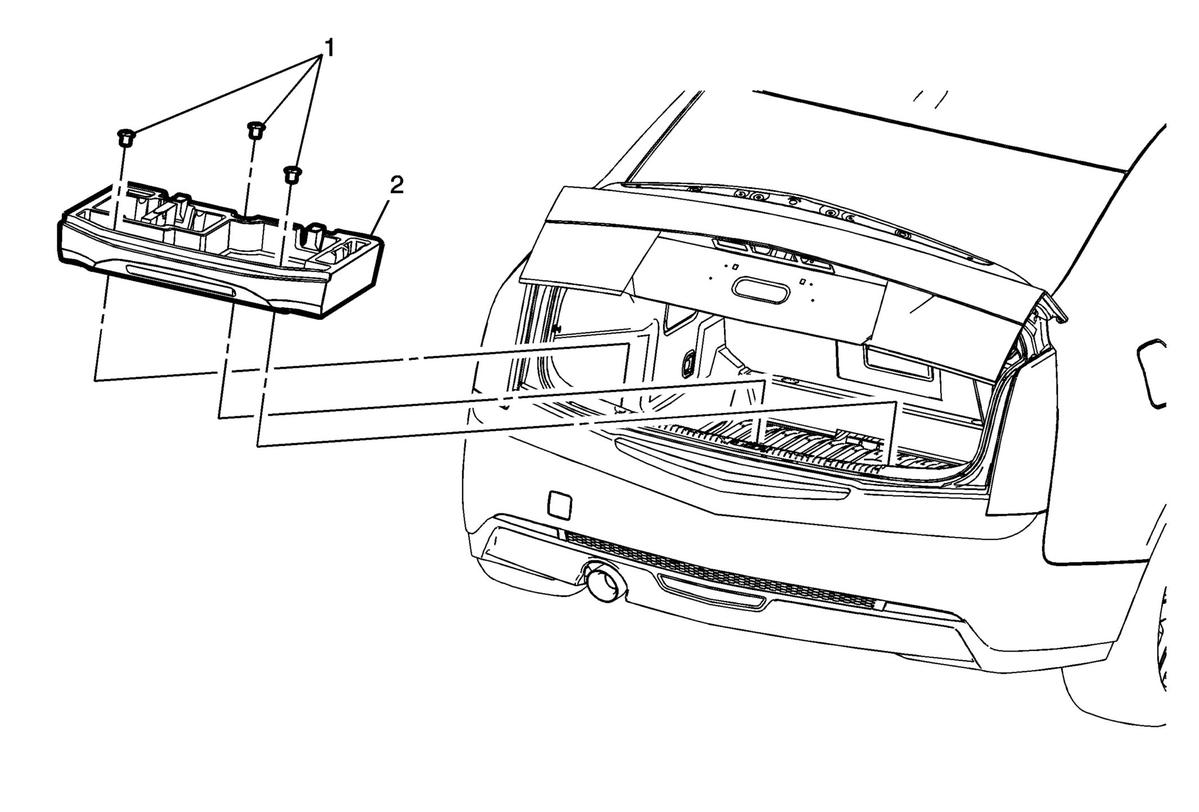

Fig 1: Rear Compartment Floor Panel Trim Support & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment floor panel carpet. Refer to Rear Compartment Floor Panel Carpet Replacement . Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement .
1	Rear Compartment Floor Panel Trim Support Retainer (Qty: 3)
2	Rear Compartment Floor Panel Trim Support Assembly

Callout

Component Name

Preliminary Procedures

Remove the rear compartment floor panel carpet. Refer to Rear Compartment Floor Panel Carpet Replacement .
Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement .

Rear Compartment Floor Panel Trim Support Retainer (Qty: 3)

Rear Compartment Floor Panel Trim Support Assembly
