Driver Footrest Replacement (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

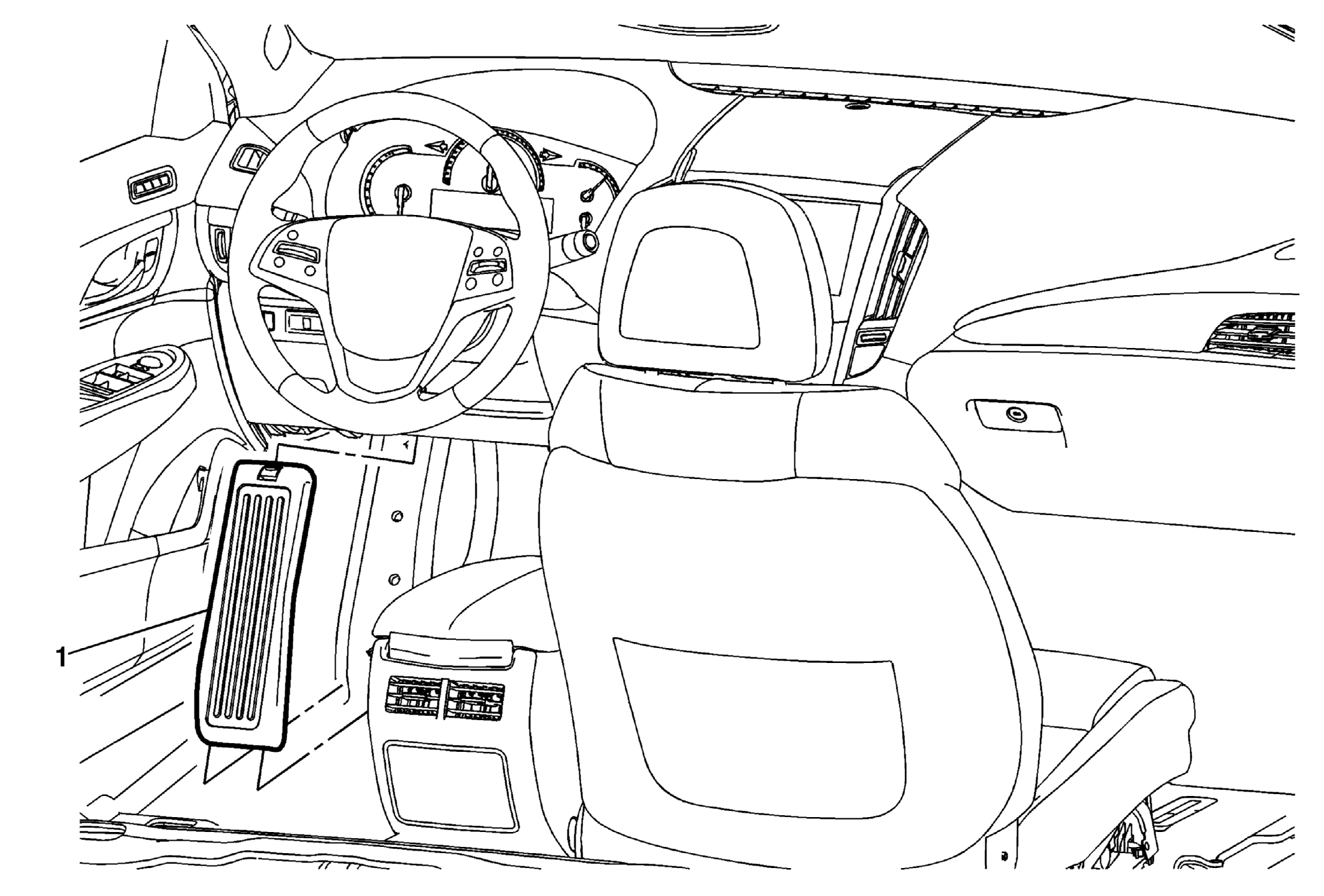

| Callout |
Component Name |
| 1 |
Driver Footrest Procedure
- Remove the CPA lock from the driver footrest retaining tab.
- Use a flat-bladed plastic trim tool in order to release the driver footrest from the driver footrest bracket.
- Pull the footrest out at the top first, then release the bottom.
|
